Senville SENDC Central A-coils in 2, 3 and 5 ton capacities.
Senville SENDC Central A-coils in 2, 3 and 5 ton capacities. - 24000 - Cabinet B - 2 Ton is backordered and will ship as soon as it is back in stock.
Upgrade or complete your central HVAC system with a Senville SENDC Central A-Coil, designed to provide dependable heat-transfer performance while offering the installation flexibility needed for a wide range of residential and light-commercial applications.
Available in 2 Ton, 3 Ton, and 5 Ton capacities, the SENDC A-Coil family is designed for use with compatible Senville central heating and cooling equipment. Multiple sizes and cabinet configurations make it easier to match the coil to the capacity and installation requirements of your system.
Built with a durable aluminum coil, these Senville A-coils support horizontal or vertical multi-position installation, giving installers greater flexibility when working with different mechanical-room, attic, closet, or ductwork layouts.
The SENDC platform is designed around modern R454B refrigerant systems and includes an advanced refrigerant sensing system for added system monitoring. Compatible configurations also support a Wi-Fi-enabled wired controller or integration with select third-party 24V thermostats, providing flexible control options for both homeowners and contractors.
⚙️ Key Features
- Available in 24,000, 36,000, and 60,000 BTU capacities
- 2 Ton, 3 Ton, and 5 Ton options
- Durable aluminum A-coil construction
- Horizontal or vertical multi-position installation
- Designed for R454B central HVAC systems
- Integrated refrigerant sensing technology
- Compatible with select Senville SENDC central system components
- Wi-Fi-enabled wired controller support
- Compatible with select third-party 24V thermostats
- Multiple cabinet sizes available to accommodate different system configurations
Available Models

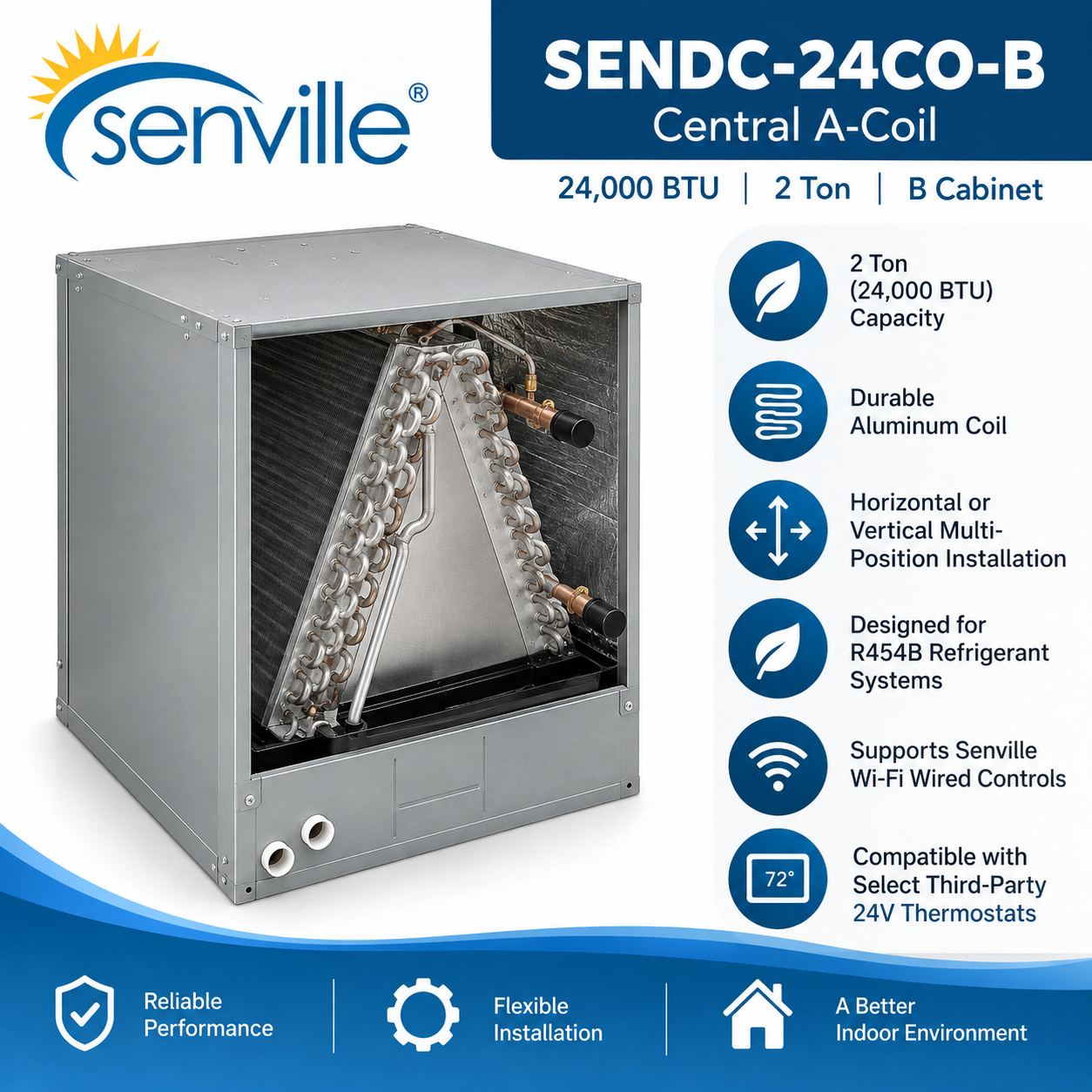

SENDC-24CO-B — 24,000 BTU / 2 Ton
Compact B-cabinet A-coil designed for compatible 2-ton SENDC central systems.

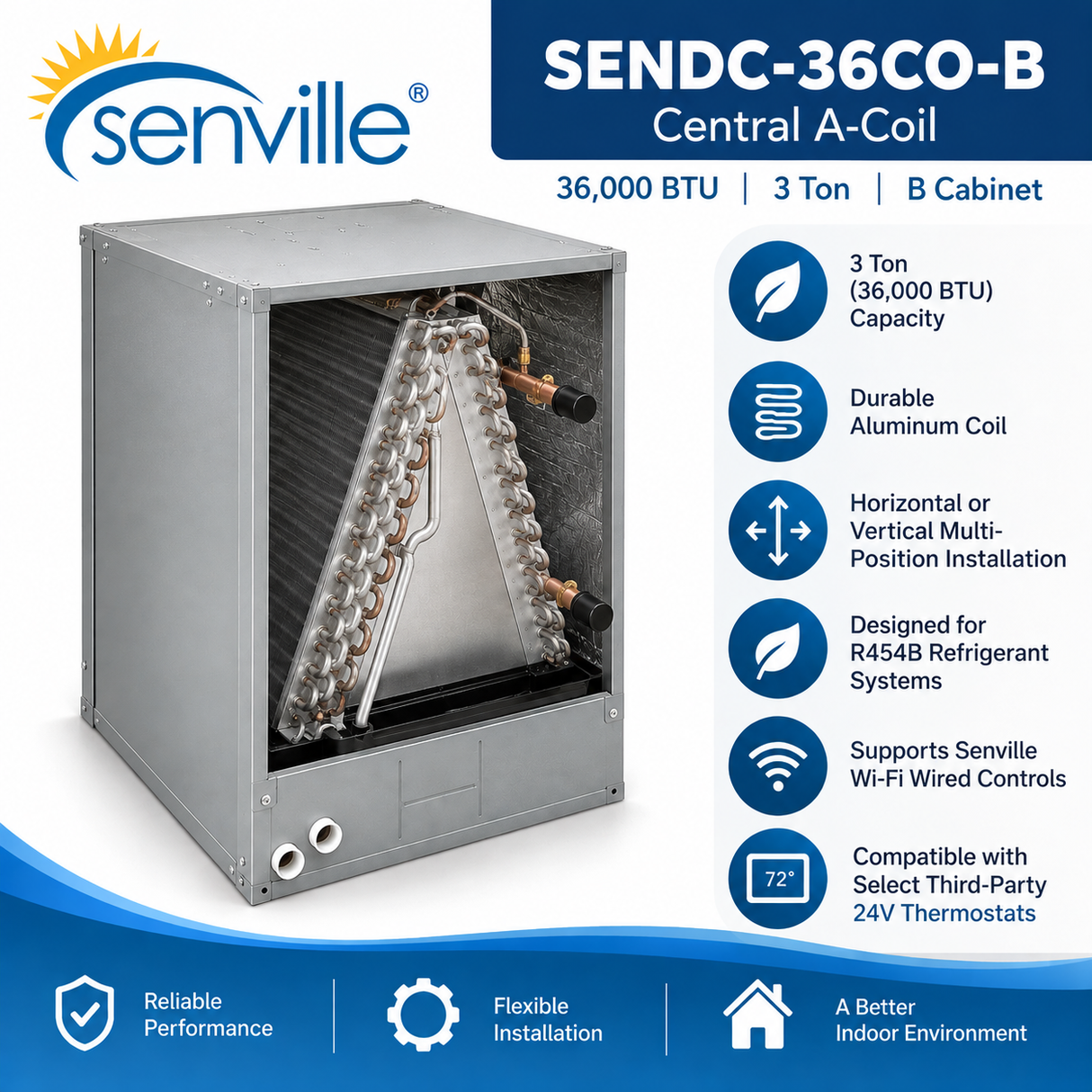

SENDC-36CO-B — 36,000 BTU / 3 Ton
3-ton B-cabinet configuration for installations requiring the narrower cabinet option.

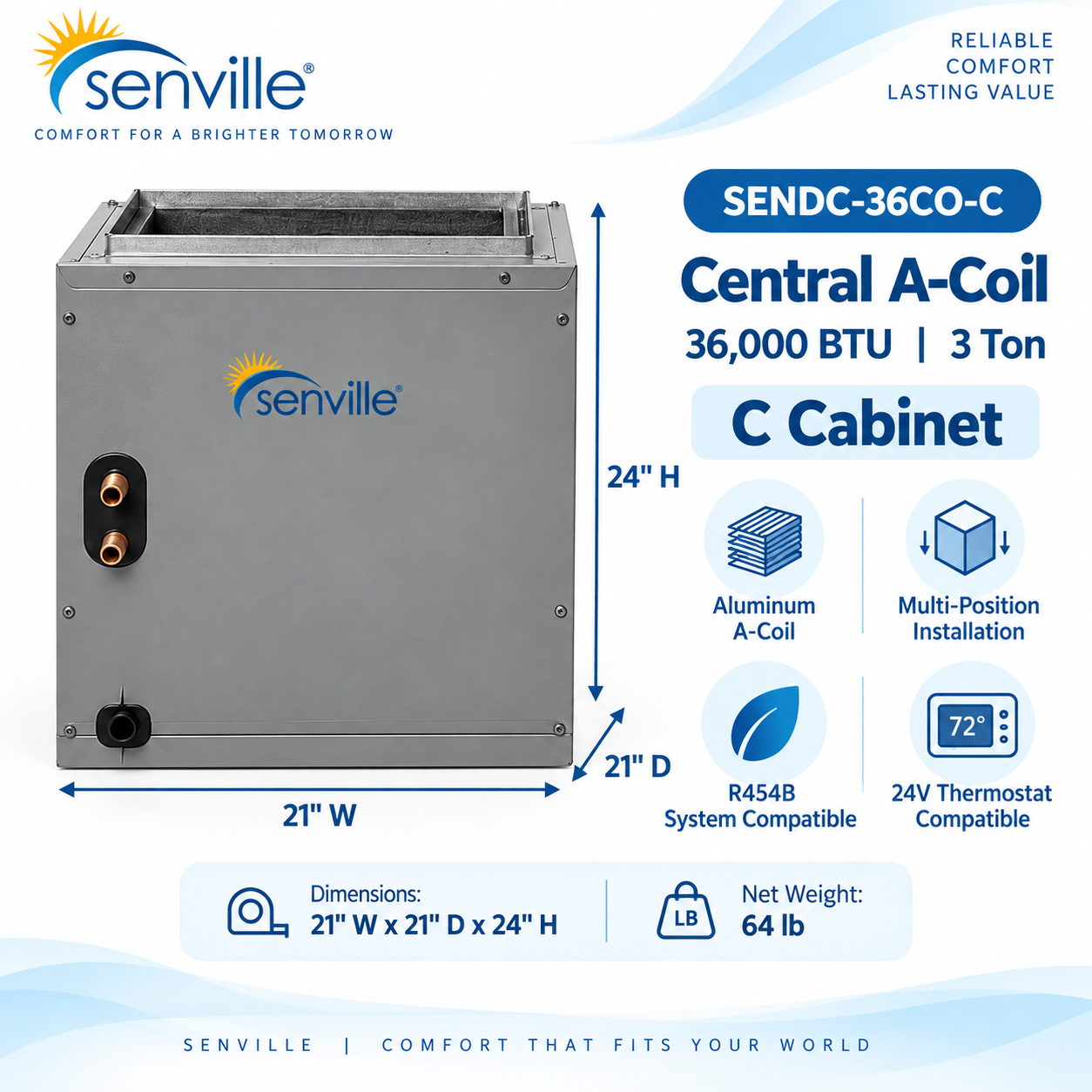

SENDC-36CO-C — 36,000 BTU / 3 Ton
3-ton C-cabinet configuration offering an alternative cabinet size for system and ductwork compatibility.

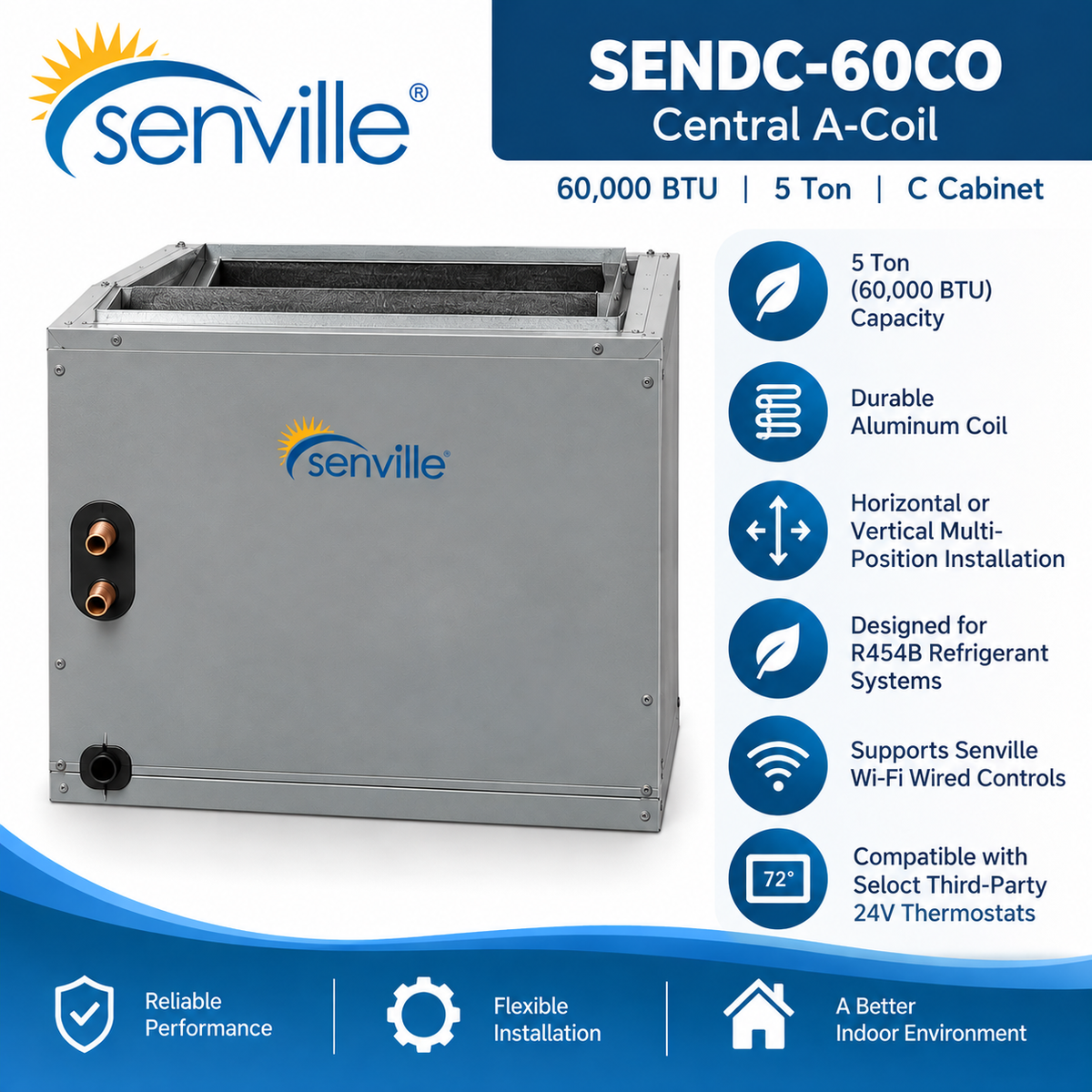

SENDC-60CO — 60,000 BTU / 5 Ton
Large-capacity A-coil for compatible 5-ton SENDC central systems.
Flexible Central HVAC Performance
Whether you're replacing an existing coil or building a new Senville central heat pump system, the SENDC Central A-Coil family provides multiple capacity and cabinet options in one flexible product line. Select the model that matches your system capacity and installation requirements for a clean, compatible central HVAC setup.
Always verify indoor and outdoor equipment compatibility before installation.
Product Highlights
- 15,000 BTU heating and cooling
- High-efficiency 23.5 SEER2
- Current R-454B AURA platform
- Cold-climate heating capability
- Indoor and outdoor equipment included
- Four installation configurations
- Choose no line set, 16 ft, 25 ft, or 50 ft
- Inverter-driven ductless comfort
- Designed for single-zone residential applications
Technical Identity
| SKU | Product Dimensions | Net Weight |
|---|---|---|
SENDC-24CO-B |
17.5 × 21 × 18 in | 42 lb |
SENDC-36CO-B |
17.5 × 21 × 23.5 in | 59.5 lb |
SENDC-36CO-C |
21 × 21 × 24 in | 64 lb |
SENDC-60CO |
21-5/8 × 21-1/2 × 27-3/4 in | 97 lb |
⚙️Technical Documents:
Senville SENDC Central A-coils in 2, 3 and 5 ton capacities.
