Senville AURA 28,000 BTU Dual-Zone Mini Split | 12K + 12K
Senville AURA 28,000 BTU Dual-Zone Mini Split | 12K + 12K - 12000/12000 / 16 Ft is backordered and will ship as soon as it is back in stock.
Product availability changes quickly. Contact our customer service to confirm availability and lead time before purchasing. Email support@plumbestore.com or call 888-615-0755.

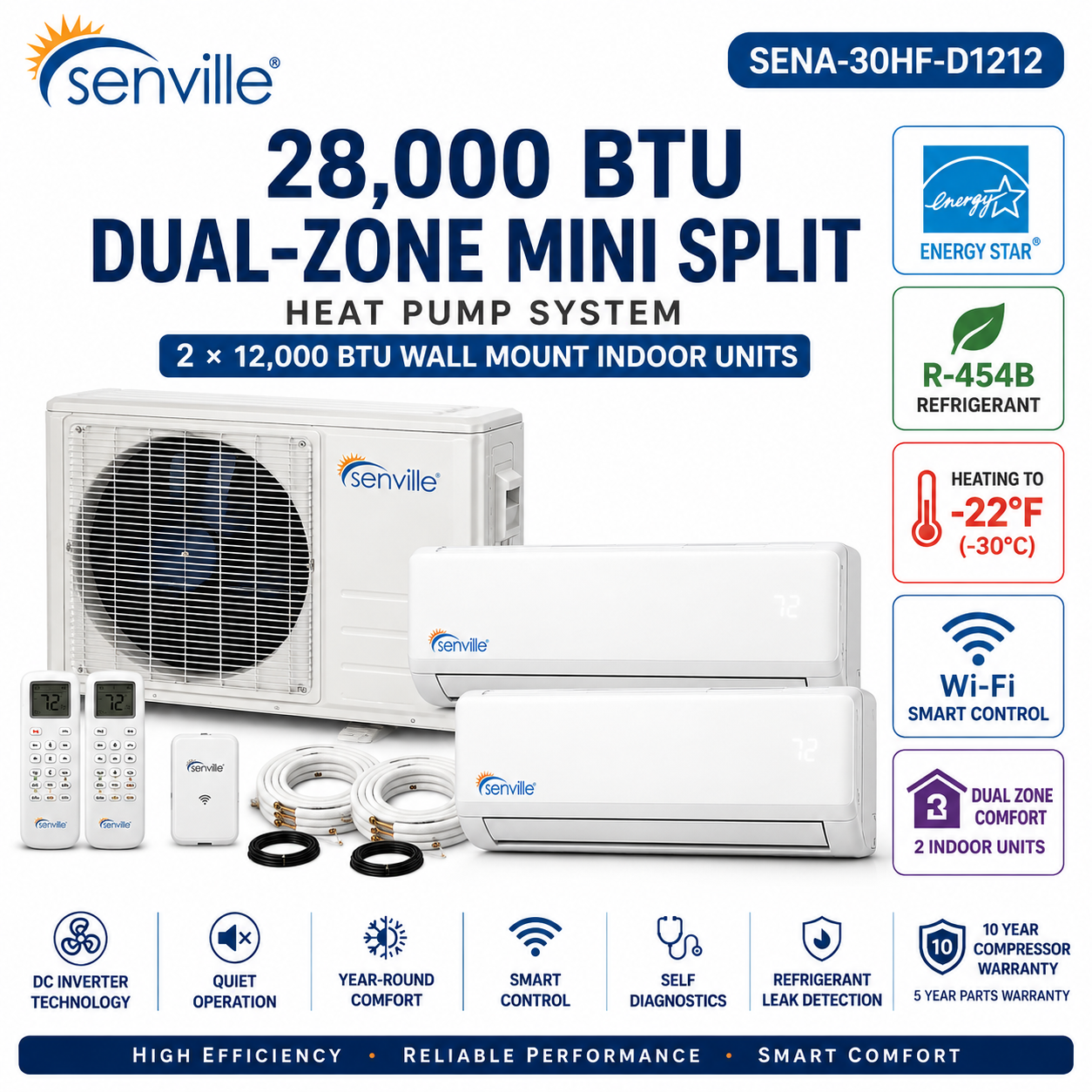

The Senville AURA SENA-30HF-D1212 28,000 BTU Dual-Zone Mini Split Air Conditioner and Heat Pump provides heating and cooling for two separate rooms from one outdoor condenser. This package includes two 12,000 BTU wall-mounted indoor units and two 16-ft installation kits.
Inverter technology adjusts operation to changing comfort demand. With a published family rating of up to 23 SEER2 and heating operation down to -22°F (-30°C), the AURA system supports year-round comfort. Senville advertises ENERGY STAR certification; certified performance depends on the selected indoor and outdoor equipment match.
Each zone offers separate temperature settings. All operating indoor units share the same heating or cooling mode. Alexa-compatible connectivity and wireless remotes provide convenient control. The system uses R-454B refrigerant and operates on 208/230V, single-phase power.
The package includes one SENA-28HF-MOA outdoor condenser, two wall-mounted indoor units, wireless remotes, an Alexa USB kit, indoor-to-outdoor wiring, manuals and two 16-ft kits. Professional installation is required.
Key Features
| Feature | Family Detail |
|---|---|
| System Type | Dual-Zone Ductless Mini Split Air Conditioner and Heat Pump |
| Product Family | SENA-30HF/D |
| Outdoor Model | SENA-28HF-MOA |
| System Capacity Class | 28,000 BTU |
| Included Zones | 2 independently controlled indoor zones |
| Indoor Combinations | 12K + 12K |
| Cooling Efficiency | Up to 23 SEER2; certified performance depends on equipment combination |
| ENERGY STAR | Manufacturer-advertised certification; confirm selected equipment match |
| Heating and Cooling | Year-round inverter heat-pump operation |
| Cold-Climate Heating | Operation down to -22°F (-30°C) |
| Smart Controls | Alexa-compatible connectivity and wireless remotes |
| Zone Control | Separate temperature settings; operating zones share heating or cooling mode |
| Installation Kits | Two 16-ft kits included |
| Refrigerant | R-454B |
| Factory Pre-Charge | 100 ft combined, per current manufacturer listing |
| Installation | Professional installation required |
| Warranty | 10-year compressor / 5-year parts, subject to manufacturer terms |
Included System Configuration
| Component | Package Detail |
|---|---|
| System SKU | SENA-30HF-D1212 |
| Outdoor Condenser | One SENA-28HF-MOA |
| Indoor Units | Two 12,000 BTU wall-mounted units |
| Zone Combination | 12K + 12K |
| Installation Kits | Two 16-ft kits |
Technical Specifications
| Technical Specification | SENA-30HF/D Family |
|---|---|
| Outdoor Model | SENA-28HF-MOA |
| Nominal System Class | 28,000 BTU |
| Packaged Indoor Zones | 2 |
| Outdoor Platform Supported Zones | 2-4, per manufacturer listing |
| Rated Cooling Capacity | 27,000 BTU/h |
| Cooling Capacity Range | 7,200-37,000 BTU/h |
| Cooling Input Range | 500-3,620 W |
| Cooling Current Range | 4-16 A |
| Rated Heating Capacity | 27,000 BTU/h |
| Heating Capacity Range | 8,400-36,000 BTU/h |
| Heating Input Range | 500-3,400 W |
| Heating Current Range | 4-15 A |
| Cooling Rated Current | 11 A |
| Cooling Input | 2,240 W |
| Heating Rated Current | 10.5 A |
| Heating Input | 2,200 W |
| Connection Wiring (Manufacturer Listing) | 14*4 AWG; installer must confirm application |
| SEER2 | 23 (published family rating) |
| EER2 | 12.5 |
| HSPF2-4 | 10.5 |
| HSPF2-5 | 8.5 |
| COP | 3.8 W/W |
| Power Supply | 208/230V, 1Ph, 60Hz |
| Voltage Range | 187-253V |
| Minimum Circuit Ampacity | 30 A |
| Maximum Fuse (Manufacturer Listing) | 35 A |
| Minimum Outdoor Heating Temperature | -22°F / -30°C |
| Refrigerant | R-454B |
| Factory Refrigerant Charge | 120.61 oz |
| Refrigerant Pre-Charge Length | 100 ft combined, per current manufacturer listing |
| Outdoor Airflow | 2,148.4 CFM |
| Outdoor Noise Level | 61 dB |
| Outdoor Dimensions (W x D x H) | 37.24 x 16.14 x 31.89 in |
| Outdoor Weight | 168.43 lb |
| Thermostat / Control | Wireless remote control; Alexa enabled |
| Included Installation Kits | Two 16-ft kits |
| Warranty | 10 Years Compressor / 5 Years Parts |
What's Included
- Two 12,000 BTU wall-mounted indoor units
- One SENA-28HF-MOA outdoor condenser
- Wireless remote controls and an Alexa USB kit
- Two 16-ft installation kits
- Indoor-to-outdoor wiring harness
- Installation and user manuals
Installation and System Requirements
A qualified HVAC professional must confirm room loads, equipment locations, refrigerant piping, electrical supply and condensate drainage. Pressure testing, evacuation and commissioning must follow the supplied installation manual and applicable requirements.
Installation labor and building-specific materials are not included. Have the installer confirm any additional materials or refrigerant needed for the completed installation.
Technical Documents
- SENA-28HF-MOA R-454B Installation Manual
- AURA Multizone Owner's Manual
-
AURA Multizone Service Manual
- Senville Mini Split Sizing Guide
- Senville Product Catalog
- Senville Warranty Information
Warranty: Senville states 10 years of compressor coverage and 5 years of parts coverage, subject to applicable installation, registration, maintenance and warranty conditions. Installation and repair labor are not included in the manufacturer warranty.
