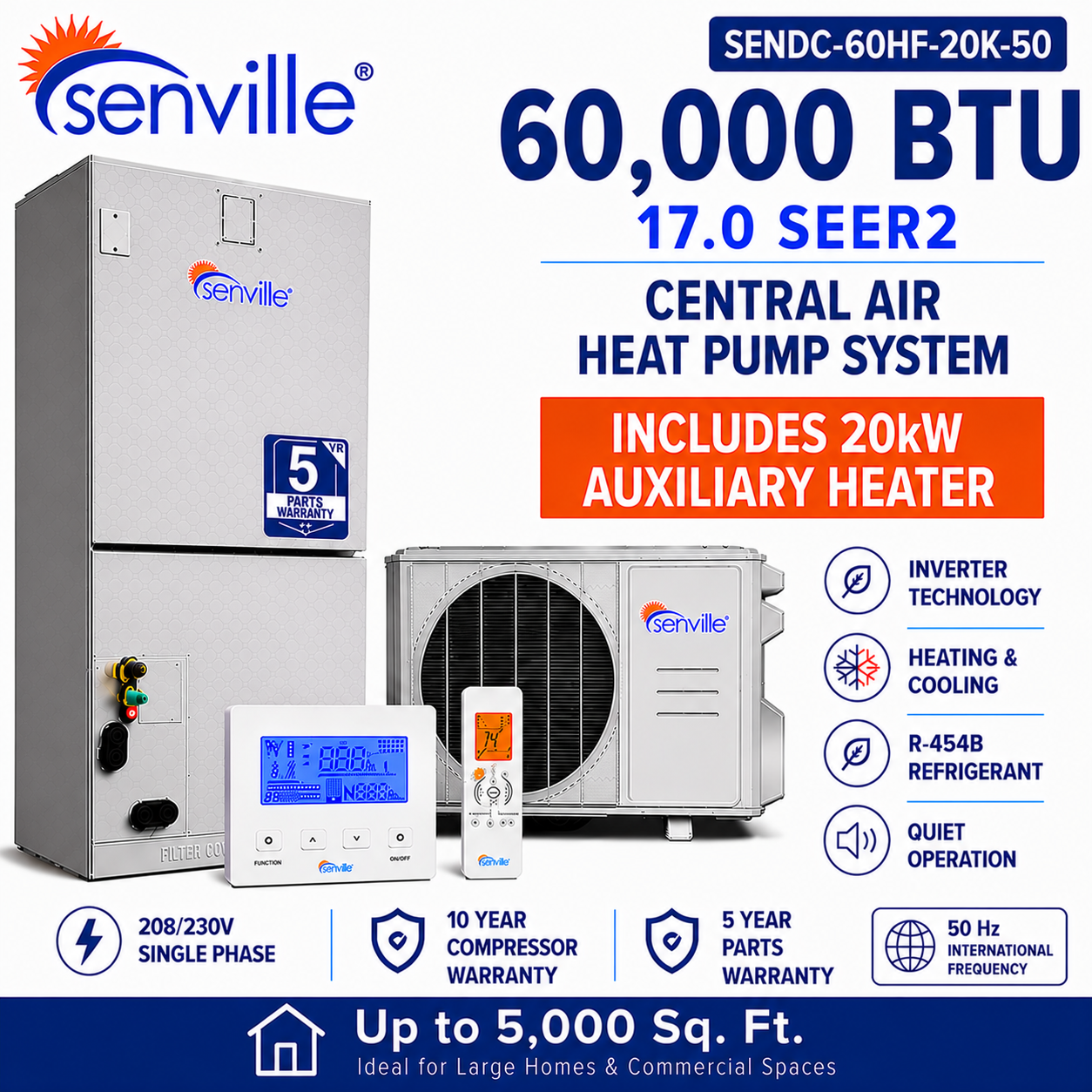

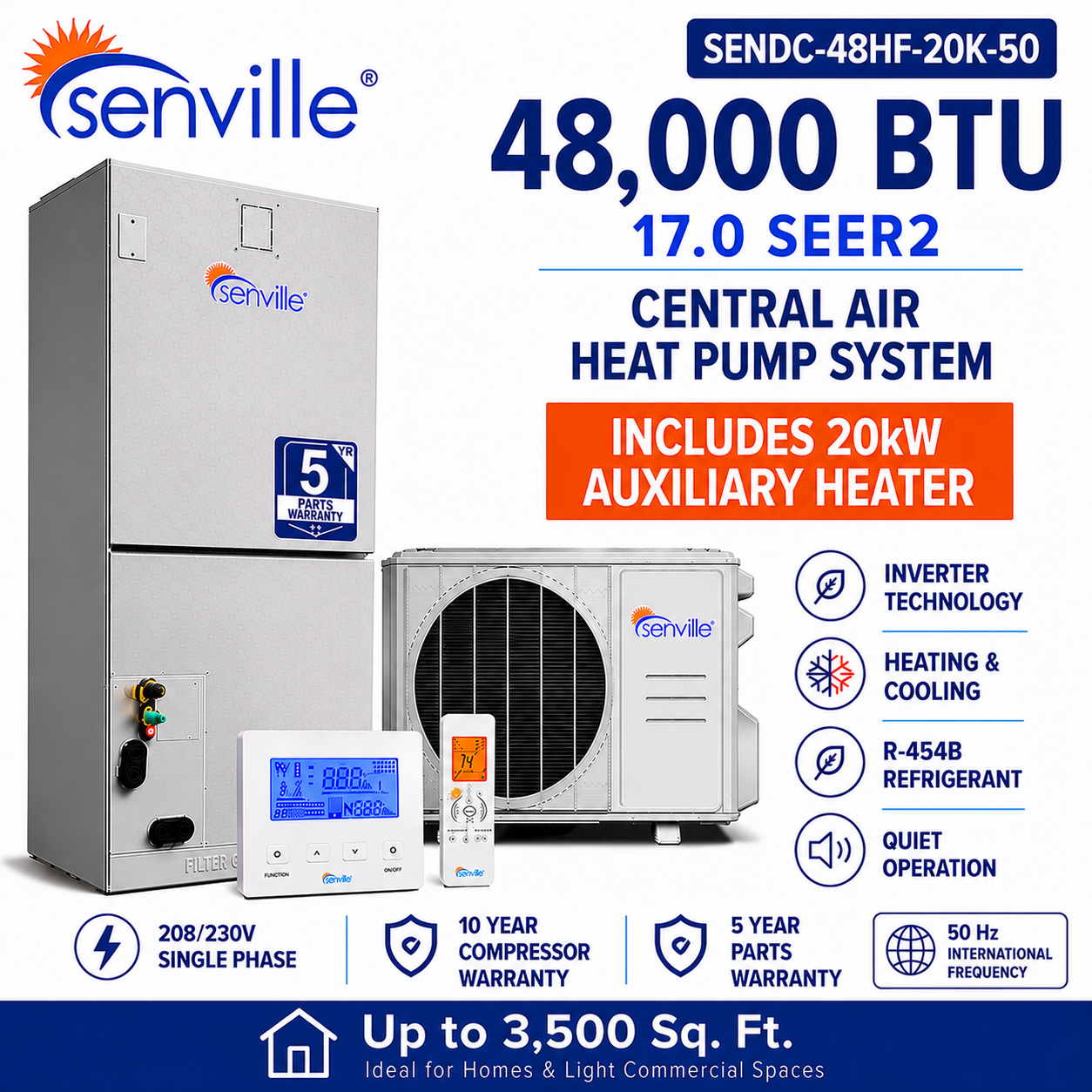

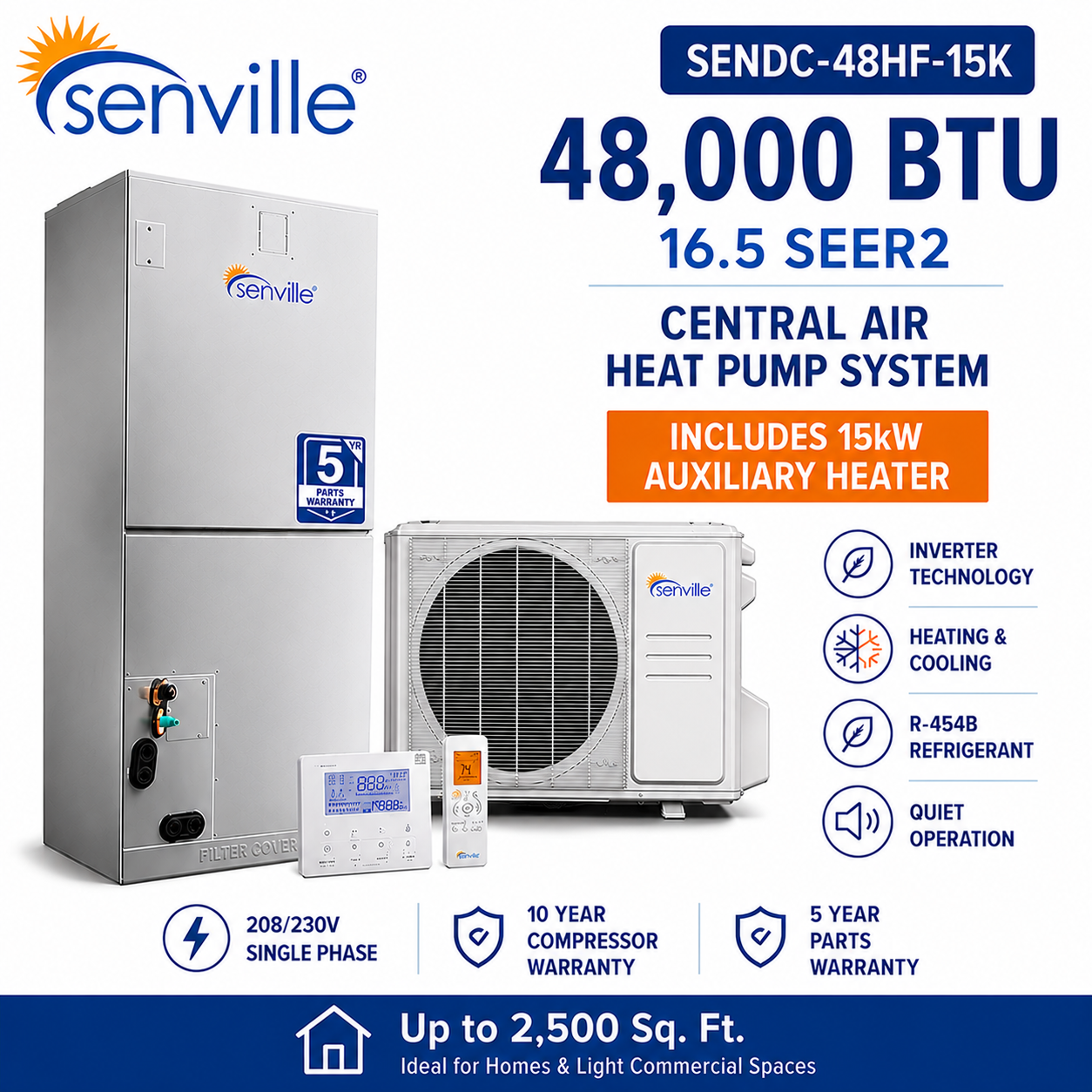

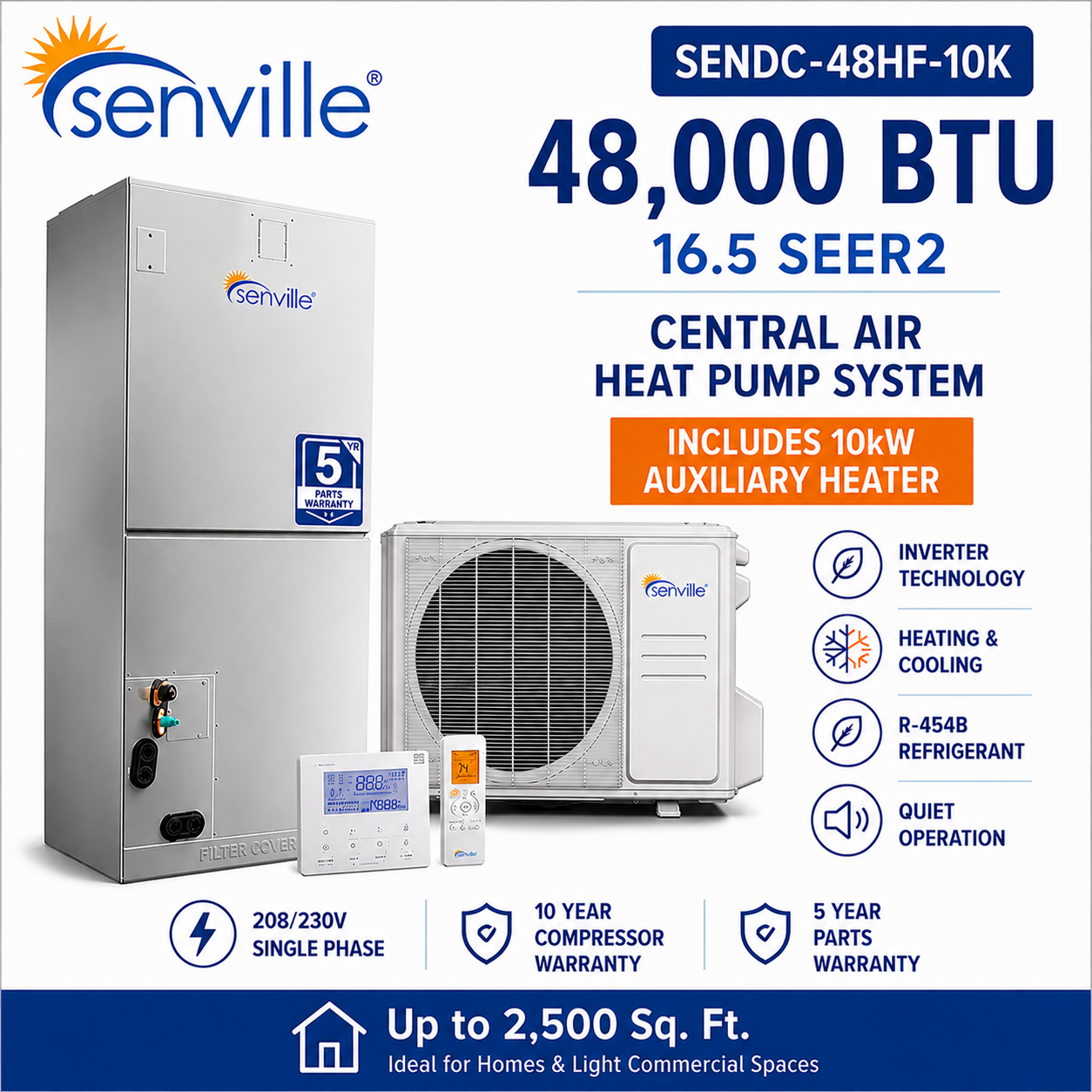

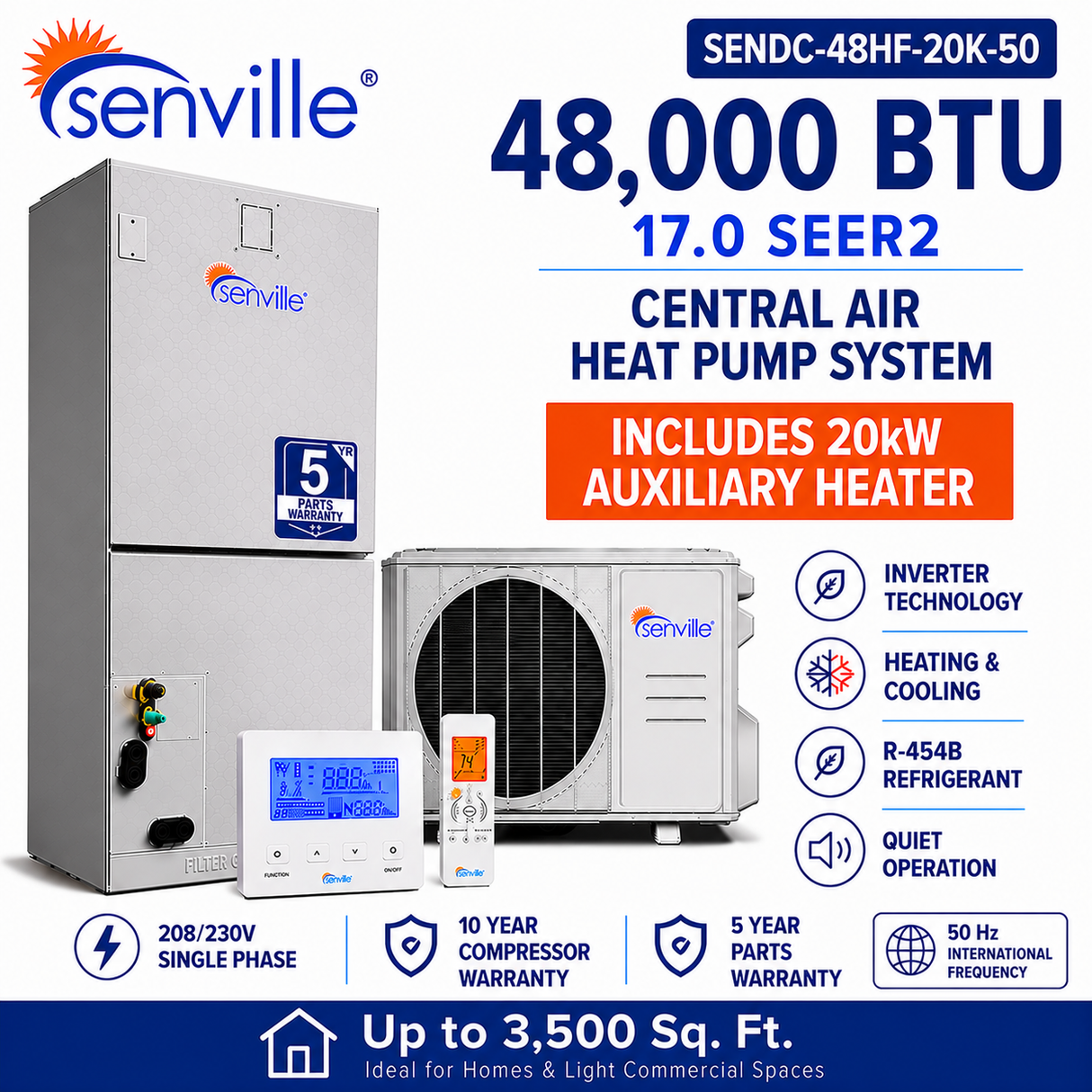

The Senville SENDC Series combines central ducted air conditioning and heat-pump heating with variable-speed inverter technology. This family includes 36,000, 48,000 and 60,000 BTU-class systems for residential and light-commercial ducted applications.
The inverter-driven compressor adjusts system output as heating and cooling demands change. A matching indoor air handler distributes conditioned air through central ductwork, providing whole-building comfort from a coordinated indoor and outdoor system.
These systems use R-454B refrigerant and operate on 208/230V single-phase power. Manufacturer-listed efficiency ratings vary by capacity. Warranty coverage includes 10 years on the compressor and 5 years on parts, subject to Senville’s terms.
Professional sizing and installation are required. A qualified HVAC professional must confirm the building load, ductwork, equipment compatibility, electrical requirements and auxiliary-heater selection.
Key Features
- Central heating and cooling: Matched indoor and outdoor equipment serves a central duct system.
- Variable-speed inverter operation: System output adjusts to changing comfort demands.
- Three capacity classes: 36,000, 48,000 and 60,000 BTU options.
- R-454B refrigerant: Current-generation central heat-pump platform.
- Supplemental heat configurations: Listed 36,000 BTU options include 10-kW and 15-kW auxiliary electric heaters.
- 16-ft installation configuration: The SKUs listed below use the 16-ft installation-kit selection.
- Manufacturer warranty: 10-year compressor and 5-year parts coverage, subject to installation requirements and warranty terms.

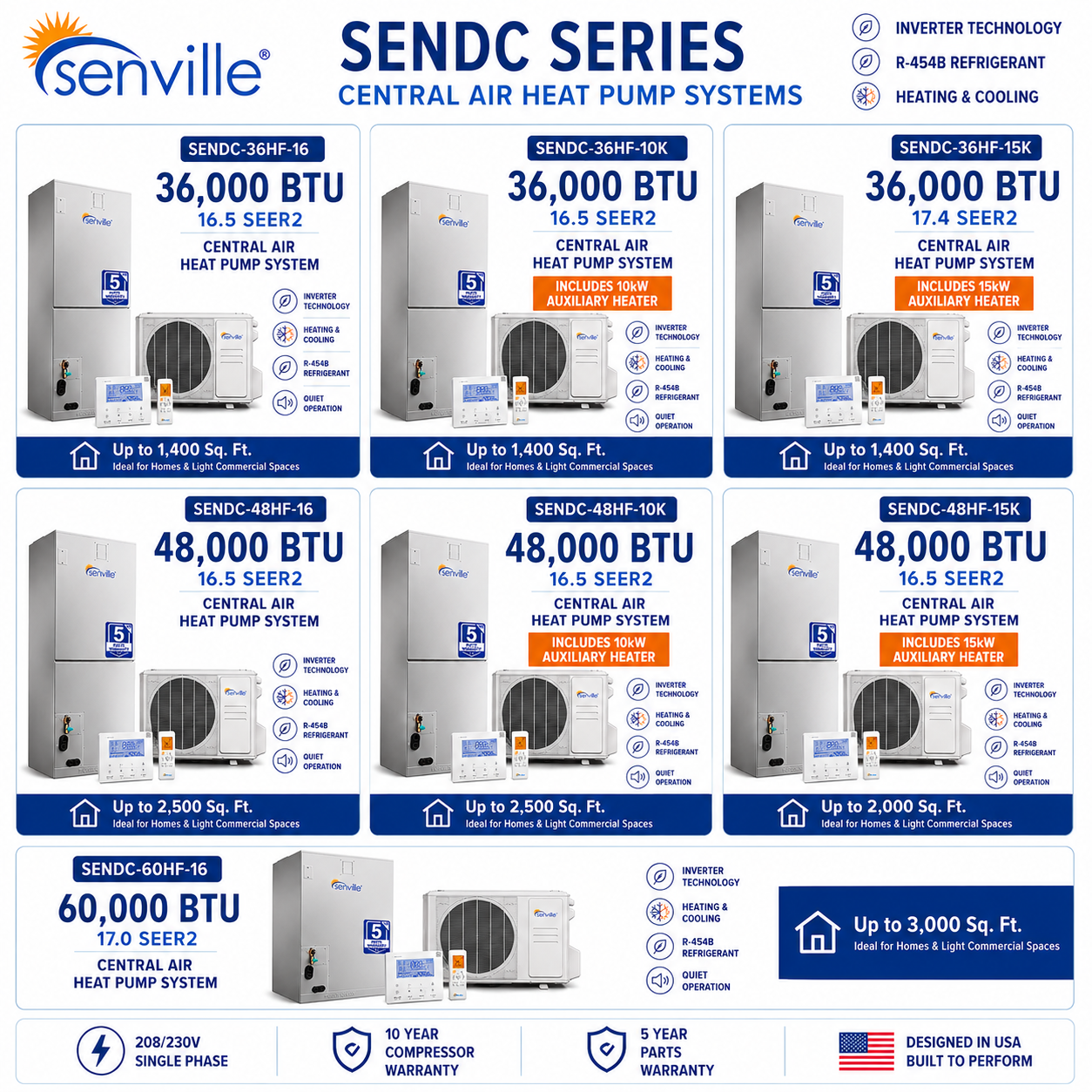

Model Comparison
| Model Detail | 36,000 BTU | 48,000 BTU | 60,000 BTU Class |
|---|---|---|---|

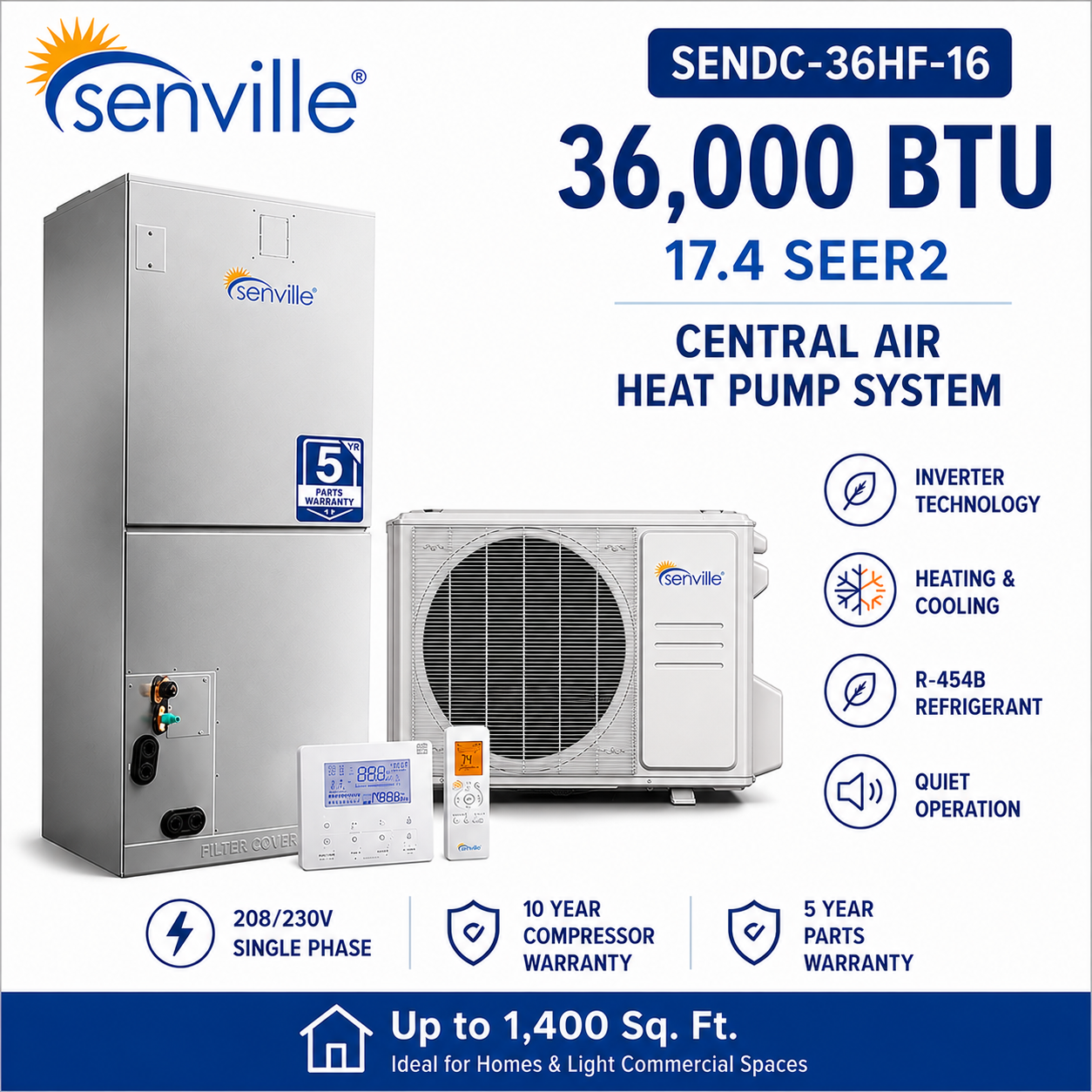

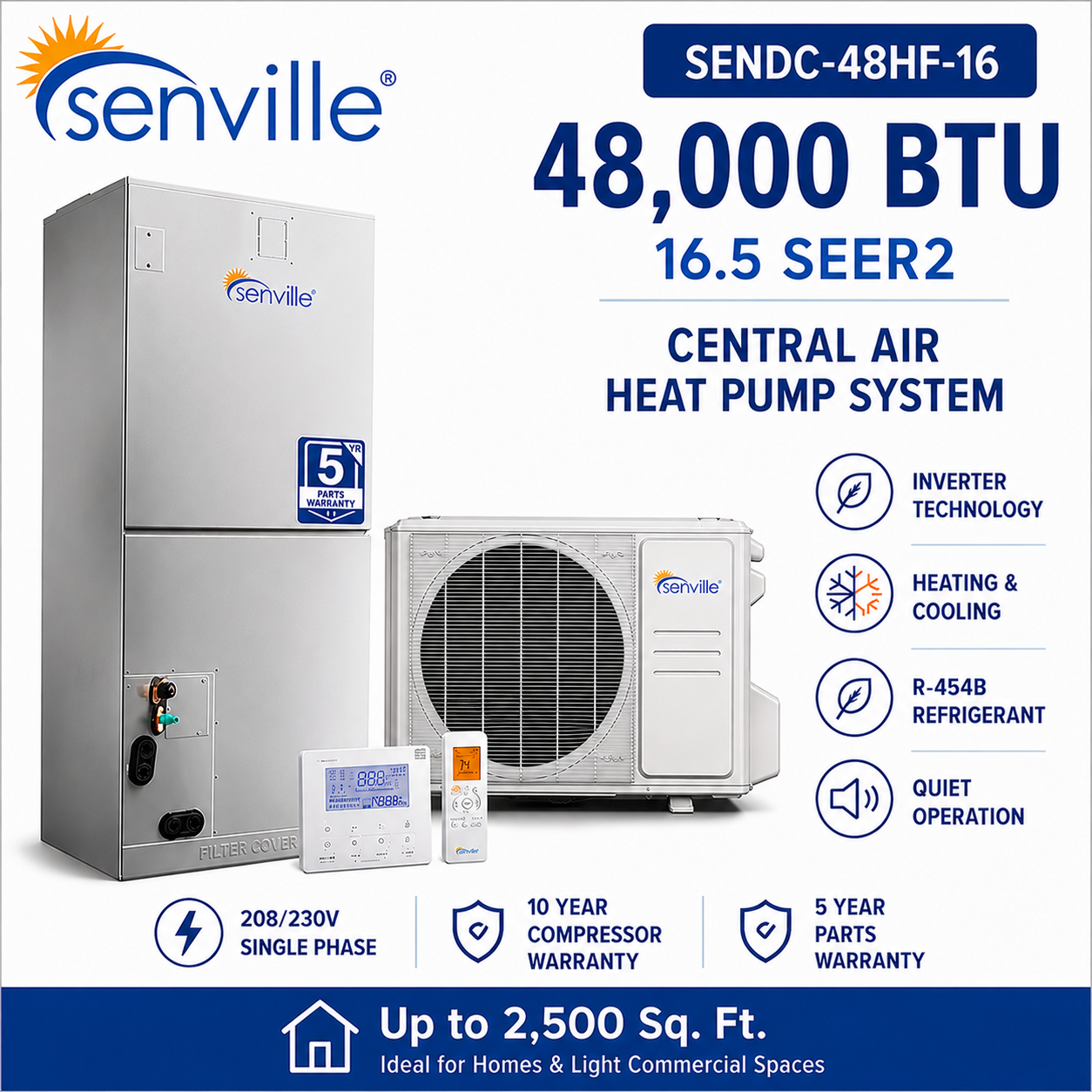

| Base System SKU | SENDC-36HF-16 |
SENDC-48HF-16 |
SENDC-60HF-16 |
| System Type | Central ducted heat pump | Central ducted heat pump | Central ducted heat pump |
| Installation Kit | 16 ft. | 16 ft. | 16 ft. |
| Auxiliary Heater in Base SKU | None selected | None selected | None selected |
| Power Supply | 208/230V, 1-phase, 60Hz | 208/230V, 1-phase, 60Hz | 208/230V, 1-phase, 60Hz |
| Refrigerant | R-454B | R-454B | R-454B |
Performance Specifications
| Specification | 36,000 BTU | 48,000 BTU | 60,000 BTU Class |
|---|---|---|---|
| SEER2 | 17.4 | 16.5 | 16 |
| EER2 | 11.7 | 10.5 | 10 |
| Cooling Range | 13,000–47,400 BTU/h | 15,600–51,000 BTU/h | 11,400–56,300 BTU/h |
| Heating Range | 11,000–57,200 BTU/h | 15,500–57,300 BTU/h | 8,100–64,500 BTU/h |
| HSPF2-4 | 10.3 | 9.5 | 9 |
| HSPF2-5 | 7.8 | 8 | 8 |
| COP | 3.36 | 3.4 | 3.1 |
| Voltage Range | 187–253V | 187–253V | 187–253V |

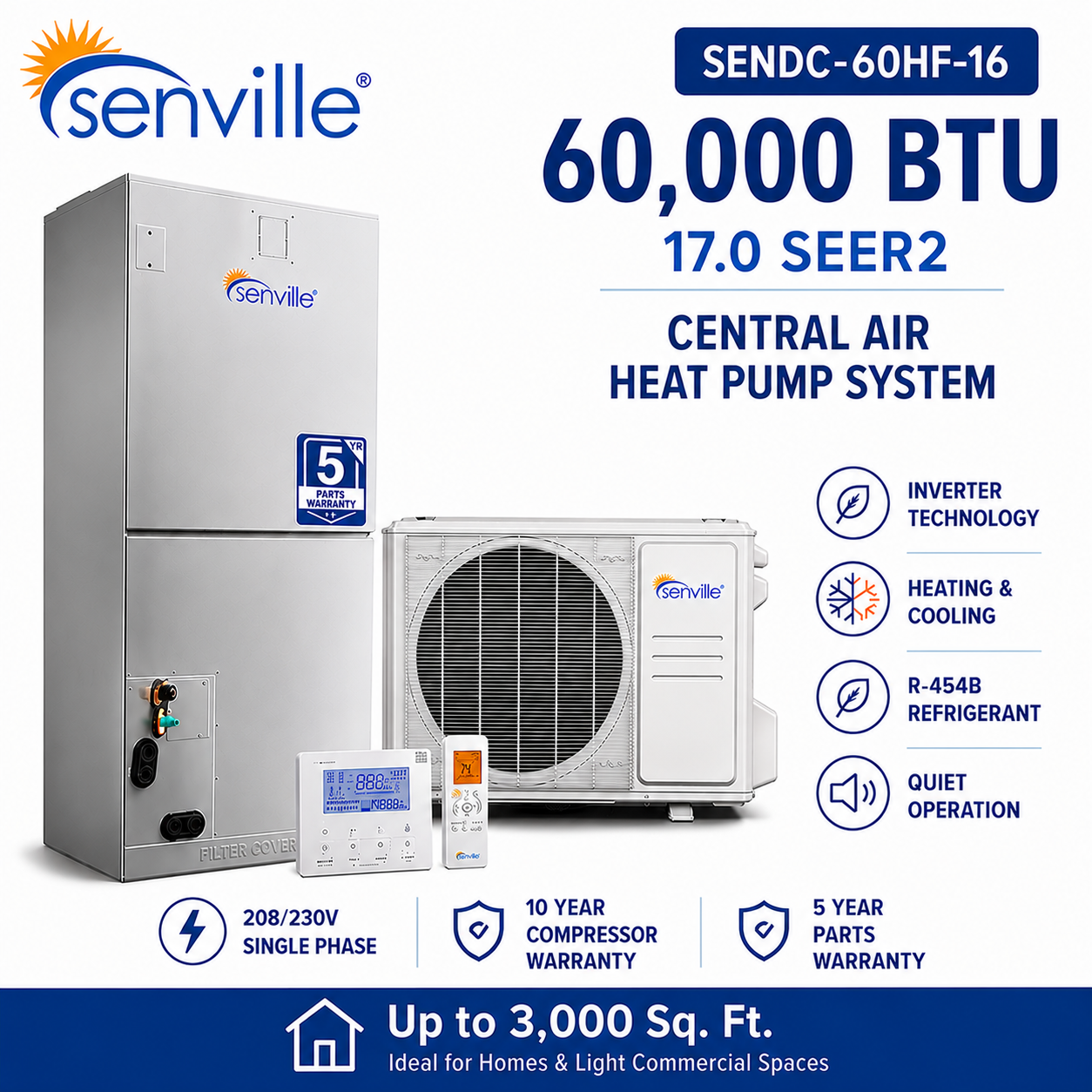

Nominal model size may differ from rated capacity. The 60,000 BTU-class model is listed with 54,000 BTU/h rated cooling and 56,000 BTU/h rated heating. Performance depends on operating conditions and the installed system.
Product Dimensions & Weight
| Specification | 36,000 BTU | 48,000 BTU | 60,000 BTU Class |
|---|---|---|---|
| Indoor Dimensions | 21.02″ × 21.02″ × 49.02″ | 21.02″ × 24.49″ × 52.99″ | 21.02″ × 24.49″ × 52.99″ |
| Indoor Weight | 129.19 lb | Verify with Manufacturer | 162.92 lb |
| Outdoor Dimensions | 38.58″ × 16.34″ × 38.39″ | Verify with Manufacturer | 37.48″ × 16.34″ × 52.48″ |
| Outdoor Weight | 227 lb | Verify with Manufacturer | 242.95 lb |
Dimensions and weights describe individual equipment components, not combined system shipping weight or palletized freight measurements. Confirm dimensions and installation clearances using the exact equipment model documentation.

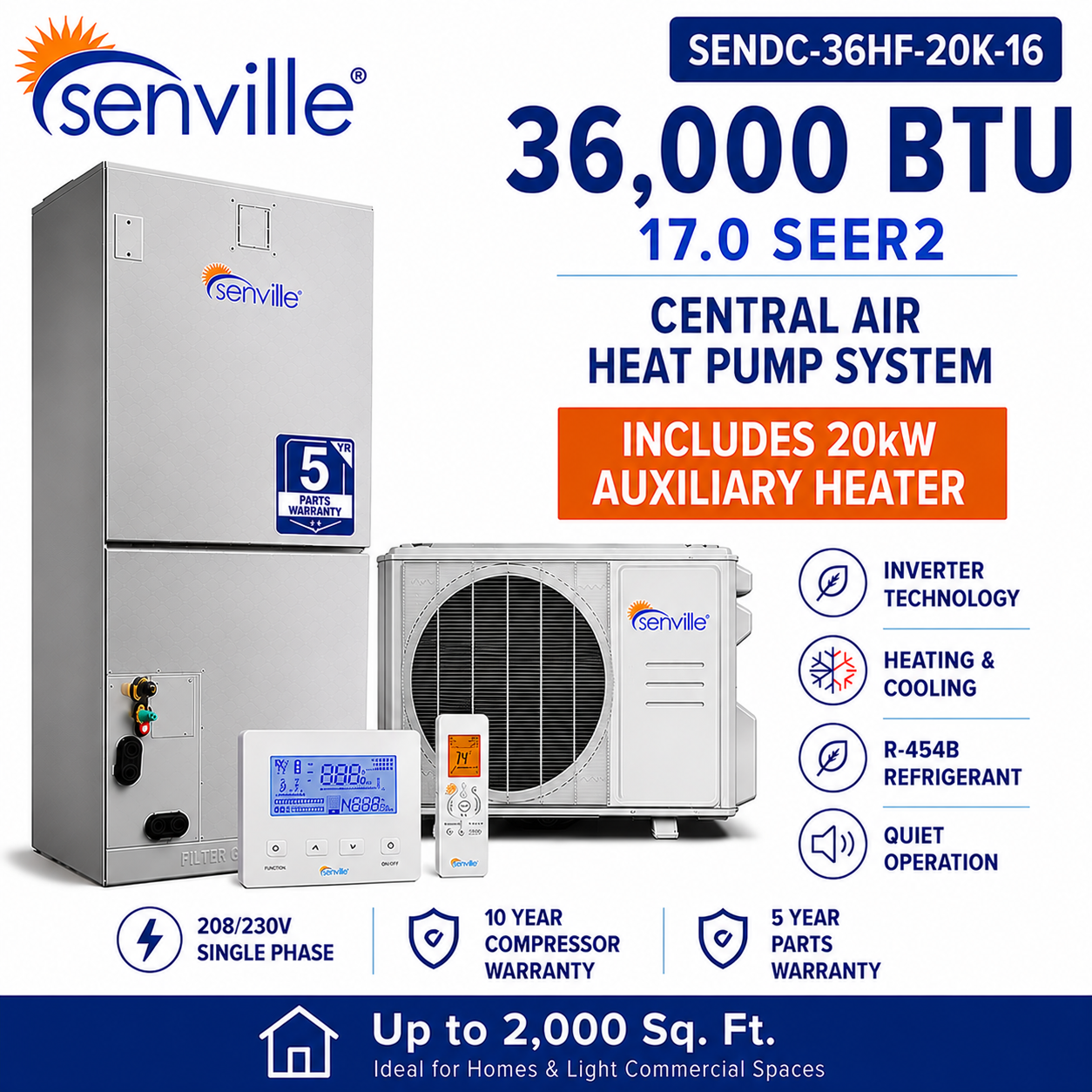

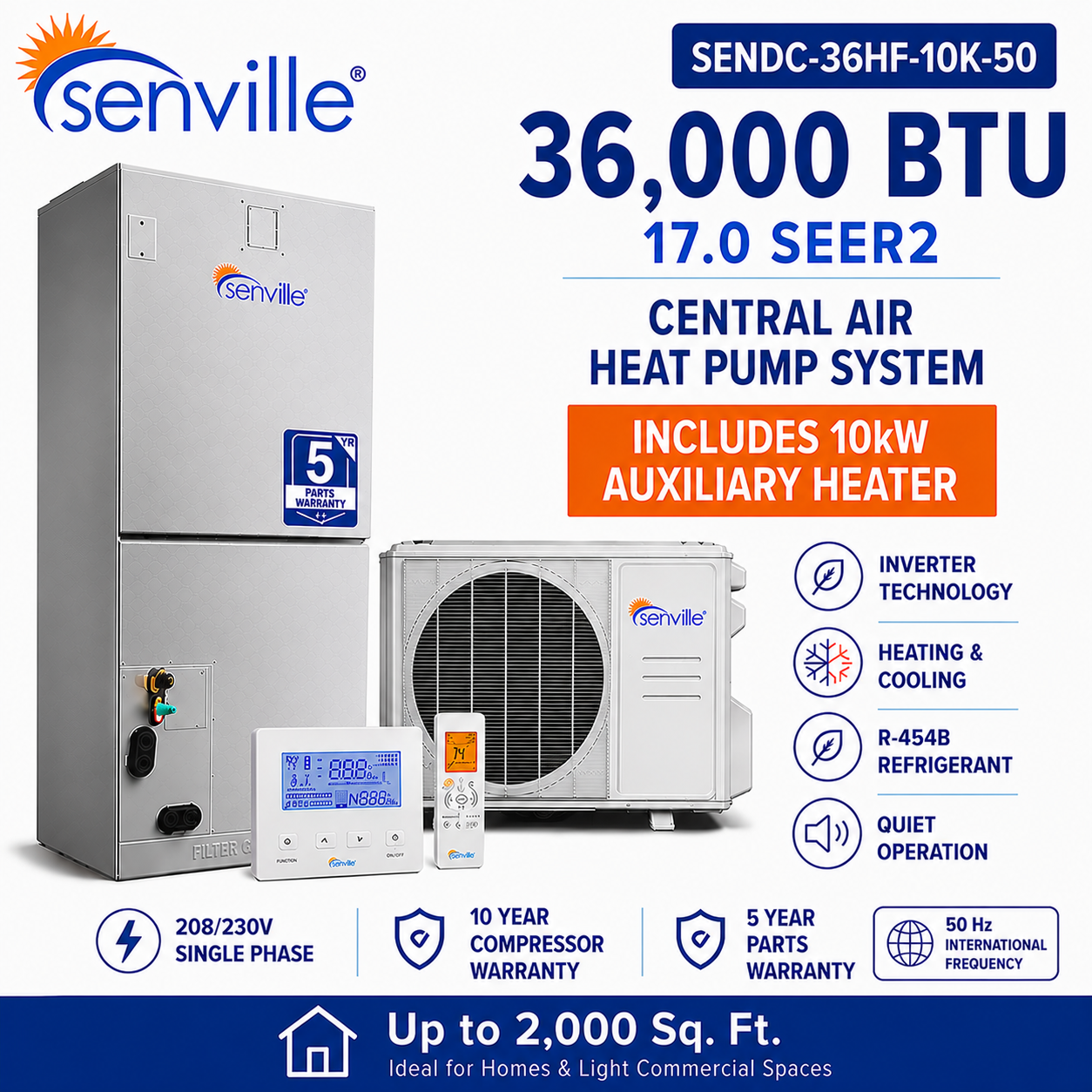

36,000 BTU Auxiliary-Heat Configurations
| System SKU | Configuration |
|---|---|
SENDC-36HF-16 |
No auxiliary heater selected; 16-ft installation kit. |

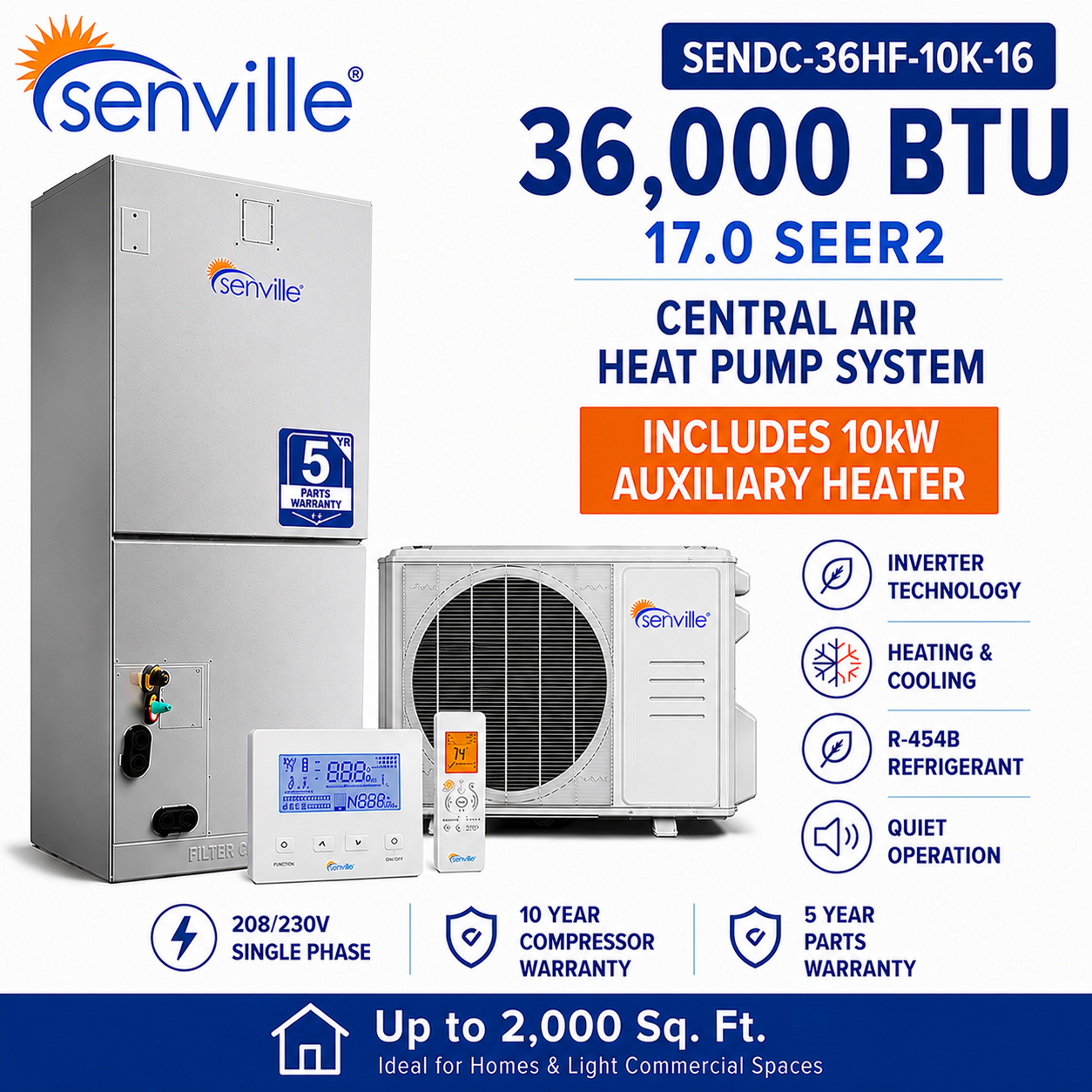

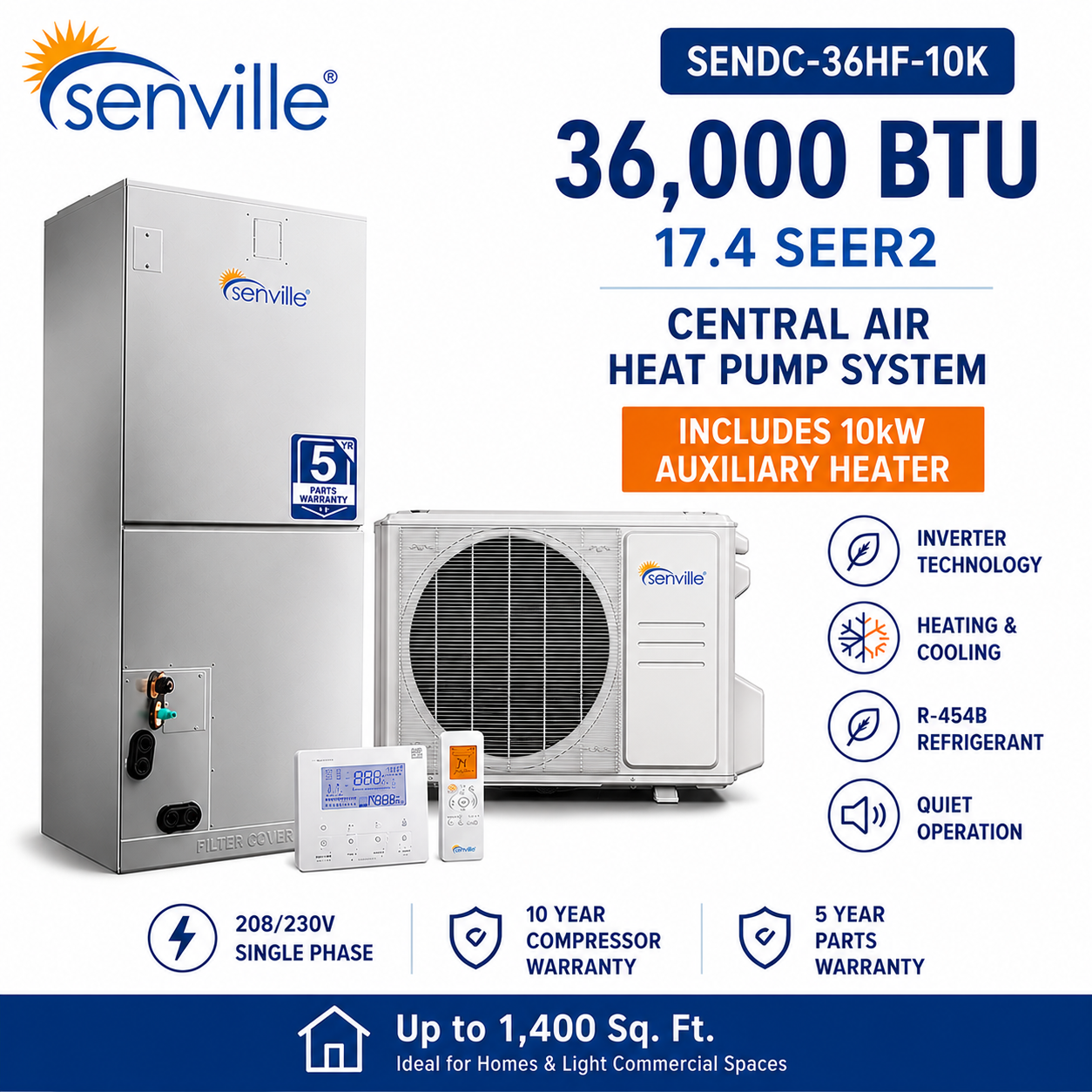

SENDC-36HF-10K-16 |
10-kW auxiliary electric heater; 16-ft installation kit. |

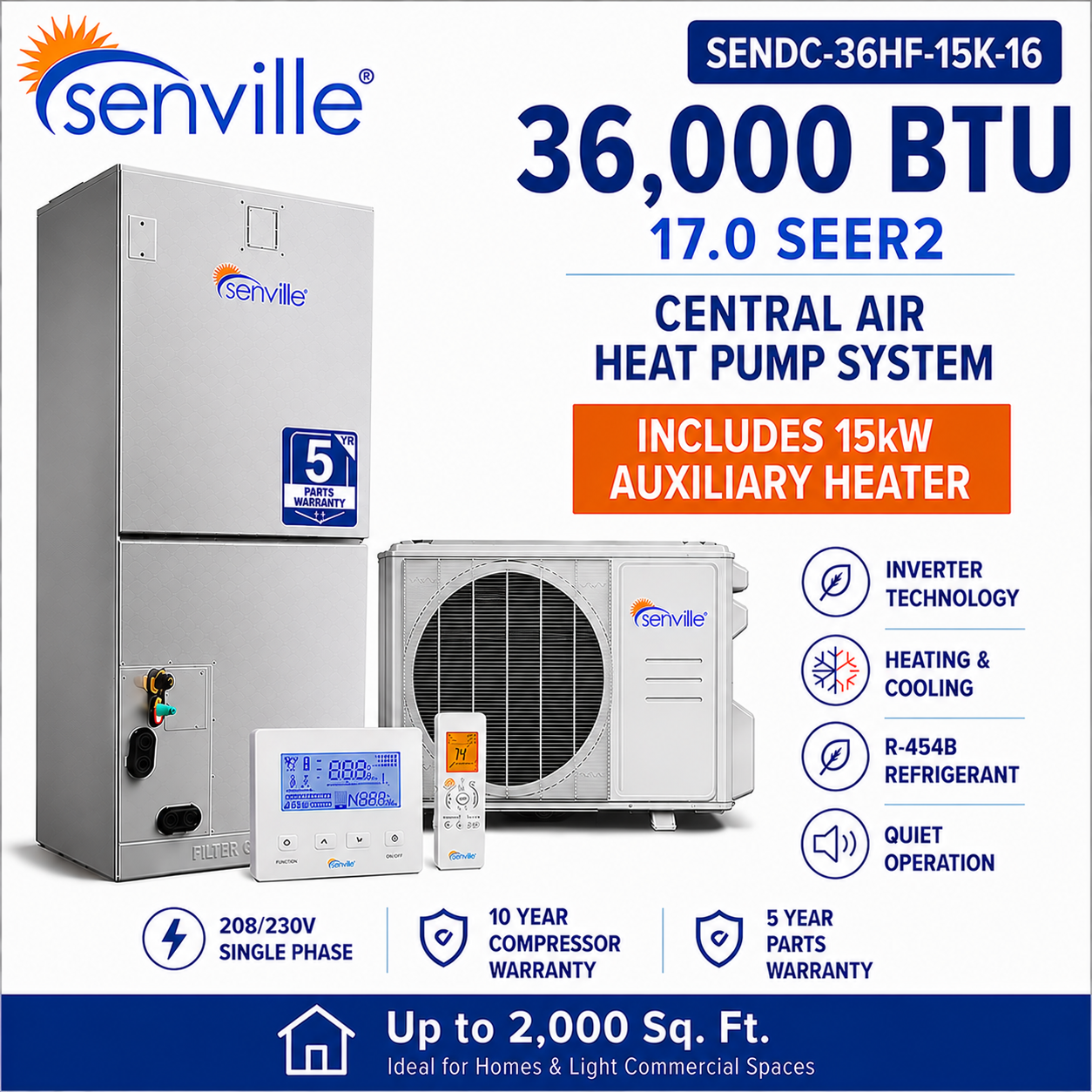

SENDC-36HF-15K-16 |
15-kW auxiliary electric heater; 16-ft installation kit. |
The auxiliary-heat configurations share the SENDC-36HF heat-pump platform. Electric heater selection changes supplemental heating and electrical requirements; it does not change the heat pump’s published efficiency rating. Have your HVAC professional verify heater compatibility, wiring and circuit requirements.
Included System Components
- Matching indoor central air handler.
- Outdoor inverter heat-pump condenser.
- 16-ft installation-kit configuration.
- Auxiliary electric heater when selecting
SENDC-36HF-10K-16orSENDC-36HF-15K-16.
Confirm the supplied thermostat/control, communication wiring and other installation components for the selected SKU before ordering. Ductwork, electrical installation and professional labor must be planned separately.
Product Highlights
- Central ducted heating and cooling from a matched system.
- Variable-speed operation adapts to changing demand.
- Three nominal capacity classes support different building loads.
- 36,000 BTU supplemental-heat configurations.
- Professional system design supports proper equipment selection.
Technical Document References
- Senville SENDC Central System Owner’s Manual.
- Senville R-454B AHU Central Installation Manual.
- Senville SENDC Central System Service Manual.
- Senville warranty
Use documentation that matches the equipment rating labels, refrigerant generation and selected auxiliary-heater configuration.
