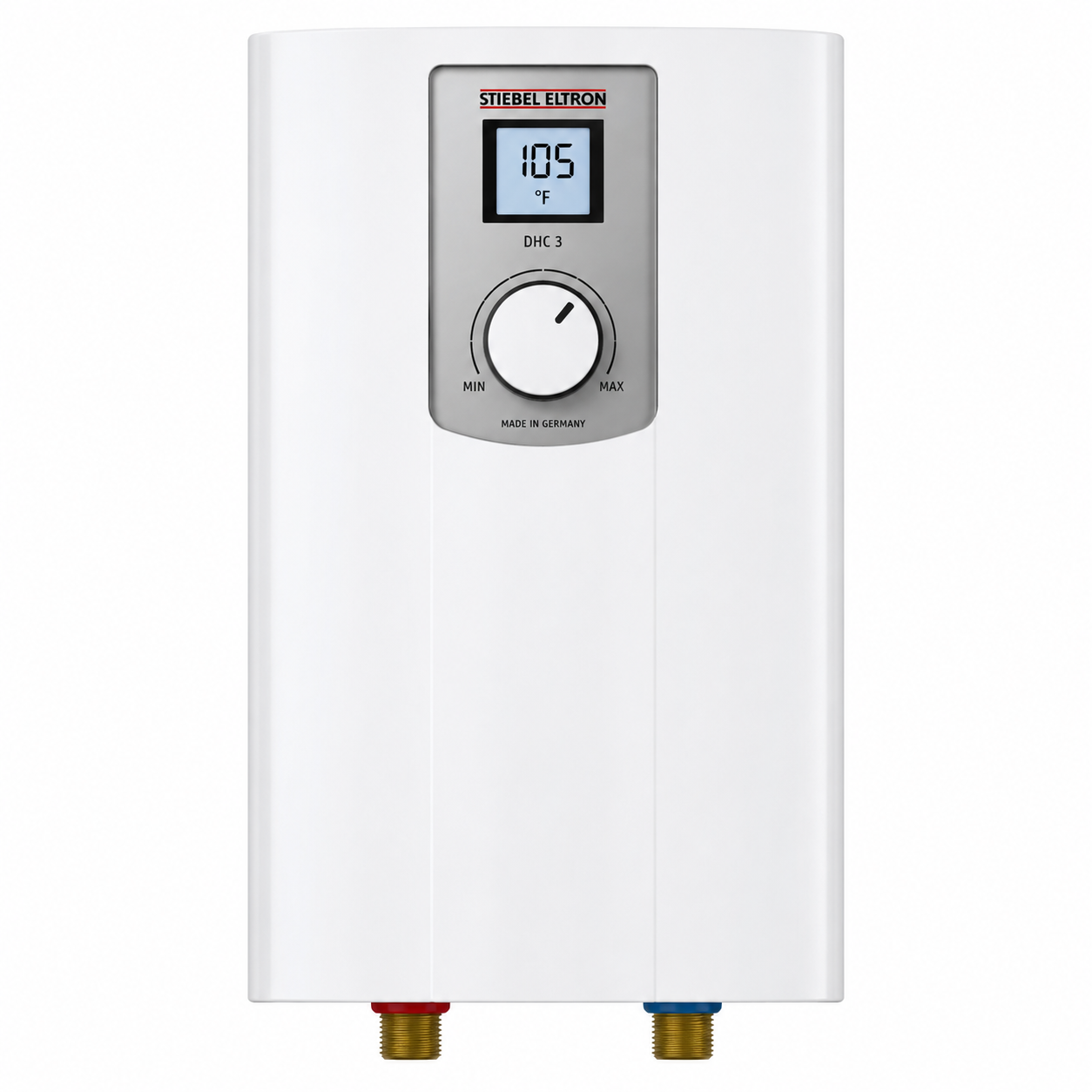

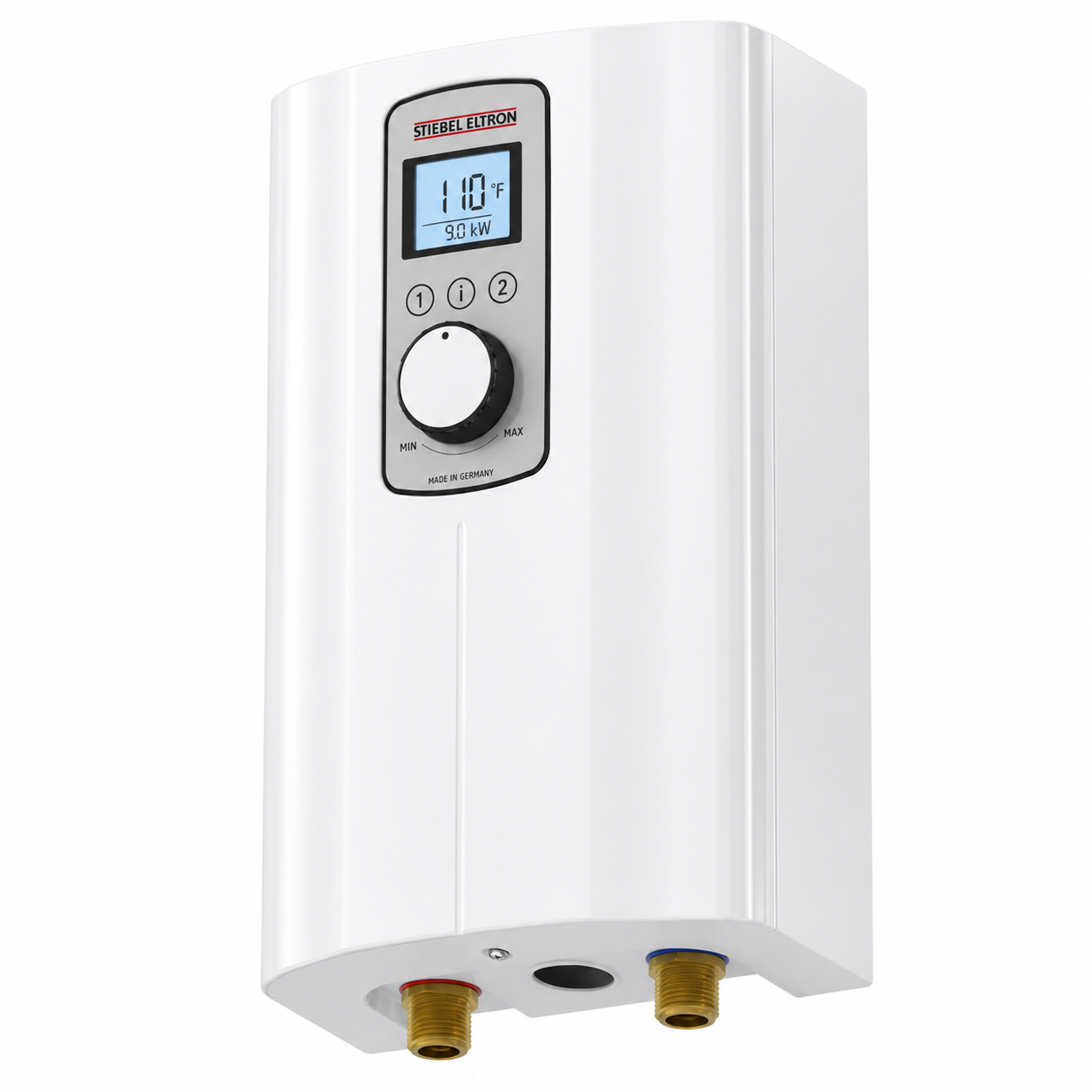

Stiebel Eltron DHC-E 8/10-2 Plus Point-of-Use Electric Tankless Water Heaters
Stiebel Eltron DHC-E 8/10-2 Plus Point-of-Use Electric Tankless Water Heaters is backordered and will ship as soon as it is back in stock.
⭐ DHC-E Plus models include both the robust and trouble-free Direct Coil™ heating system and also Advanced Flow Control™. Advanced Flow Control™, patented in Germany, and exclusive to Stiebel Eltron tankless heaters, has been a feature of our whole-house Tempra® Plus models for years. If hot water demand exceeds working capacity, Advanced Flow Control™ automatically maintains consistent temperatures by slightly reducing flow.
In addition to the extra benefits detailed above, the new Direct Coil™ models continue the benefits that a part of the entire Stiebel Eltron electric tankless line. Ideal for both residential and commercial point-of-use sink applications, these new Direct Coil™ models heat water endlessly on demand at 99% efficiency. They have no stand-by energy losses because they do not store hot water like tank water heaters. No venting is required and the compact European design can be installed with the unit visible. Microprocessor control, flow sensor, and our newly patented air detection system completely eliminate dry-fire. And of course these new models have a safety high-limit with a manual control. Activation rate for all new Direct Coil™ models is a low 0.264 GPM.
⭐ Key Benefits at a Glance
- 🔄 Switchable dual-power outputs for installation flexibility
- ⚡ Up to 14.4 kW heating capacity
- 💧 Endless on-demand hot water
- 🌱 99% energy-efficient operation
- 🚫 No standby losses and no venting required
- 🛡️ Patented dry-fire protection system
- 🚿 Low 0.264 GPM activation flow rate
- 🌡️ Four selectable output temperature settings
- 🔧 Simple installation and dependable operation
- 🇪🇺 Compact European design suitable for visible installations
⭐ Key Features
- 🔄 Switchable dual-power output on every model
- ⚡ Available in 120 V, 208 V, and 240 V configurations
- 💧 Low-flow activation at just 0.264 GPM
- 🌱 Up to 99% energy efficiency
- 📏 Compact, space-saving European design
- 🔧 Simple jumper-based power selection during installation
- 🛡️ Reliable, maintenance-friendly operation
- 🚿 Ideal for residential and commercial point-of-use applications
🏢 Versatile Applications
DHC Trend can deliver hot water to a single sink, multiple sinks, or in certain conditions, low-flow showerheads.
💼 Commercial & Industrial Use
🏢 Office Buildings
⛽ Gas Stations
🛍️ Stores & Retail
🏫 Schools & Universities
🏬 Malls & Shopping Centers
🏨 Hotels / Motels
📦 Warehouses
🏙️ Commercial Condominiums
🍽️ Restaurants
🏭 Manufacturing Facilities
🏠 Residential Settings
🧼 Bathroom Sinks
🍽️ Kitchen Sinks
🧺 Laundry Areas
🌲 Small Cabins
⚖️ Weight:
- 5.5 lb (2.5 kg)
📐 Dimensions:
- Height: 14⅛" (360 mm)
- Width: 8" (202 mm)
- Depth: 4⁵⁄₁₆" (109 mm)
💧 Nominal Water Volume:
- 0.07 gal (0.277 L)
🔧 Installation Notes:
- DHC 3/3.5-1 Trend and 4/6-2 Trend ship with pressure compensating flow-reducer/aerators that must be installed.
- Factory default setting is jumper position 2 [high]
- Overcurrent protection sized at 100% of load. Tankless water heaters are considered a non-continuous load. Use only GFCI Class A circuit breakers.
- Copper conductors with a temperature rating of 75 °C or greater must be used. Conductors should be sized to maintain a voltage drop of less than 3% under load.
Do not connect to a salt-regenerated water softener or a water supply of salt water.
Warranty:
Technical Documents:
