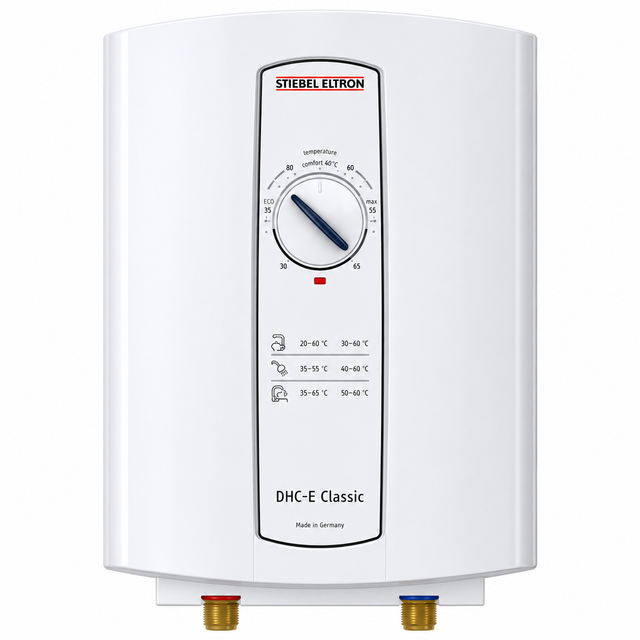

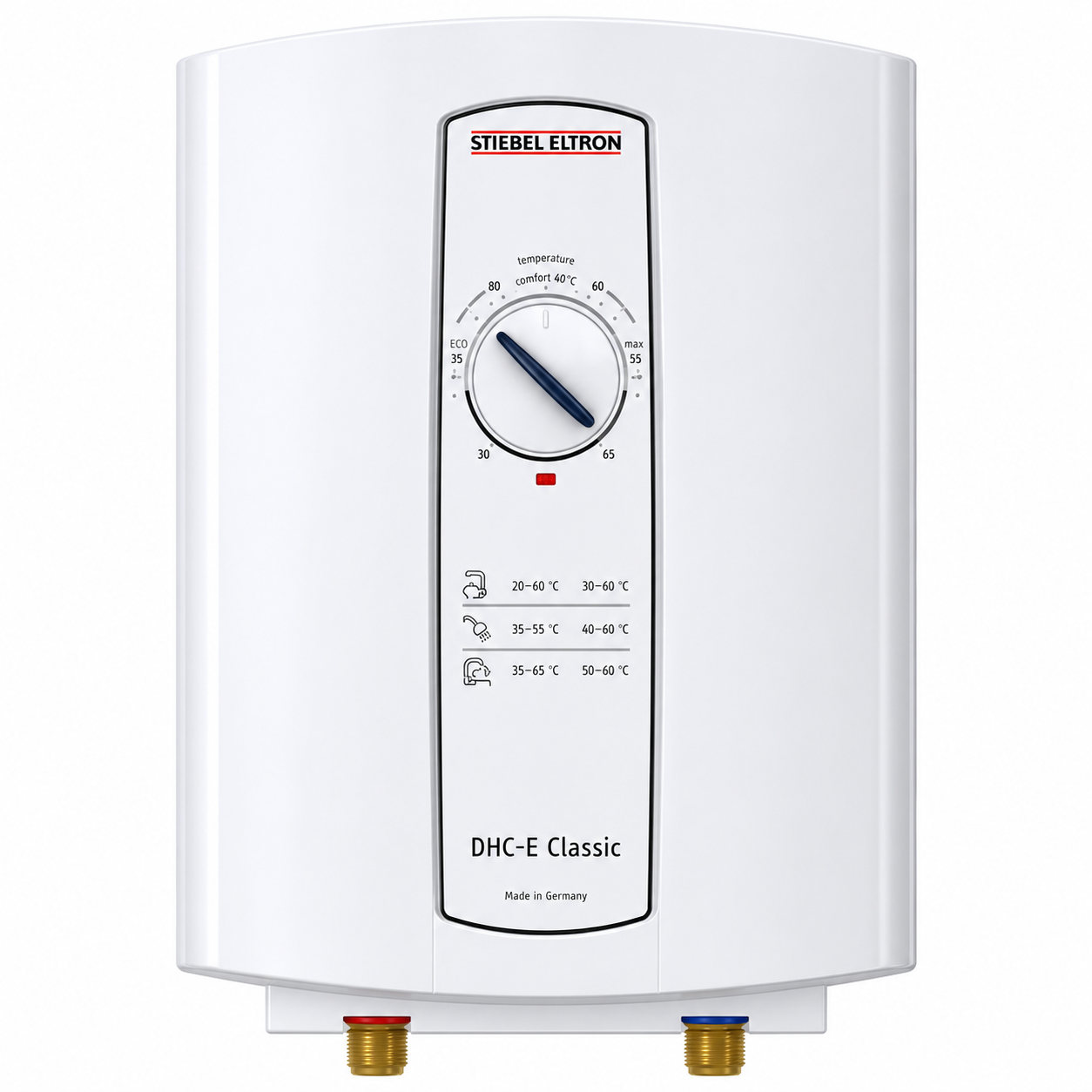

Stiebel Eltron DHC-E 12-2 Classic Single or Multi Point Electric Tankless Water Heaters

✨DHC-E Classic Tankless Water Heater Specifications

🔧General Specifications

• 💦 Minimum Water Flow to Activate Unit: 0.264 GPM (1.0 L/min)
• 🌡️ Maximum Inlet Water Temperature: 131°F (55°C)
• ⚖️ Weight: 5.9 lb (2.7 kg)
• 🚰 Nominal Water Volume: 0.13 gal (0.5 L)
• 📏 Dimensions:
  • Width: 7⅛ in. (20.0 cm)
  • Height: 14³⁄₁₆ in. (36.0 cm)
  • Depth: 4⅛ in. (11.0 cm)
• 🔩 Working Pressure: 150 psi (10 bar)
• 🛡️ Tested Pressure: 300 psi (20 bar)
• 🔗 Water Connections: ½" NPT

⚡ Electrical Specifications

• 🔹 DHC-E 8/10-2 Classic
  • Item Number: 203671
  • Phase: Single Phase, 50/60 Hz
  • Voltage: 240 V or 208 V
  • Wattage:
    • 9.6 kW @ 240 V
    • 7.2 kW @ 208 V
  • Amperage:
    • 40 A @ 240 V
    • 30 A @ 208 V
  • Minimum Recommended Circuit Breaker (DP):
    • 40 A @ 240 V
    • 30 A @ 208 V
  • Minimum Recommended Copper Wire Size:
    • 8/2 AWG @ 240 V
    • 10/2 AWG @ 208 V
• 🔹 DHC-E 12-2 Classic
  • Item Number: 203672
  • Phase: Single Phase, 50/60 Hz
  • Voltage: 240 V or 208 V
  • Wattage:
    • 12 kW @ 240 V
    • 9 kW @ 208 V
  • Amperage:
    • 50 A @ 240 V
    • 44 A @ 208 V
  • Minimum Recommended Circuit Breaker (DP):
    • 50 A
  • Minimum Recommended Copper Wire Size:
    • 8/2 AWG

🌱 Energy Performance

• ⚡ DHC-E 8/10-2 Classic
  • Uniform Energy Factor (UEF):
    • 0.97 @ 240 V
    • 0.94 @ 208 V
  • Recovery Efficiency:
    • 98% @ 240 V
    • 92% @ 208 V
• ⚡ DHC-E 12-2 Classic
  • Uniform Energy Factor (UEF): 0.94
  • Recovery Efficiency: 95%

💧 Maximum Temperature Rise Above Incoming Water Temperature

🔹 DHC-E 8/10-2 Classic

• 🚿 0.75 GPM (2.8 L/min):
  • 87°F @ 240 V
  • 66°F @ 208 V
• 🚿 1.00 GPM (3.8 L/min):
  • 66°F @ 240 V
  • 49°F @ 208 V
• 🚿 1.50 GPM (5.7 L/min):
  • 44°F @ 240 V
  • 33°F @ 208 V

🔹 DHC-E 12-2 Classic

• 🚿 0.75 GPM (2.8 L/min):
  • 92°F @ 240 V
  • 82°F @ 208 V
• 🚿 1.00 GPM (3.8 L/min):
  • 82°F @ 240 V
  • 61°F @ 208 V
• 🚿 1.50 GPM (5.7 L/min):
  • 54°F @ 240 V
  • 41°F @ 208 V
• 🚿 2.25 GPM (8.5 L/min):
  • 36°F @ 240 V
  • 27°F @ 208 V
• 🚿 3.00 GPM (11.3 L/min):
  • 27°F @ 240 V
  • 20°F @ 208 V

⭐ Key Features

• ⚡ Single-phase electric tankless water heater
• 🌱 High efficiency with up to 0.97 UEF
• 💧 Activates with only 0.264 GPM flow
• 📏 Compact wall-mounted design
• 🛡️ Tested to 300 psi for durability
• 🔧 Engineered and manufactured to German quality standards
