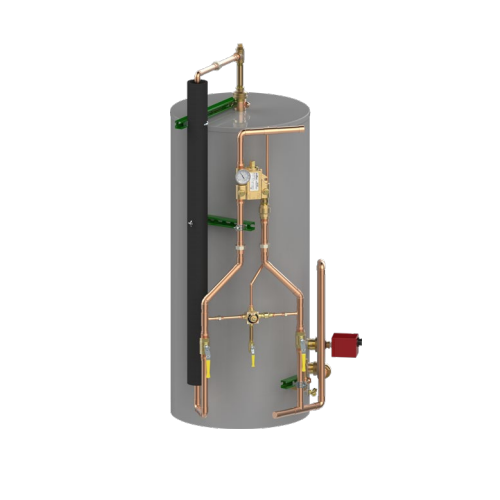

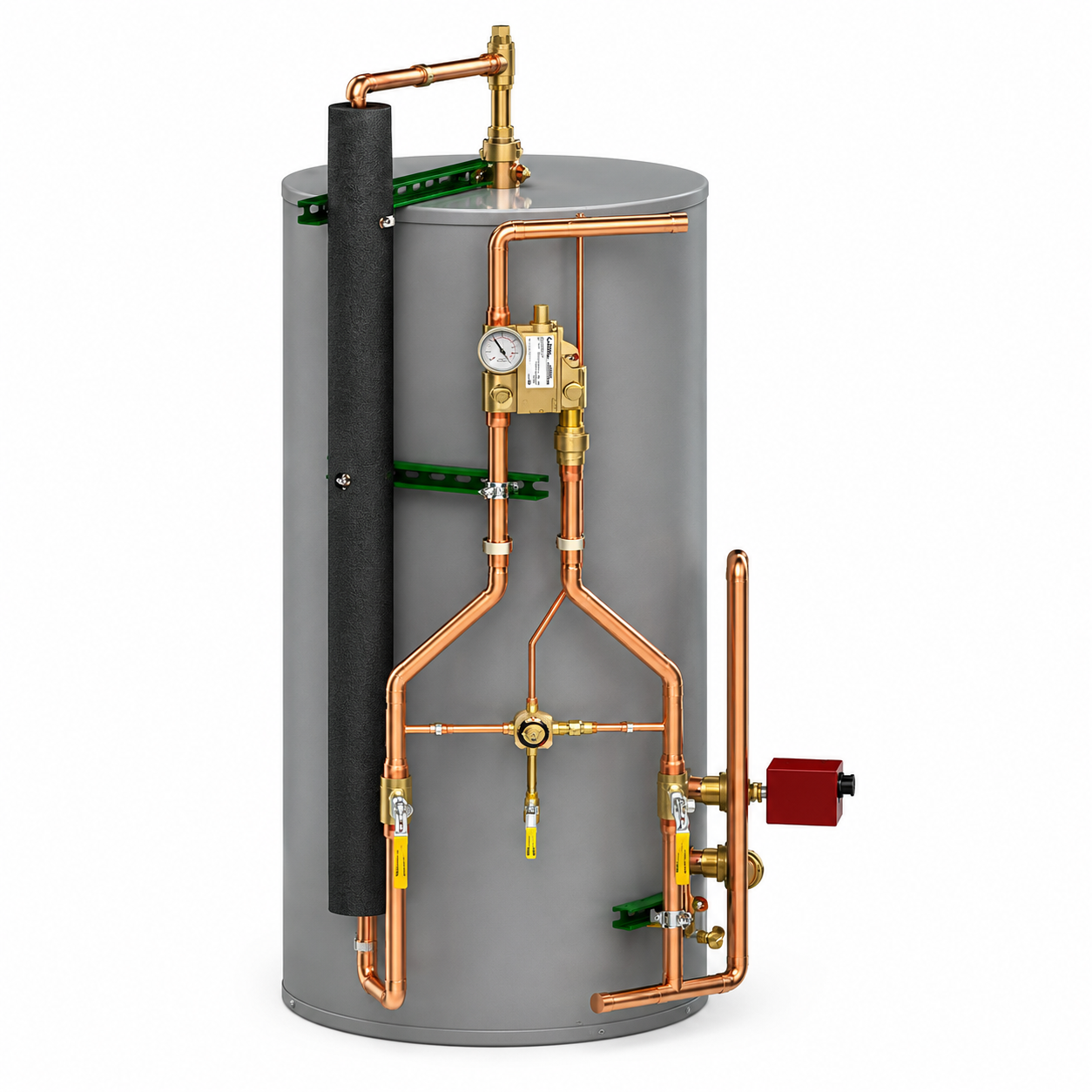

Stingray Systems S9300 Tepid Emergency System For Shower and Combination 118 Gallon Tank System Only - No Fixture

TO ORDER ONE OF THE S9300 WITH EQUIPMENT OPTIONS CALL 1-888-615-0755 OR EMAIL PLUMBESTORE@GMAIL.COM WITH YOUR INQUIRY

The S9300 Tepid Emergency System shall consist of a water heater storage tank and 120V 20AMP heating element. The S9300 Tepid Emergency System shall incorporate 2 emergency mixing valves capable of controlling outlet temperature over a wide range of demand requirements. The mixing valves shall employ a liquid-filled thermostatic motor and a stainless steel sliding piston control device. The valves shall offer positive hot water shut-off in the event of cold water supply loss and full flow cold water bypass in the event of hot water supply loss or thermostatic failure. The system shall also incorporate a device capable of flattening temperature spike through the system as well as a heat trap to prevent heat migration to the cold side of the mixing valves. Unit supplied complete with pre-piped 118 gallon storage tank, 120V 20AMP heating element, patented accumulator, SV125 and SV107 Emergency Mixing Valves. Approximate weight empty = 600 lbs. The hot water tank is UL listed, heating element is CSA approved and the housing has either a Nema 1, 4 or 7 rating.

Expansion Tank and Cold Water Filter by others.

This system, combined with a Stingray Emergency shower or combination shower and eye/face wash is a complete tepid solution that is ANSI/ISEA Z358.1 compliant. Please select the correct fixture per the application.

Equipment Options: Stingray Series 3000

[ ] 3010 Floor Mounted Emergency Shower

[ ] 3015 Floor Mounted Emergency Shower

[ ] 3020 Ceiling Mounted Emergency Shower

[ ] 3025 Ceiling Mounted Emergency Shower

[ ] 3030 Wall Mounted Emergency Shower

[ ] 3035 Wall Mounted Emergency Shower Stingray Series 5000

[ ] 5510 Floor Mounted Combination Shower

[ ] 5515 Floor Mounted Combination Shower

[ ] 5530 Wall Mounted Combination Shower

[ ] 5535 Wall Mounted Combination Shower

[ ] Cold Water Filter

Documents and guides:

• Spec Book
