SunEarth 100010 Series Solar Storage Tanks | 4,5,6,7 ft Tank Heights
SunEarth 100010 Series Solar Storage Tanks | 4,5,6,7 ft Tank Heights - 4 Ft / 100 Gal is backordered and will ship as soon as it is back in stock.
The SunEarth Thermal Storage (SETS) 100010 Series provides vented, non-pressurized thermal storage for professionally designed solar water-heating and other approved thermal systems. The family includes 35 published models from 100 to 5,000 gallons, arranged in 4-, 5-, 6-, and 7-foot tank heights.
SETS construction combines an EPDM liner, an embossed aluminum jacket, and insulated walls and lid. Optional copper heat-exchange coils transfer heat between the storage fluid and separate system circuits. Coils, ports, and accessories must be specified for the selected installation.
Key Features
- 100–5,000 Gallon Range — Multiple capacities support different storage requirements and installation spaces.
- Vented, Non-Pressurized Design — Provides thermal storage separate from pressurized circuits where suitable heat exchangers are specified.
- EPDM Liner — 0.045″ liner with a published maximum tank temperature of 175 °F.
- R-18 Side and Lid Insulation — 2″ foil-faced polyisocyanurate helps reduce stored-heat loss.
- Aluminum Jacket — 0.032″ embossed 3003 aluminum construction.
- Access for Installation — Published crate widths are 19″ or 24″; disassembly can assist movement into the installation space.
- Optional Copper Coils — Model-specific maximum coil counts support application planning; listed counts do not indicate included coils.
- Ten-Year Limited Warranty — Subject to the published terms, exclusions, and liner reimbursement schedule.
Construction & Operating Specifications
| Specification | Details |
|---|---|
| Manufacturer | SunEarth |
| Product Family | SunEarth Thermal Storage (SETS), 100010 Series |
| Tank Design | Vented, non-pressurized |
| Published Capacity Range | 100–5,000 gallons |
| Tank Heights | 48″, 60″, 72″, or 84″ |
| Liner | 0.045″ EPDM |
| Maximum Tank Temperature | 175 °F |
| Jacket | 0.032″ embossed 3003 aluminum |
| Side / Lid Insulation | 2″ foil-faced polyisocyanurate, R-18 |
| Bottom Insulation | 1″ foil-faced polyisocyanurate plus 1″ polystyrene |
| Threaded Fasteners | AISI 304 stainless steel |
| Above-Water-Line Connections | Schedule 40 PVC pipe passages |
| Below-Water-Line Connections | Stainless-steel MPT bulkhead flanges |
| Minimum Vent Port | 1½″ |
| Optional Heat-Exchange Coil | 1″ copper; maximum quantity varies by tank model |
| Warranty | Ten-year limited product warranty; liner reimbursement varies by year and qualifying control configuration |
Model Dimensions & Weights
Weight is the manufacturer’s published model weight; filled operating weight and shipping weight require separate planning. Maximum coil count is a capacity limit, not an included quantity.

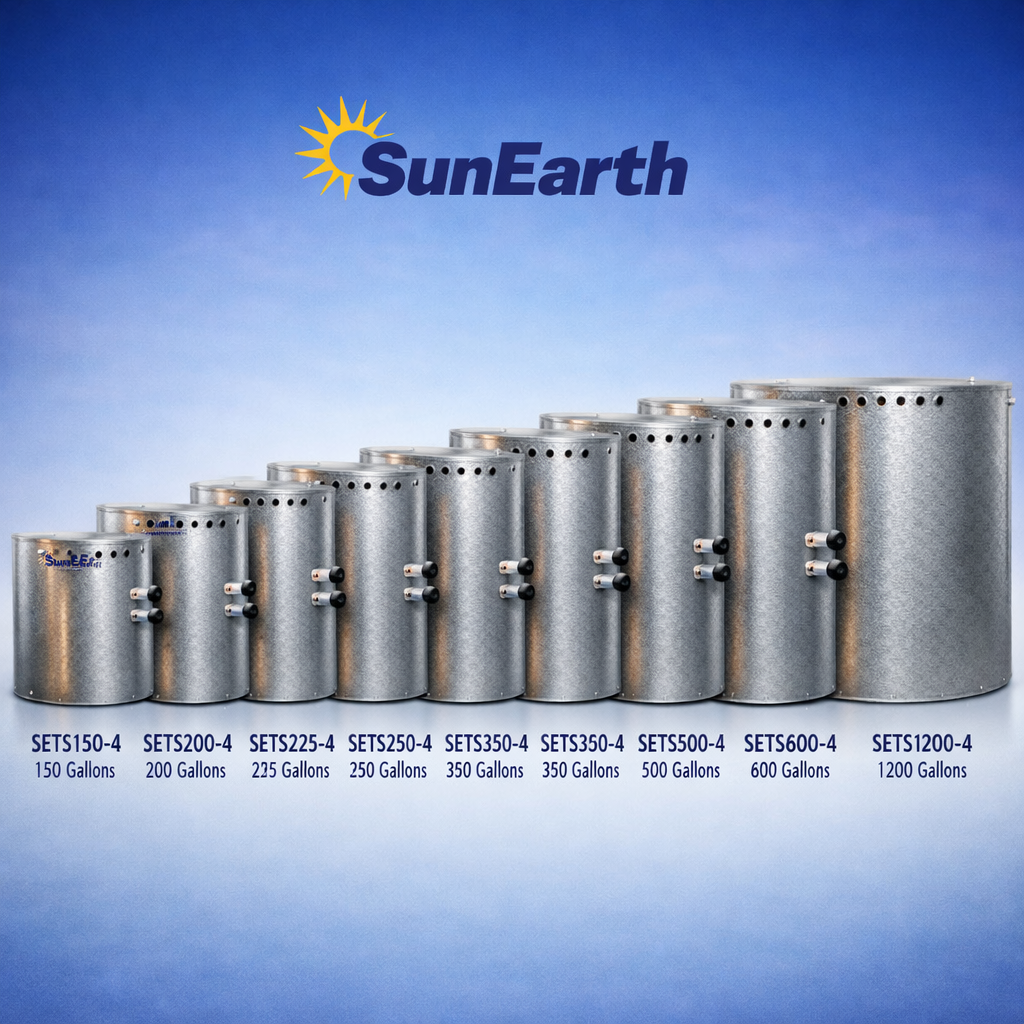

4-Foot-Tall SETS Models
| Model | Capacity (gal) |
Diameter (in) |
Height (in) |
Weight (lb) |
Max. Coils |
|---|---|---|---|---|---|
| SETS100-4 | 100 | 33 | 48 | 119 | 1 |
| SETS150-4 | 150 | 36 | 48 | 129 | 1 |
| SETS200-4 | 200 | 40 | 48 | 137 | 1 |
| SETS250-4 | 250 | 48 | 48 | 155 | 2 |
| SETS300-4 | 300 | 52 | 48 | 166 | 3 |
| SETS400-4 | 400 | 58 | 48 | 185 | 3 |
| SETS500-4 | 500 | 64 | 48 | 206 | 4 |
| SETS600-4 | 600 | 70 | 48 | 227 | 5 |
| SETS700-4 | 700 | 76 | 48 | 241 | 6 |
| SETS800-4 | 800 | 80 | 48 | 267 | 7 |
| SETS1200-4 | 1200 | 96 | 48 | 359 | 9 |
5-Foot-Tall SETS Models
| Model | Capacity (gal) |
Diameter (in) |
Height (in) |
Weight (lb) |
Max. Coils |
|---|---|---|---|---|---|
| SETS400-5 | 400 | 52 | 60 | 222 | 2 |
| SETS500-5 | 500 | 58 | 60 | 226 | 3 |
| SETS600-5 | 600 | 64 | 60 | 264 | 4 |
| SETS700-5 | 700 | 67 | 60 | 270 | 5 |
| SETS800-5 | 800 | 70 | 60 | 274 | 5 |
| SETS1000-5 | 1000 | 80 | 60 | 338 | 7 |
| SETS1200-5 | 1200 | 86 | 60 | 371 | 8 |
| SETS1500-5 | 1500 | 96 | 60 | 426 | 9 |
| SETS2100-5 | 2100 | 110 | 60 | 732 | 10 |
6-Foot-Tall SETS Models
| Model | Capacity (gal) |
Diameter (in) |
Height (in) |
Weight (lb) |
Max. Coils |
|---|---|---|---|---|---|
| SETS800-6 | 800 | 64 | 72 | 281 | 4 |
| SETS1000-6 | 1000 | 70 | 72 | 314 | 5 |
| SETS1100-6 | 1100 | 76 | 72 | 354 | 4 |
| SETS1300-6 | 1300 | 80 | 72 | 382 | 7 |
| SETS1500-6 | 1500 | 86 | 72 | 413 | 8 |
| SETS2000-6 | 2000 | 100 | 72 | 754 | 10 |
| SETS3000-6 | 3000 | 120 | 72 | 888 | 12 |
| SETS3400-6 | 3400 | 128 | 72 | 954 | 13 |

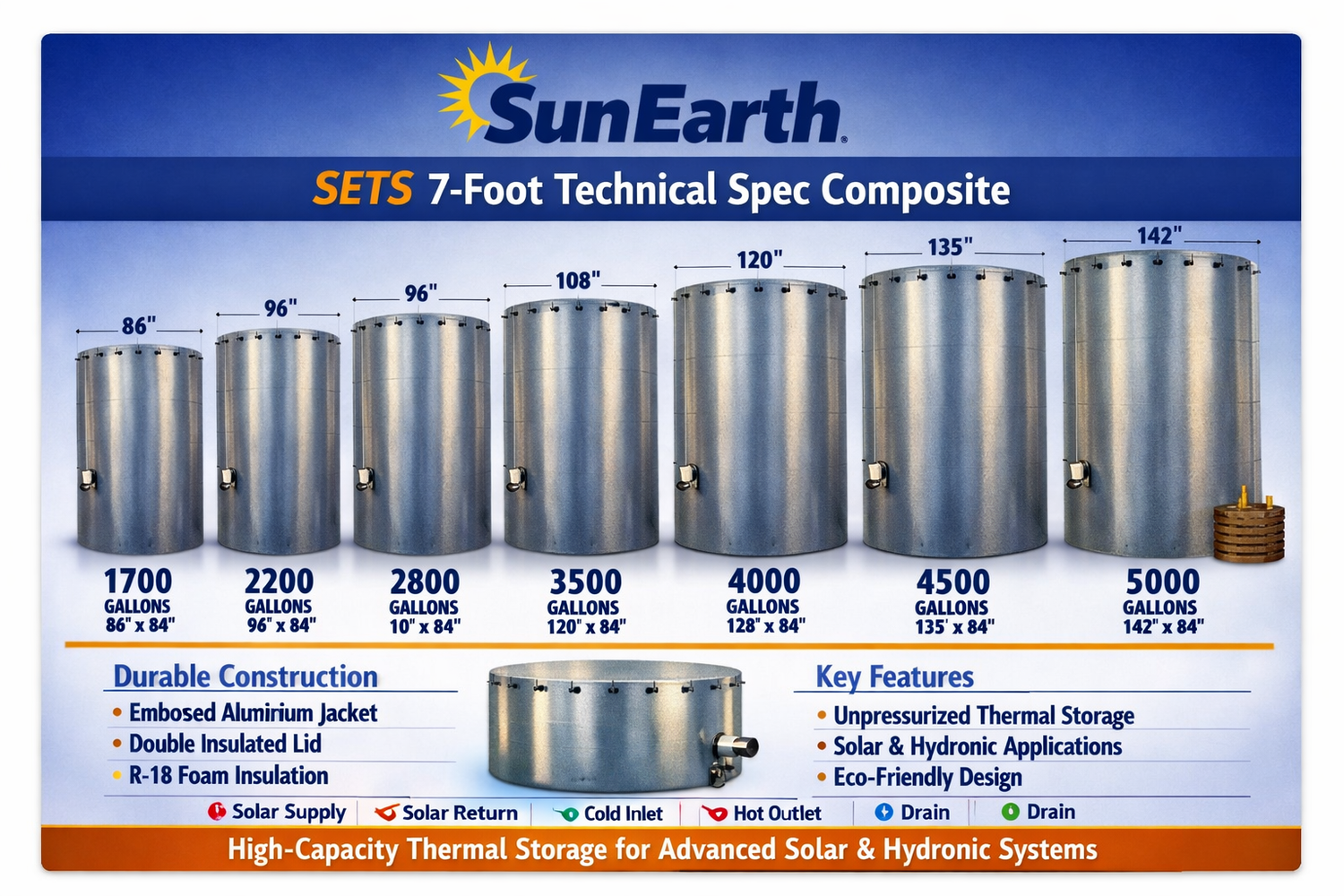

7-Foot-Tall SETS Models
| Model | Capacity (gal) |
Diameter (in) |
Height (in) |
Weight (lb) |
Max. Coils |
|---|---|---|---|---|---|
| SETS1700-7 | 1700 | 86 | 84 | 665 | 8 |
| SETS2200-7 | 2200 | 96 | 84 | 774 | 9 |
| SETS2800-7 | 2800 | 108 | 84 | 925 | 10 |
| SETS3500-7 | 3500 | 120 | 84 | 1064 | 12 |
| SETS4000-7 | 4000 | 128 | 84 | 1179 | 13 |
| SETS4500-7 | 4500 | 135 | 84 | 1278 | 14 |
| SETS5000-7 | 5000 | 142 | 84 | 1344 | 15 |
Product Highlights
- Flexible Model Selection: Four tank heights and multiple capacities help match storage volume to the available space.
- Insulated Thermal Storage: EPDM-lined construction and R-18 side/lid insulation support heat retention.
- Separate Heat-Exchange Circuits: Optional copper coils can transfer heat without mixing the connected circuit fluid with stored tank fluid.
- Configurable Connections: Specify port size and position using SunEarth’s connection-location diagram.
- Owner Maintenance Guidance: The installation manual includes a checklist for water level, temperature, seals, and system components.
Technical Documents
- SunEarth SETS Specification Sheet
- SunEarth 2026 Product Catalog (PDF)
- SETS Installation Manual & Owner Maintenance Checklist (PDF)
- SETS Ten-Year Limited Product Warranty (PDF)
- Copper Heat-Exchange Coil Drawing — Rev. A (PDF; accessory reference)
