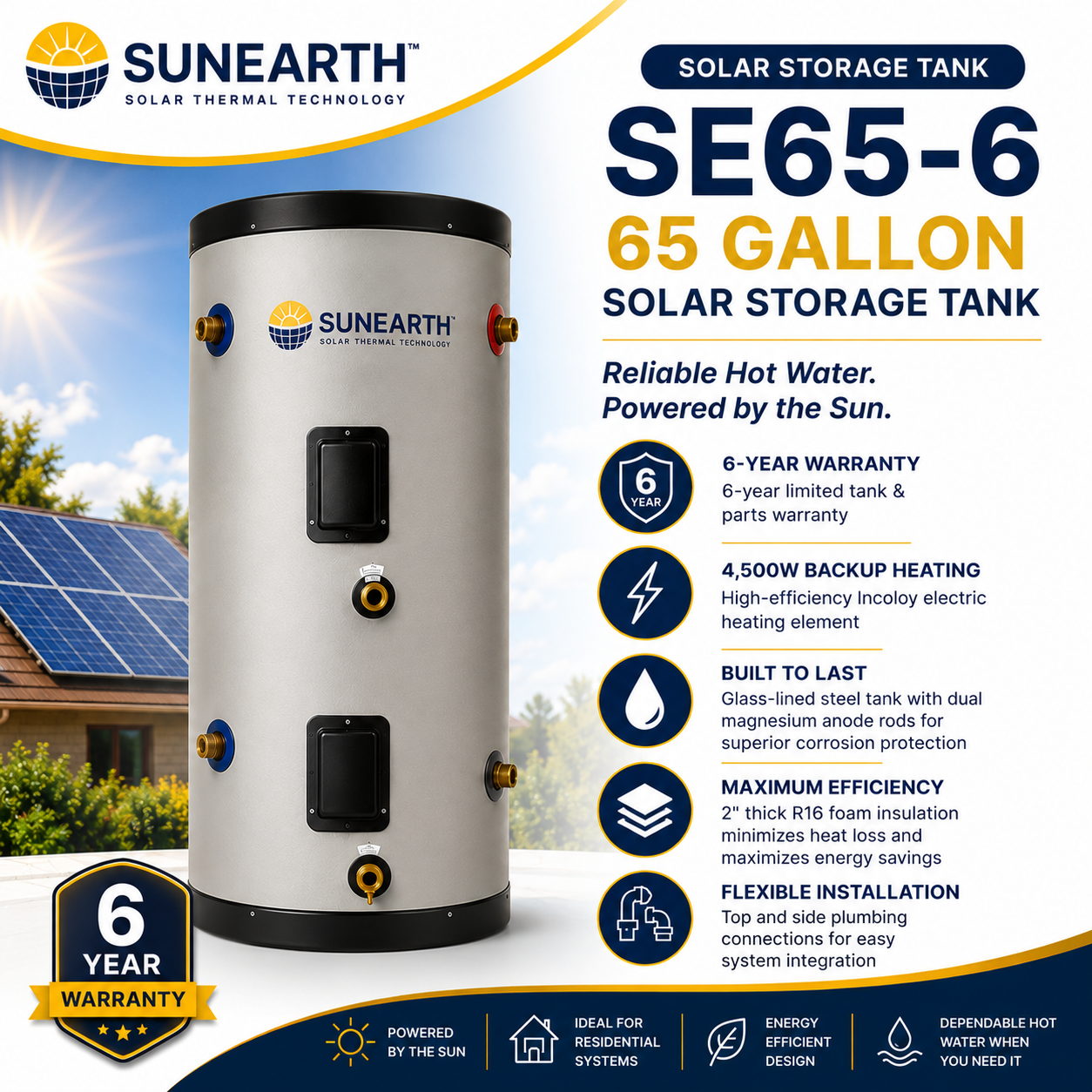

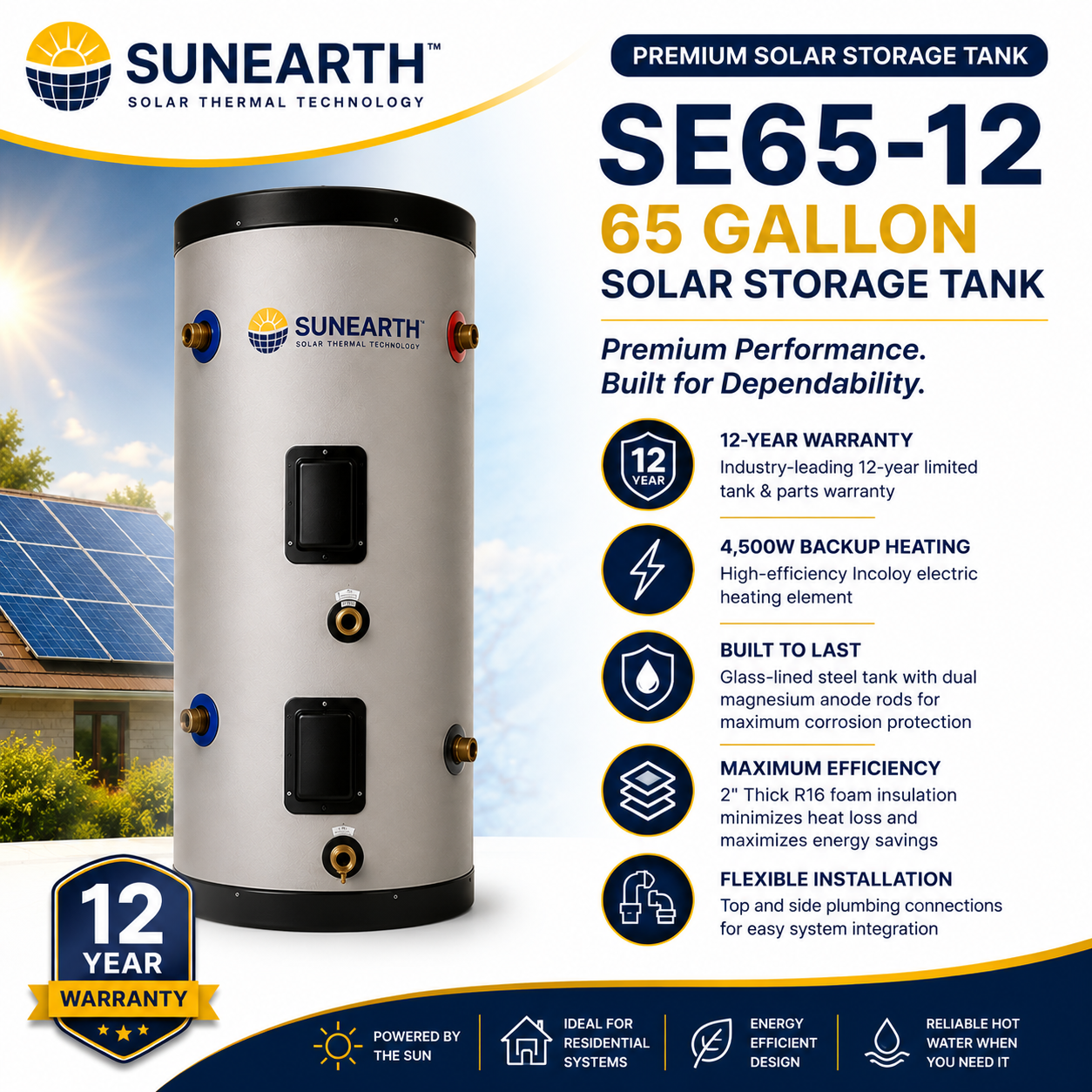

SunEarth SE65-6 & SE65-12 Premium Solar Storage Tanks
65-Gallon Solar Thermal Storage • 4,500W Electric Backup • 6-Year or 12-Year Warranty Options
The SunEarth Premium SE Series solar storage tanks are engineered for residential solar water-heating systems requiring dependable hot water storage and supplemental electric heating.
Suitable for direct (open-loop) solar installations or indirect systems incorporating an external heat exchanger, the SE Series provides a flexible storage solution for residential solar thermal applications.
The 65-gallon models feature fully glass-lined tank construction, 2-inch R16 insulation, and a 4,500-watt electric heating element to maintain water temperature when solar heating is insufficient.
Available in six-year and twelve-year warranty versions, the models offer different component configurations. The twelve-year model features an Incoloy heating element and dual magnesium anode rods, while the six-year model includes a magnesium anode rod with stainless steel core.
Top and side plumbing connections, factory-insulated side ports, prewired temperature sensor provision, and a brass drain valve make the SE Series suitable for a variety of installation layouts.
Available Models
| SKU | Capacity | Warranty | Heating Element |
|---|---|---|---|
| SE65-6 | 65 Gallons | 6-Year Limited | 4,500W Standard |
| SE65-12 | 65 Gallons | 12-Year Limited | 4,500W Incoloy |
Key Features & Benefits
| Feature | Details & Benefits |
|---|---|
| 65-Gallon Storage | Designed for residential solar domestic hot water storage applications. |
| Direct & Indirect Applications | Suitable for direct solar heating or indirect systems using an external heat exchanger. |
| 4,500W Electric Backup | Supplemental electric heating maintains hot water when solar energy is insufficient. |
| Premium Heating Element | SE65-12 features an Incoloy heating element. |
| Glass-Lined Steel Tank | Corrosion-resistant lining helps protect the water storage vessel. |
| Anode Protection | SE65-6: magnesium anode with stainless steel core. SE65-12: dual magnesium anode rods. |
| R16 Foam Insulation | Two-inch-thick insulation reduces standby heat loss. |
| Flexible Connections | Top and side plumbing ports simplify tank integration. |
| Temperature Sensor Provision | Factory prewired for a tank temperature sensor; sensor not included. |
| Safety & Service | Factory-installed temperature and pressure relief valve and tamper-resistant brass drain valve. |
| Limited Warranty Options | Six-year or twelve-year tank and parts warranty, depending on selected model. |
Technical Specifications
| Specification | SE65-6 | SE65-12 |
|---|---|---|
| Manufacturer | SunEarth | SunEarth |
| Product Series | Premium SE | Premium SE |
| Tank Capacity | 65 Gallons | 65 Gallons |
| Application | Solar DHW Storage | Solar DHW Storage |
| System Type | Direct / External HX | Direct / External HX |
| Electric Backup | 4,500 Watts | 4,500 Watts |
| Heating Element | Standard | Incoloy |
| Tank Construction | Glass-Lined Steel | Glass-Lined Steel |
| Anode Protection | Magnesium Anode with Stainless Steel Core | Dual Magnesium Anodes |
| Insulation | 2" R16 Foam | 2" R16 Foam |
| Connections | Top & Side | Top & Side |
| Temperature Sensor | Prewired / Not Included | Prewired / Not Included |
| T&P Relief Valve | Factory Installed | Factory Installed |
| Drain Valve | Brass | Brass |
| Warranty | 6-Year Limited | 12-Year Limited |
Product Highlights
- 65-gallon premium residential solar storage tank.
- Suitable for direct solar systems or indirect systems incorporating external heat exchangers.
- 4,500-watt electric backup heating.
- Glass-lined steel construction.
- Incoloy heating element on SE65-12.
- Model-specific magnesium anode protection.
- Two-inch R16 foam insulation.
- Top and side plumbing connections.
- Factory-installed T&P relief valve and brass drain valve.
- Six-year and twelve-year limited warranty versions.
Technical Documents
- SunEarth 2026 Product Catalog (PDF)
- SunEarth SE Solar Tank Specification Sheet
- SunEarth SE Series 6-Year Warranty Statement
- SunEarth SE Series 12-Year Warranty Statement
-
SE80 & SE120 Operations and Maintenance Manual
Installation Note: Verify exact model, electrical requirements, installation clearances, plumbing connections, and applicable warranty terms before installation.
