SunEarth 809-SS-12V-DC 12V DC Stainless Steel Circulator Pump
SunEarth 809-SS-12V-DC 12V DC Stainless Steel Circulator Pump is backordered and will ship as soon as it is back in stock.

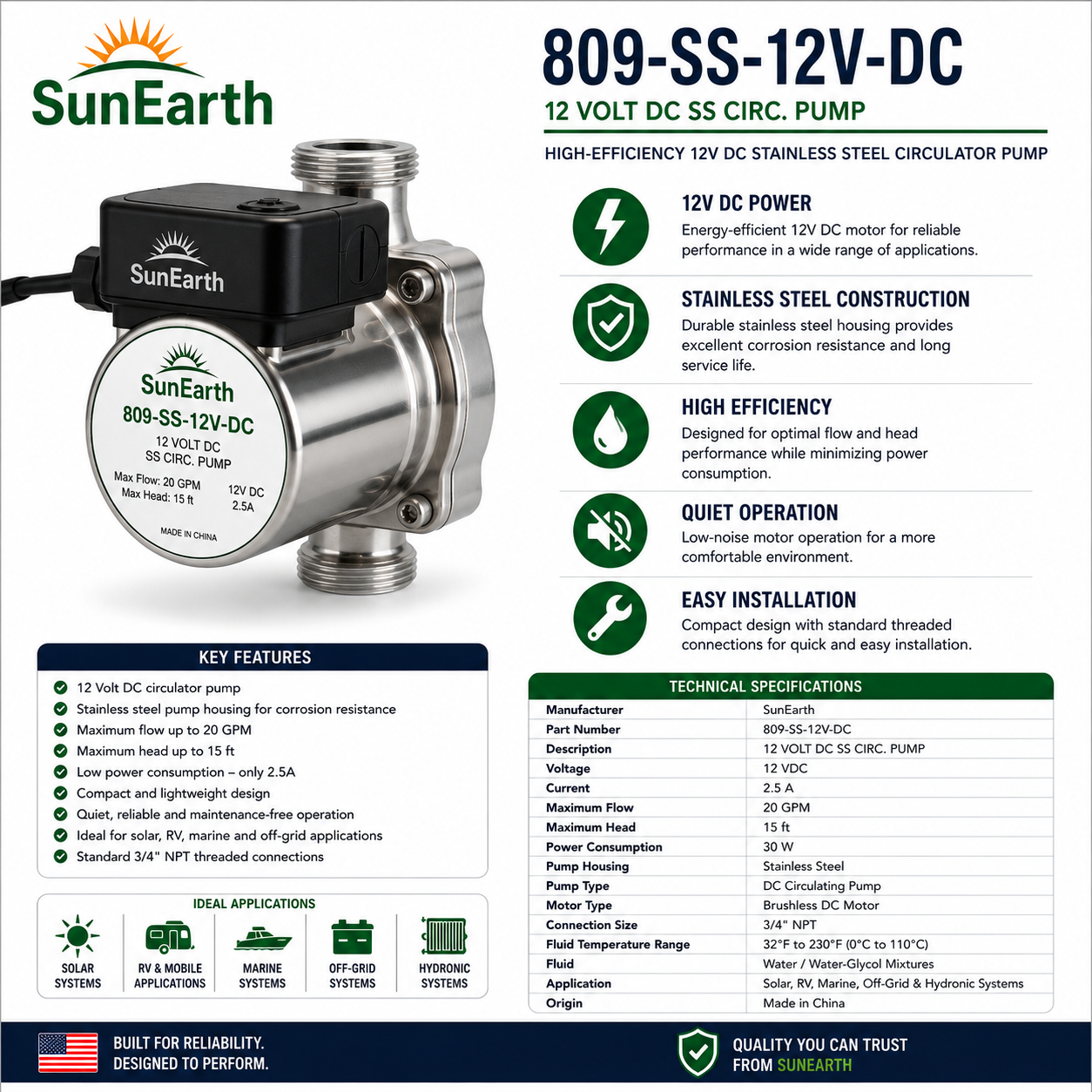

SunEarth 809-SS-12V-DC Stainless Steel Circulator Pump
12 VDC | Stainless Steel Housing | Solar Thermal Circulation
The SunEarth 809-SS-12V-DC is a stainless steel DC circulator listed for low-voltage circulation. Select the pump to match the system’s required flow, head, electrical supply and fluid compatibility.
The reference specifications below describe March Pump’s standard 809-SS 12V model, part 0809-0215-0100. Confirm that SunEarth supplies this exact configuration before ordering or using these ratings for system design.
Key Features & Benefits
| Feature | Details |
|---|---|
| 12 VDC operation | Low-voltage DC supply; verify the installed power source. |
| Stainless steel housing | Stainless steel front and rear pump housings on the March reference model. |
| Magnetic drive | Seal-less centrifugal design on the March reference model. |
| Inline connections | 1/2-inch male pipe thread inlet and outlet on the March reference model. |
Technical Specifications
| Specification | Details |
|---|---|
| Supplier / SKU | SunEarth / 809-SS-12V-DC |
| Reference Manufacturer Model | March 809-SS 12V; part 0809-0215-0100. SunEarth configuration pending confirmation. |
| Rated Voltage | 12 VDC |
| Motor Type | Brush-type DC, per March reference model |
| Rated Current | 1.1 A, per March reference model |
| Motor Output | 0.01 HP / 0.007 kW; motor output rating, not electrical input power |
| Maximum Flow | 5 US GPM (18.9 L/min), per March reference model |
| Maximum Head | 7.1 ft (2.1 m), per March reference model |
| Inlet / Outlet | 1/2-inch MPT / 1/2-inch MPT, per March reference model |
| Maximum Internal Pressure | 150 PSI, per March reference model; not pump-generated head |
| Maximum Liquid Temperature | 250°F (121°C), per March reference model |
| Wetted Materials | Stainless steel, Teflon, silicone and Ryton composite; verify supplied configuration |
| Installation | Flooded suction required; not self-priming; do not run dry |
| Fluid Compatibility | Confirm the specific fluid, concentration and temperature with the manufacturer |
| Product Dimensions | Pending supplied-configuration confirmation; reference drawing available for review |
| Product Weight | Not confirmed in reviewed sources; verify with supplier |
| Warranty | SunEarth-supplied coverage pending confirmation |
Product Highlights
- SunEarth SKU: 809-SS-12V-DC.
- 12 VDC stainless steel circulator.
- Confirm the supplied motor and pump configuration before selection.
Installation & Selection
Maintain flooded suction and never run the pump dry. Use the manufacturer’s performance curve to select the operating point. Maximum flow and maximum head are separate ratings. Confirm installation instructions and fluid suitability before use.
Technical Documents
SunEarth 809-SS-12V-DC 12V DC Stainless Steel Circulator Pump
