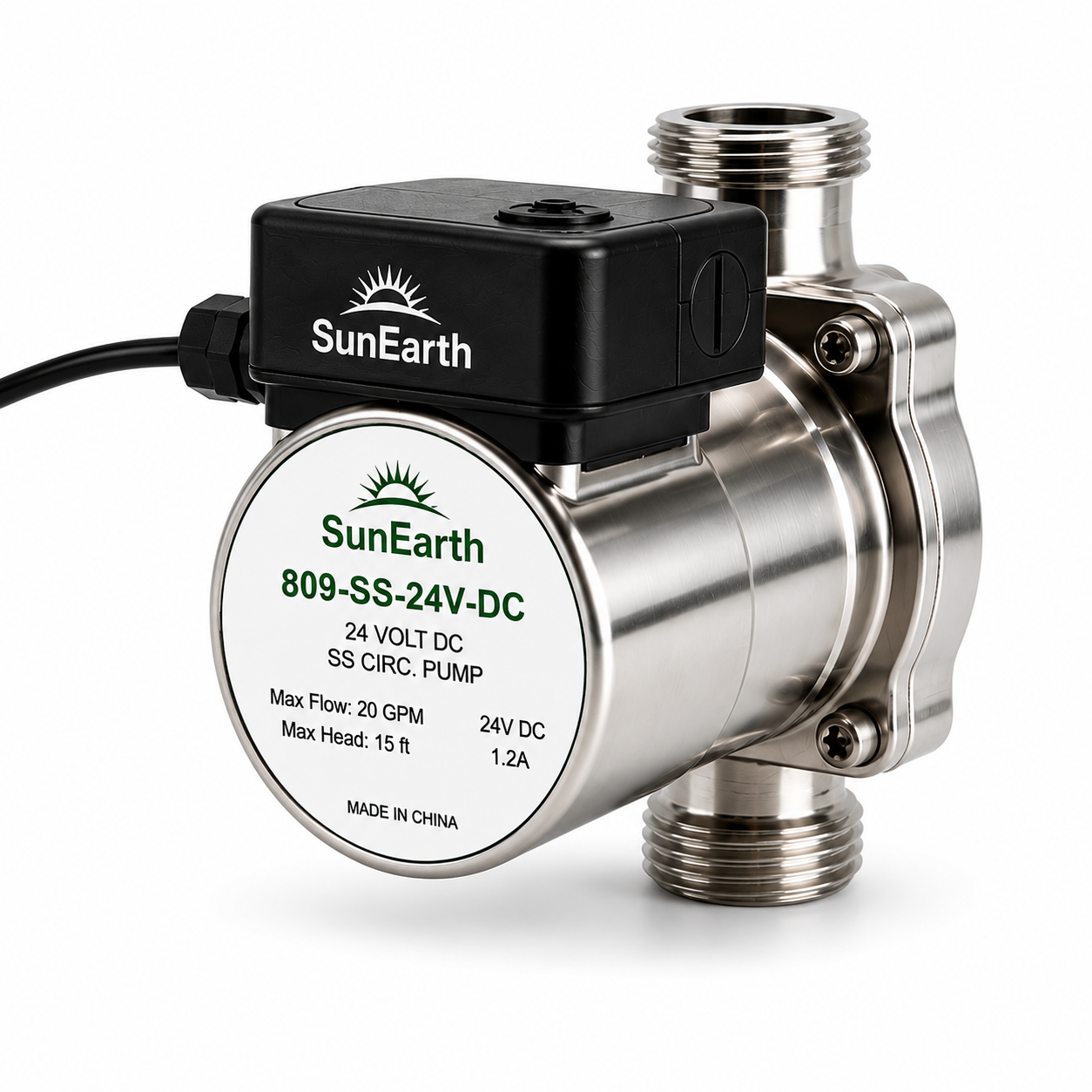

SunEarth 809-SS-24V-DC 24 Volt DC Stainless Steel Circulator Pump
SunEarth 809-SS-24V-DC 24 Volt DC Stainless Steel Circulator Pump is backordered and will ship as soon as it is back in stock.
SunEarth 809-SS-24V-DC Stainless Steel Circulator Pump
24 VDC | Stainless Steel Housing | Solar Thermal Circulation
The SunEarth 809-SS-24V-DC is a stainless steel DC circulator listed for low-voltage circulation. Select the pump to match the system’s required flow, head, electrical supply and fluid compatibility.
The reference specifications below describe March Pump’s standard 809-SS 24V model, part 0809-0215-0200. Confirm that SunEarth supplies this exact configuration before ordering or using these ratings for system design.
Key Features & Benefits
| Feature | Details |
|---|---|
| 24 VDC operation | Low-voltage DC supply; verify the installed power source. |
| Stainless steel housing | Stainless steel front and rear pump housings |
| Magnetic drive | Seal-less centrifugal design |
| Inline connections | 1/2-inch male pipe thread inlet and outlet |
Technical Specifications
| Specification | Details |
|---|---|
| Supplier / SKU | SunEarth / 809-SS-24V-DC |
| Reference Manufacturer Model | 809-SS 24V; part 0809-0215-0200. |
| Rated Voltage | 24 VDC |
| Motor Type | Brush-type DC |
| Rated Current | 0.55 A, |
| Motor Output | 0.01 HP / 0.007 kW; motor output rating, not electrical input power |
| Maximum Flow | 5 US GPM (18.9 L/min) |
| Maximum Head | 7.1 ft (2.1 m) |
| Inlet / Outlet | 1/2-inch MPT / 1/2-inch MPT |
| Maximum Internal Pressure | 150 PSI |
| Maximum Liquid Temperature | 250°F (121°C) |
| Wetted Materials | Stainless steel, Teflon, silicone and Ryton composite |
| Installation | Flooded suction required; not self-priming; do not run dry |
Product Highlights
- SunEarth SKU: 809-SS-24V-DC.
- 24 VDC stainless steel circulator.
Installation & Selection
Maintain flooded suction and never run the pump dry. Use the manufacturer’s performance curve to select the operating point. Maximum flow and maximum head are separate ratings. Confirm installation instructions and fluid suitability before use.
