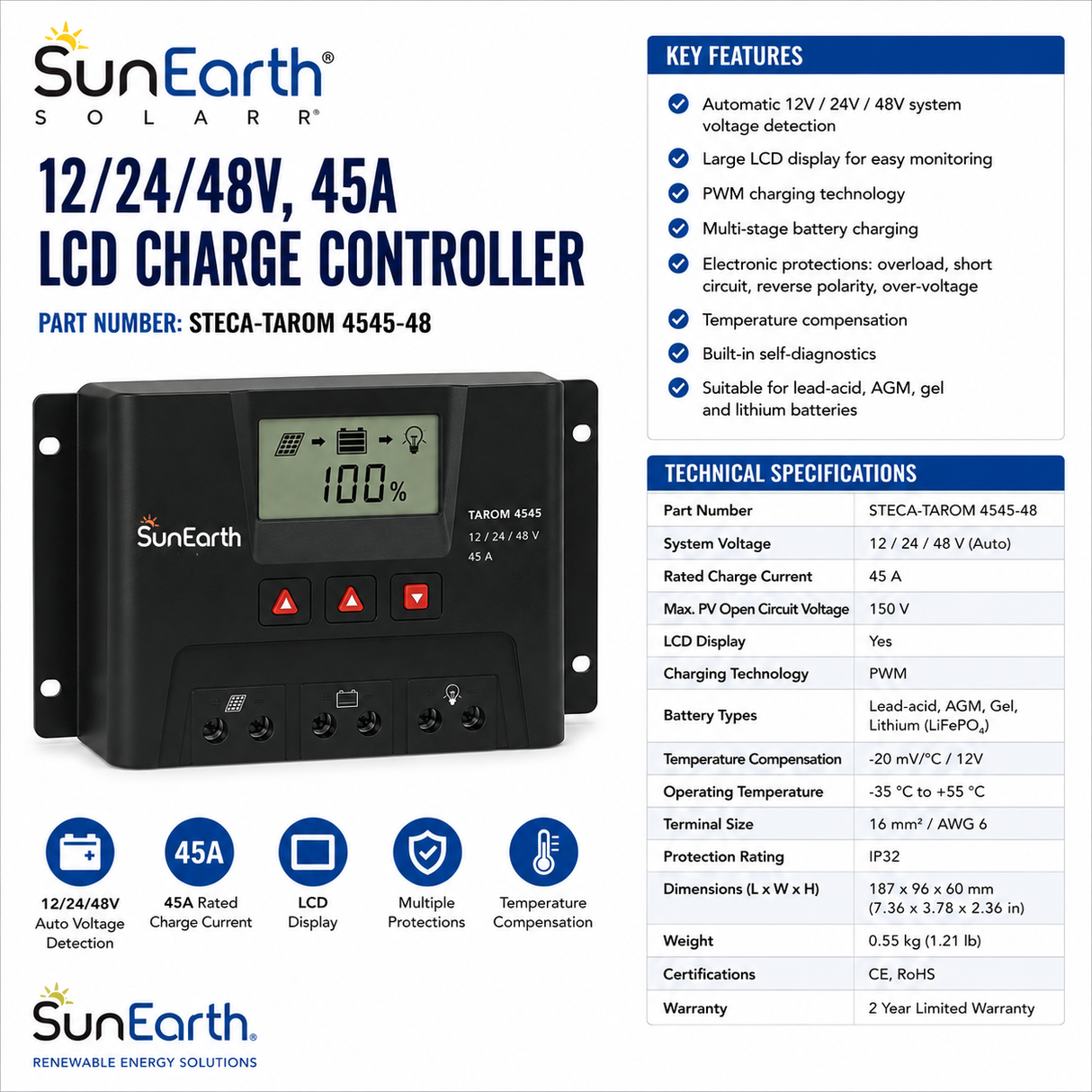

SunEarth Charge Controller 12/24/48V 45A with LCD
SunEarth Charge Controller 12/24/48V 45A with LCD is backordered and will ship as soon as it is back in stock.

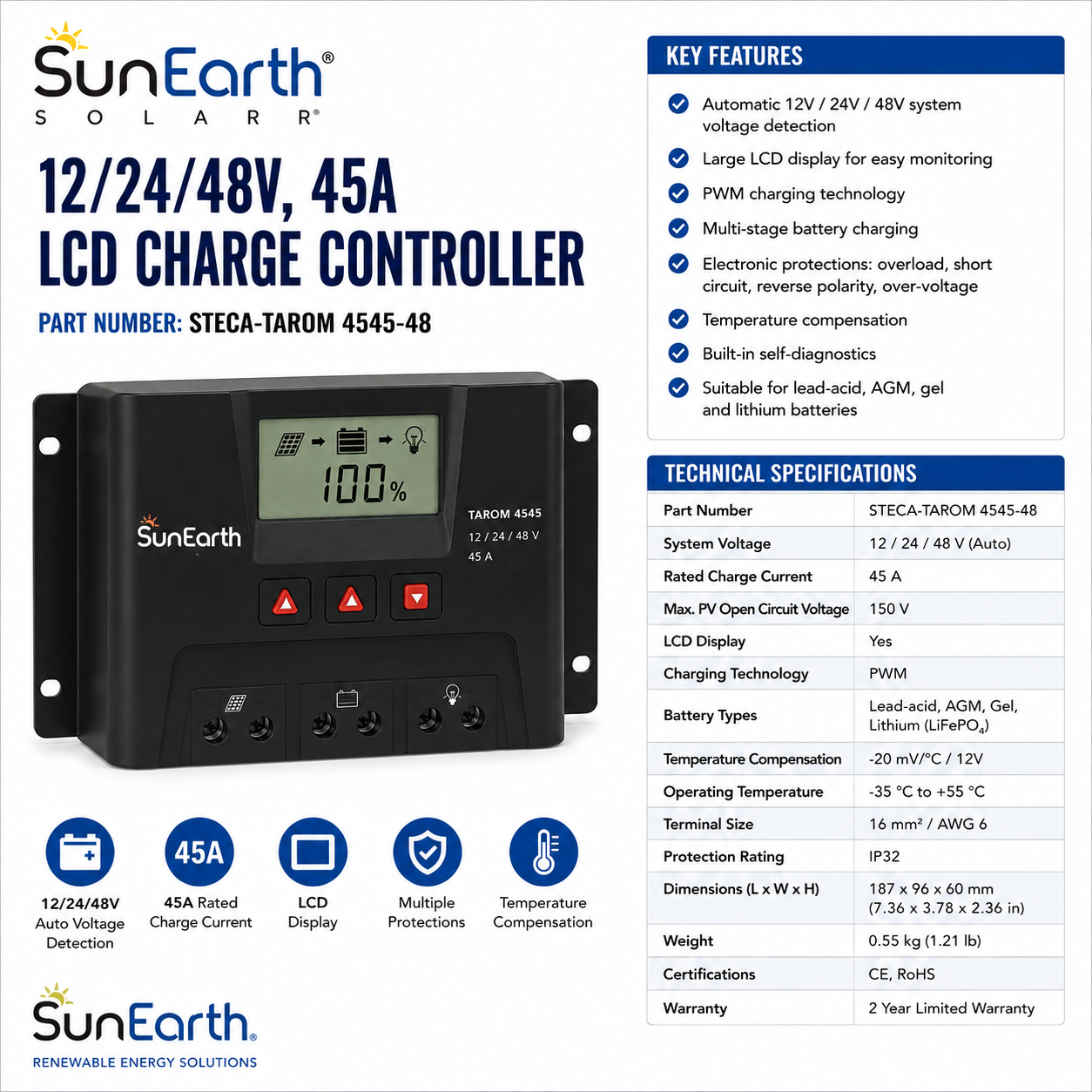

Steca Tarom 4545-48 Solar Charge Controller – 12/24/48V, 45A
SunEarth Part Number: STECA-TAROM 4545-48
The Steca Tarom 4545-48 is a PWM solar charge controller for stand-alone photovoltaic systems with 12V, 24V, or 48V battery banks. It supports up to 45A of module current and 45A of load current.
Multistage charging, temperature compensation, and state-of-charge monitoring help manage battery charging. A backlit graphical LCD displays system information, while integrated logging supports performance review.
Product Highlights
- Automatic system-voltage detection.
- Backlit graphical LCD with menu-driven controls.
- Multistage PWM charging and temperature compensation.
- State-of-charge-based load management.
- Integrated data logger and microSD slot.
- Two configurable multifunction contacts.
Technical Specifications
| Specification | Details |
|---|---|
| Manufacturer / Brand | Steca |
| Model | Tarom 4545-48 |
| SunEarth Part Number | STECA-TAROM 4545-48 |
| Control Method | PWM |
| Battery System Voltage | 12 / 24 / 48 VDC |
| Module Current | 45 A |
| Load Current | 45 A |
| PV Open-Circuit Voltage Limit | Less than 100 V at the minimum operating temperature |
| Battery Types | Flooded lead-acid and gel/AGM; configure the correct battery type in the controller menu |
| Display | Backlit graphical LCD |
| Own Consumption | 30 mA |
| Ambient Temperature | -10°C to +60°C (14°F to 140°F) |
| Protection Rating | IP31 |
| Dimensions (X × Y × Z) | 218 × 134 × 65 mm (approximately 8.58 × 5.28 × 2.56 in.) |
| Weight | 800 g (approximately 1.76 lb.) |
| Terminals: Fine / Single Wire | 25 / 35 mm²; AWG 4 / 2 |
| Interfaces | StecaLink Bus and open Steca UART interface |
Electronic Protection
Protection functions cover overcharging, deep discharge, reverse polarity, short circuits, reverse current at night, overtemperature, and overload. The controller also disconnects loads during battery overvoltage.
Installation Notes
Do not connect an inverter to the controller’s load output. Follow the OEM manual for wiring, protection, battery settings, and installation conditions. Lithium battery compatibility is not established by the reviewed documentation.
Technical Documents
