SunEarth Custom Absorber 4x8
SunEarth Custom Absorber 4x8 is backordered and will ship as soon as it is back in stock.

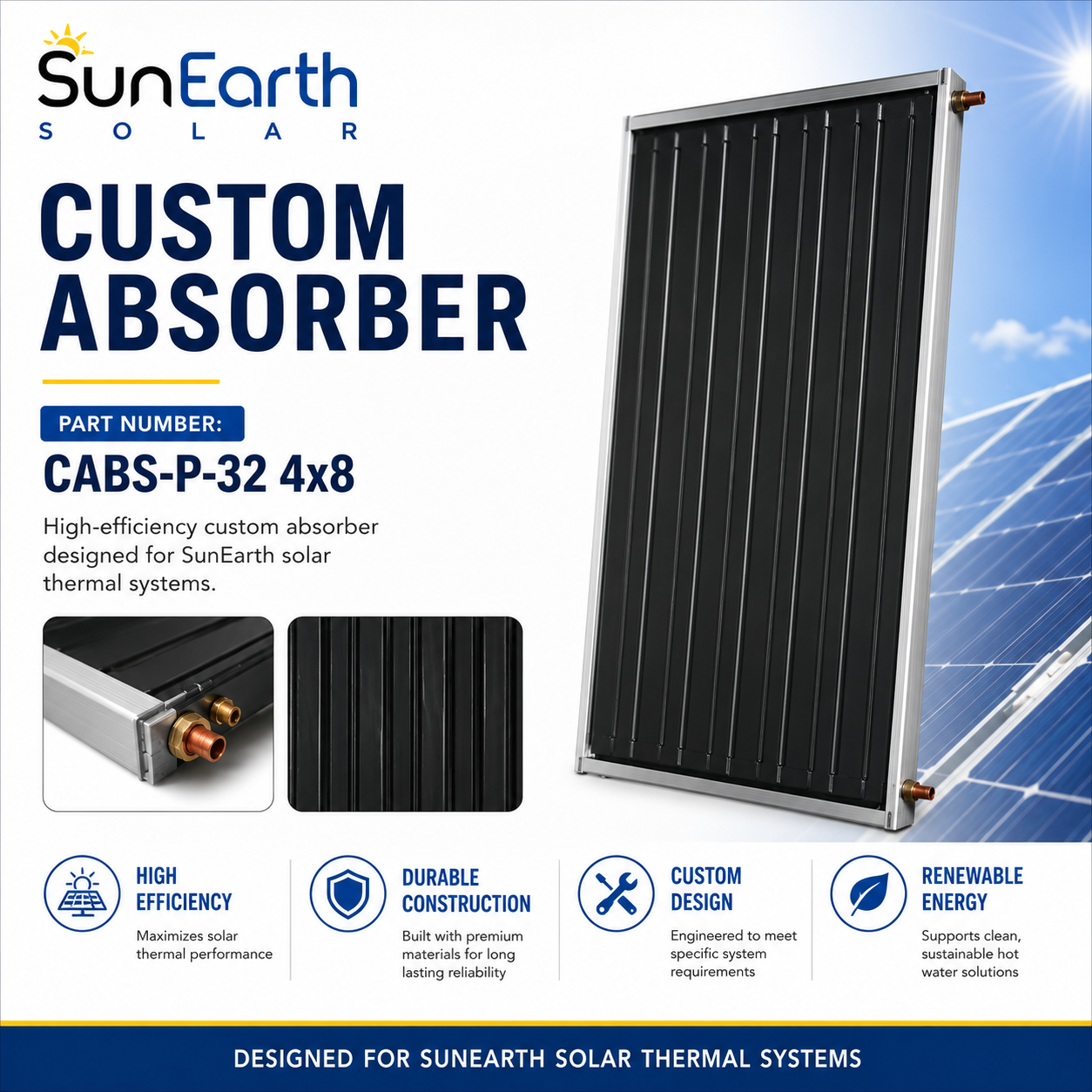

SunEarth Custom Painted Absorber – 4 × 8
Part Number: CABS-P-32
The SunEarth CABS-P-32 is a custom painted solar thermal absorber listed in a nominal 4 ft. × 8 ft. size. It is an absorber component for a collector assembly.
SunEarth’s SunBurst construction uses a roll-formed copper sheet continuously soldered to Type M copper headers and risers. Before ordering a replacement, confirm the finished plate dimensions, header size, connection locations, and compatibility with the existing collector.
Product Highlights
- Nominal size: 4 ft. × 8 ft.
- Finish: Painted absorber.
- Construction reference: SunBurst all-copper absorber technology.
- Application: Replacement in compatible solar thermal collectors.
- Manufacturer part number: CABS-P-32.
Technical Specifications
| Specification | Details |
|---|---|
| Manufacturer | SunEarth |
| Part Number | CABS-P-32 |
| Product | Custom painted absorber |
| Nominal Size | 4 ft. × 8 ft. |
| Nominal Area | 32 sq. ft.; not a verified finished plate area |
SunBurst Construction Reference
| Specification | Family Reference |
|---|---|
| Absorber Sheet | 0.008 in. roll-formed copper |
| Sheet Attachment | Continuously soldered using non-corrosive solder paste |
| Headers and Risers | Type M copper |
| Riser Size | Minimum ½ in. outside diameter |
| Riser-to-Header Joints | Phosphorus brazing alloy containing at least 5% silver; AWS BCuP-3 |
| Maximum Operating Pressure | 160 psig |
| Published Laboratory Test | 400 psig for one hour without leakage or rupture; UL 1279, Section 30.2 |
Standard PS/BS32 Plate Reference
These approved SunEarth values apply to the standard PS/BS32 model. They do not establish the finished dimensions or hydraulic specifications of custom part CABS-P-32.
| Specification | PS/BS32 Reference |
|---|---|
| Gross Area | 32.79 sq. ft. |
| Dry Weight | 26 lb. |
| Fluid Capacity | 1.00 US gal. |
| Water Design Flow | 0.83 GPM |
| Pressure Drop at Design Flow | 0.018 psig |
| Maximum Flow | 12 GPM |
| Maximum Pressure | 160 psig |
| Header Width | 51⅜ in. |
| Header Center-to-Center Spacing | 93⅝ in. |
Technical Documents
SunEarth Custom Absorber 4x8
