SunEarth Custom Absorber 4x8 Painted Absorber 1 1/2 HDR
SunEarth Custom Absorber 4x8 Painted Absorber 1 1/2 HDR is backordered and will ship as soon as it is back in stock.

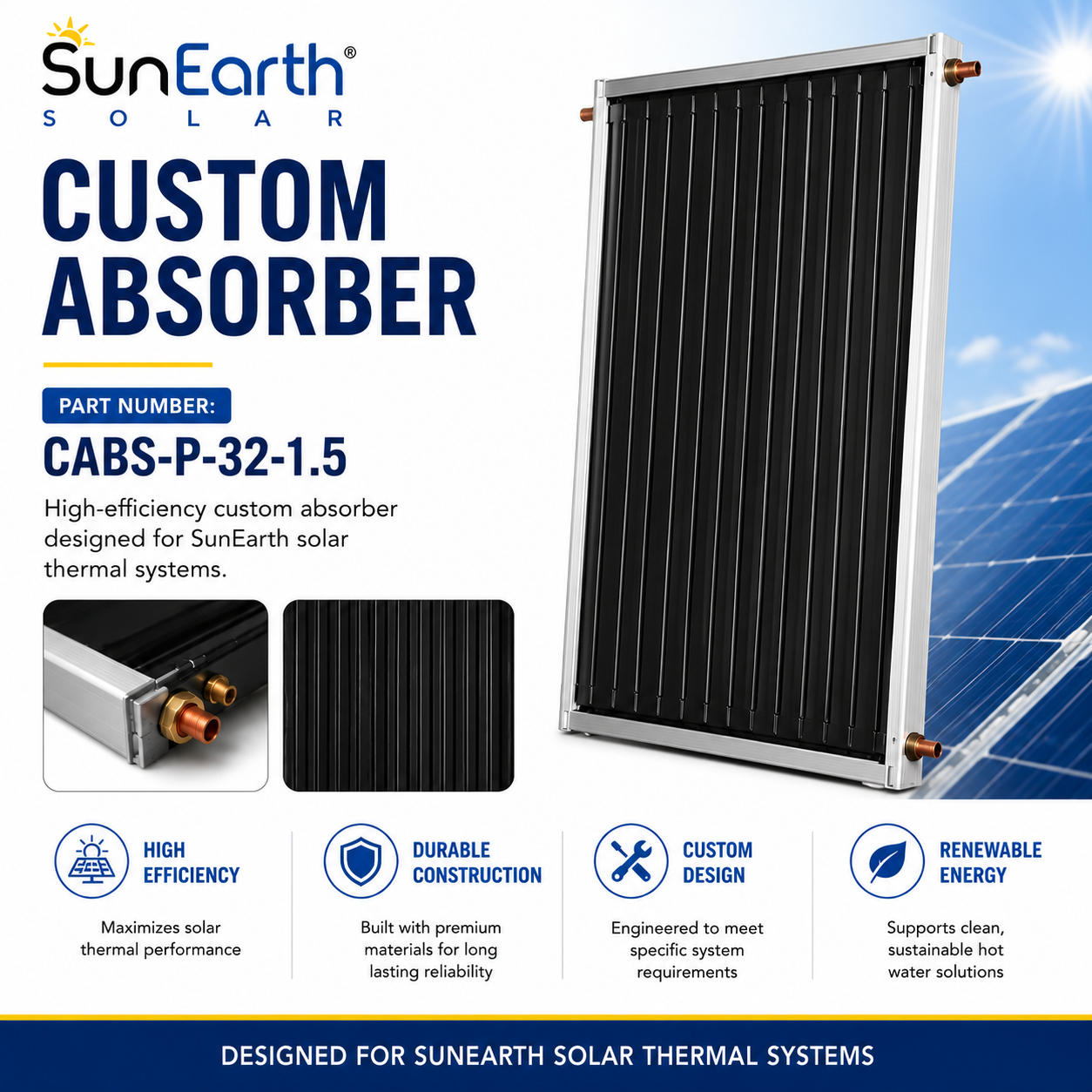

SunEarth Custom Painted Absorber – 4 × 8 with 1½″ Headers
Part Number: CABS-P-32-1.5
The SunEarth CABS-P-32-1.5 is a custom painted solar thermal absorber listed in a nominal 4 ft. × 8 ft. size with 1½-inch headers. It is an absorber component for a collector assembly.
SunEarth’s SunBurst construction uses a roll-formed copper sheet continuously soldered to Type M copper headers and risers. Before ordering a replacement, confirm the finished plate dimensions, header spacing, connection locations, and compatibility with the existing collector.
Product Highlights
- Nominal size: 4 ft. × 8 ft.
- Finish: Painted absorber.
- Header size: 1½ in. nominal.
- Product type: Custom solar thermal absorber.
- Part number: CABS-P-32-1.5.
Technical Specifications
| Specification | Details |
|---|---|
| Manufacturer | SunEarth |
| Part Number | CABS-P-32-1.5 |
| Product | Custom painted absorber |
| Nominal Size | 4 ft. × 8 ft. |
| Nominal Area | 32 sq. ft.; not a verified finished plate area |
| Header Size | 1½ in. nominal |
SunBurst Construction Reference
| Specification | Family Reference |
|---|---|
| Absorber Sheet | 0.008 in. roll-formed copper |
| Sheet Attachment | Continuously soldered using non-corrosive solder paste |
| Headers and Risers | Type M copper |
| Riser Size | Minimum ½ in. outside diameter |
| Riser-to-Header Joints | Phosphorus brazing alloy containing at least 5% silver; AWS BCuP-3 |
| Maximum Operating Pressure | 160 psig |
| Published Laboratory Test | 400 psig for one hour without leakage or rupture; UL 1279, Section 30.2 |
Technical Documents
SunEarth Custom Absorber 4x8 Painted Absorber 1 1/2 HDR
