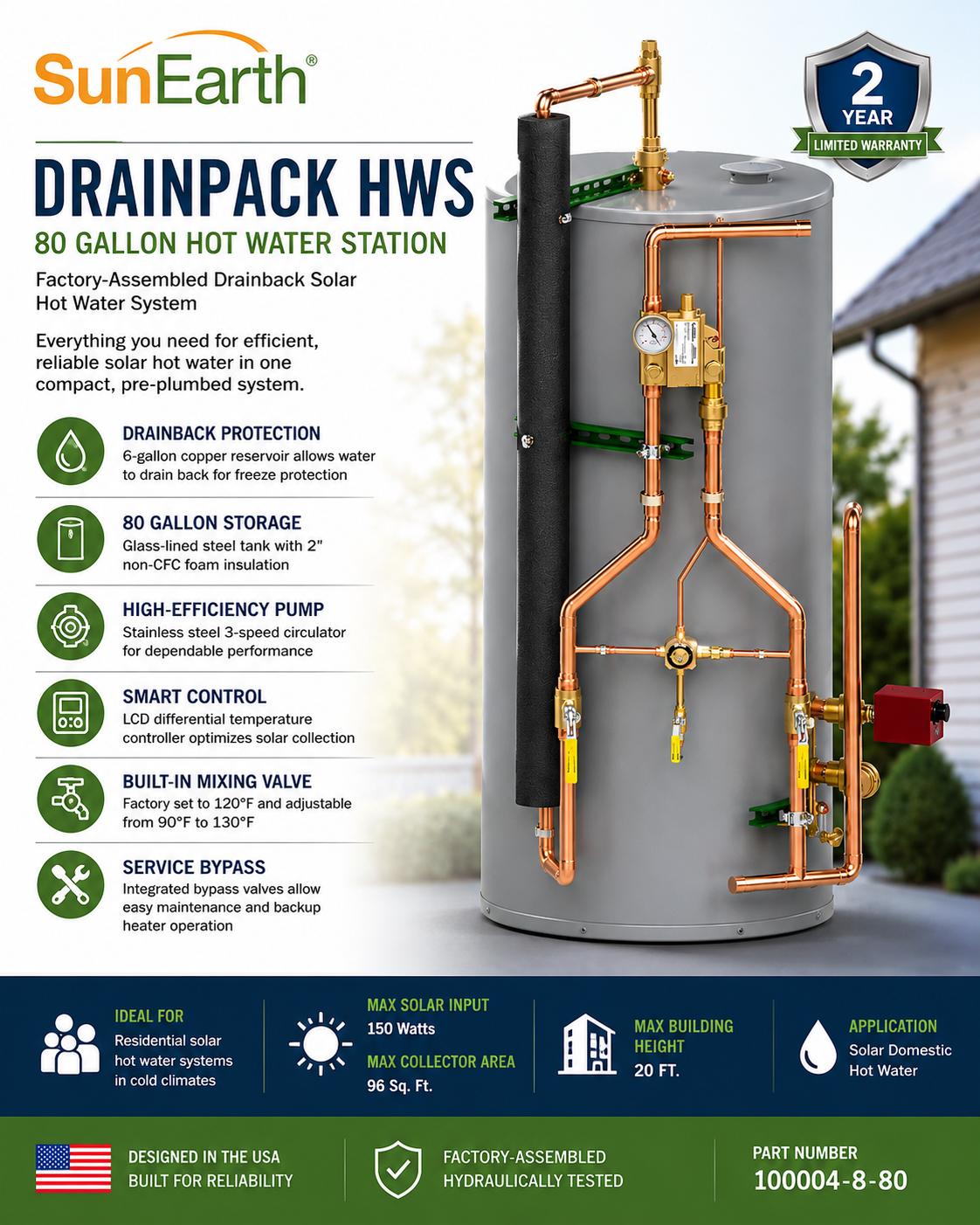

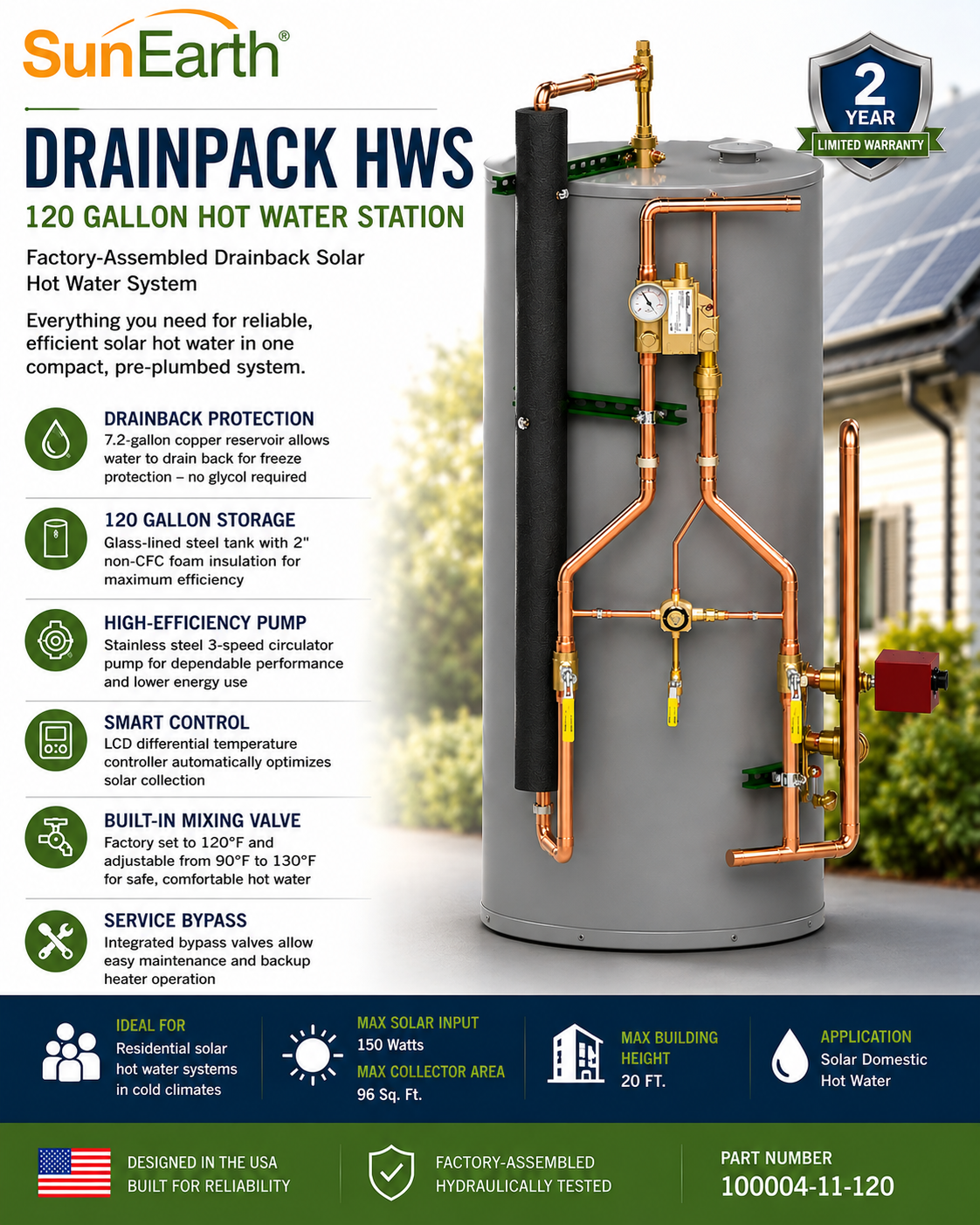

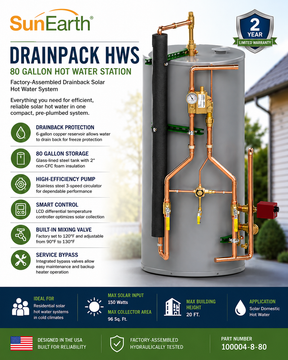

SunEarth DrainPack Hot Water Station — 80 & 120 Gallon
100004-8-80 / 100004-11-120 | Solar Drainback Water Heating
The SunEarth DrainPack Hot Water Station combines solar hot water storage, circulation and controls in a factory-assembled package designed for SunEarth Cascade drainback systems. Each station is tested for hydraulic integrity to reduce on-site assembly and intermediate plumbing connections.
Choose an 80-gallon or 120-gallon glass-lined storage tank with a matching copper drainback reservoir. Both configurations include a copper double-wall heat exchanger, stainless steel circulator, differential temperature controller, potable expansion tank, thermostatic mixing valve and service bypass valves.
When the pump stops, properly pitched collector piping allows the heat-transfer fluid to drain by gravity into the reservoir. Freeze protection depends on correct system design, installation and maintenance; fluid selection must follow SunEarth’s requirements.
Key Features & Benefits
| Feature | Benefit |
|---|---|
| Factory-assembled station | Pre-engineered and tested for hydraulic integrity to simplify installation. |
| Gravity drainback | When circulation stops, correctly pitched collector piping allows fluid to return to the reservoir. |
| Model-specific copper reservoir | 6.0 gallons with the 80-gallon model; 7.2 gallons with the 120-gallon model. |
| Double-wall copper heat exchanger | Transfers collected solar heat to stored potable water through the tank wall. |
| Stainless steel circulator | 1/12 HP pump with multiple speed settings. |
| Differential temperature controller | Uses collector and tank sensor readings to manage circulation. |
| Thermostatic mixing valve | Factory set to 120°F; adjustable from 90°F to 130°F. |
| Service bypass valves | Allow a separate backup water heater to operate during solar-system service. |
| Insulated glass-lined tank | Steel storage vessel with 2-inch non-CFC foam insulation. |
| Reservoir sight tube | Supports fluid-level checks during commissioning and maintenance. |
Model Comparison
| Specification | 80 Gallon | 120 Gallon |
|---|---|---|
| Manufacturer SKU | 100004-8-80 | 100004-11-120 |
| Nominal storage capacity | 80 gallons | 120 gallons |
| Product Dimensions (H × L × W) | 68 × 29 × 24.5 inches | 68 × 32.5 × 28.5 inches |
| Product Weight | 273 lb approximate gross weight | 440 lb approximate gross weight |
| Drainback reservoir capacity | 6.0 gallons | 7.2 gallons |
Technical Specifications
| Specification | Details |
|---|---|
| Manufacturer | SunEarth |
| Product family | DrainPack Hot Water Station |
| Application | Solar domestic water heating with a compatible Cascade drainback system |
| Tank construction | Glass-lined steel |
| Tank insulation | 2-inch non-CFC foam |
| Heat exchanger | 5/8-inch nominal copper double-wall tubing |
| Drainback reservoir | Brazed copper with elastomeric insulation |
| Circulator pump | 1/12 HP stainless steel; multiple speeds |
| Controller | LCD differential controller with collector and tank temperature sensors |
| Mixing valve | 3/4-inch nominal lead-free bronze; factory set to 120°F, adjustable 90–130°F |
| Potable expansion tank | 2.1 gallons |
| Potable plumbing diameter | 3/4 inch |
| Solar circuit electrical supply | 120 V |
| Maximum solar electrical input | 150 W (electrical input, not thermal output) |
| Optional backup element | 4,500 W at 240 V; confirm supplied configuration |
| Maximum collector area | 96 sq. ft.; collectors plumbed in parallel |
| Maximum building height | 20 ft.; based on 20 ft. of piping to collectors |
| Warranty | Pending manufacturer confirmation |
Product Highlights
- Two storage configurations with model-specific dimensions and reservoir capacities.
- Integrated copper reservoir receives collector-loop fluid when circulation stops.
- Factory assembly combines storage, heat exchange, pumping and temperature controls.
- Mixing valve and service bypass support temperature control and service access.
