SunEarth Heat Exchanger SP110X-30
SunEarth Heat Exchanger SP110X-30 is backordered and will ship as soon as it is back in stock.

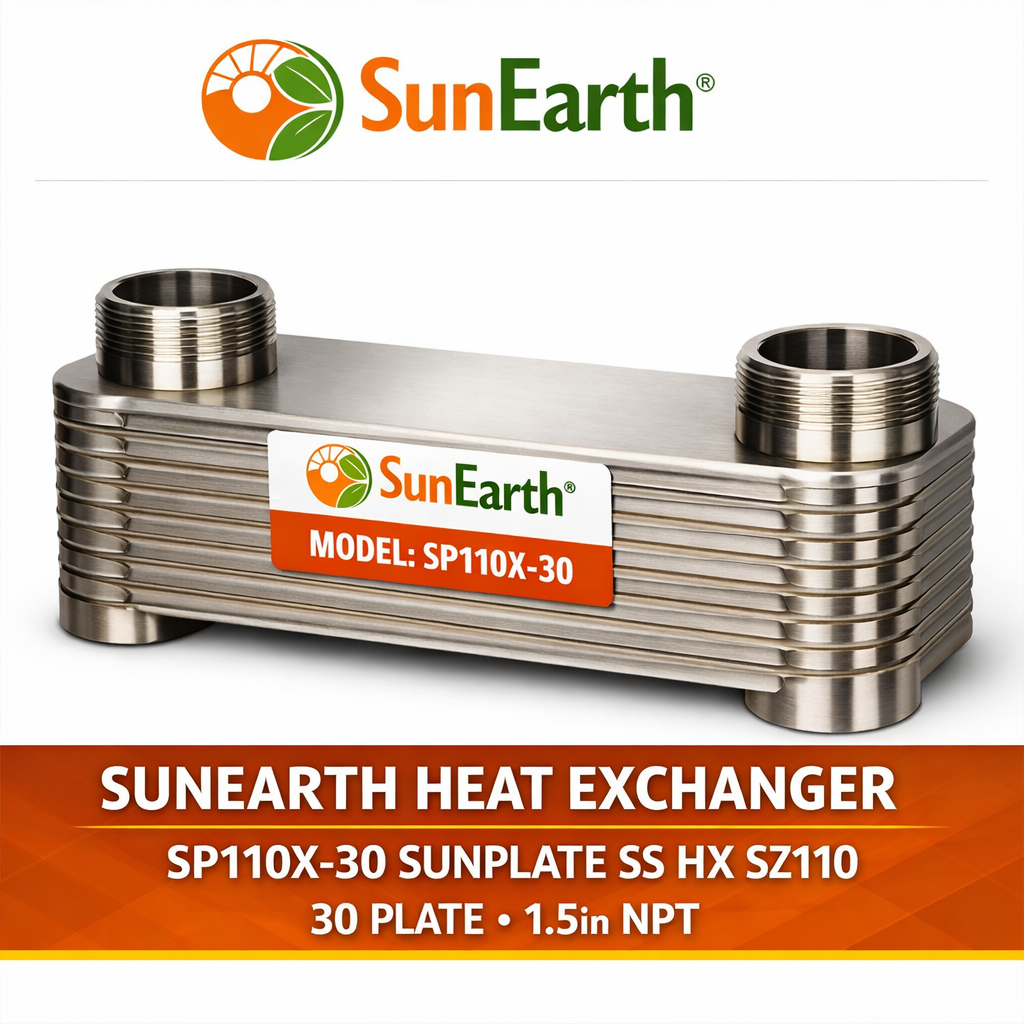

SunEarth SunPlate SP110X-30 Heat Exchanger
The SunEarth SunPlate SP110X-30 is a copper-brazed plate heat exchanger listed for solar thermal and hydronic applications. Its stainless-steel plate construction provides heat transfer in a compact assembly.
This model is listed with 30 plates and 1½-inch NPT connections. Select the exchanger using the required heat load, fluid temperatures, flow rates and allowable pressure drop.
Key Features
- Stainless-Steel Plates: Plate construction designed for heat transfer between system fluids.
- Copper Brazing: Brazed plate assembly for compatible solar and hydronic applications.
- 30-Plate Configuration: Listed as model SP110X-30.
- 1½-Inch NPT Ports: Confirm the supplied connections before installation.
- Compact Design: Plate construction packages heat-transfer surface area into a compact unit.
Technical Specifications
| Specification | SP110X-30 |
|---|---|
| Supplier | SunEarth |
| Product Series | SunPlate |
| Model | SP110X-30 |
| Type | Copper-brazed plate heat exchanger |
| Plate Material | 316L stainless steel; confirm supplied specification |
| Brazing Material | Copper |
| Number of Plates | 30 |
| Port Size | 1½-inch NPT |
| Wall Configuration | Confirm single-wall configuration with SunEarth |
| Design Pressure | Confirm exact-model rating with SunEarth |
| Fluid Compatibility | Confirm fluid type, glycol concentration and operating temperatures with SunEarth |
| Certifications | Confirm certifications for this exact model |
| Product Dimensions | Pending exact-model confirmation |
| Product Weight | Pending exact-model confirmation |
| Warranty | Pending supplier confirmation |
Product Highlights
- Model: SP110X-30 with 30 plates.
- Connections: Listed with 1½-inch NPT ports.
- Applications: Solar thermal and compatible hydronic systems.
- Selection: Match the exchanger to the system’s heat load and operating conditions.
Technical Documents
Installation Information
Proper sizing, piping and installation must follow manufacturer recommendations and applicable local codes. Confirm whether the required application permits a single-wall heat exchanger.
