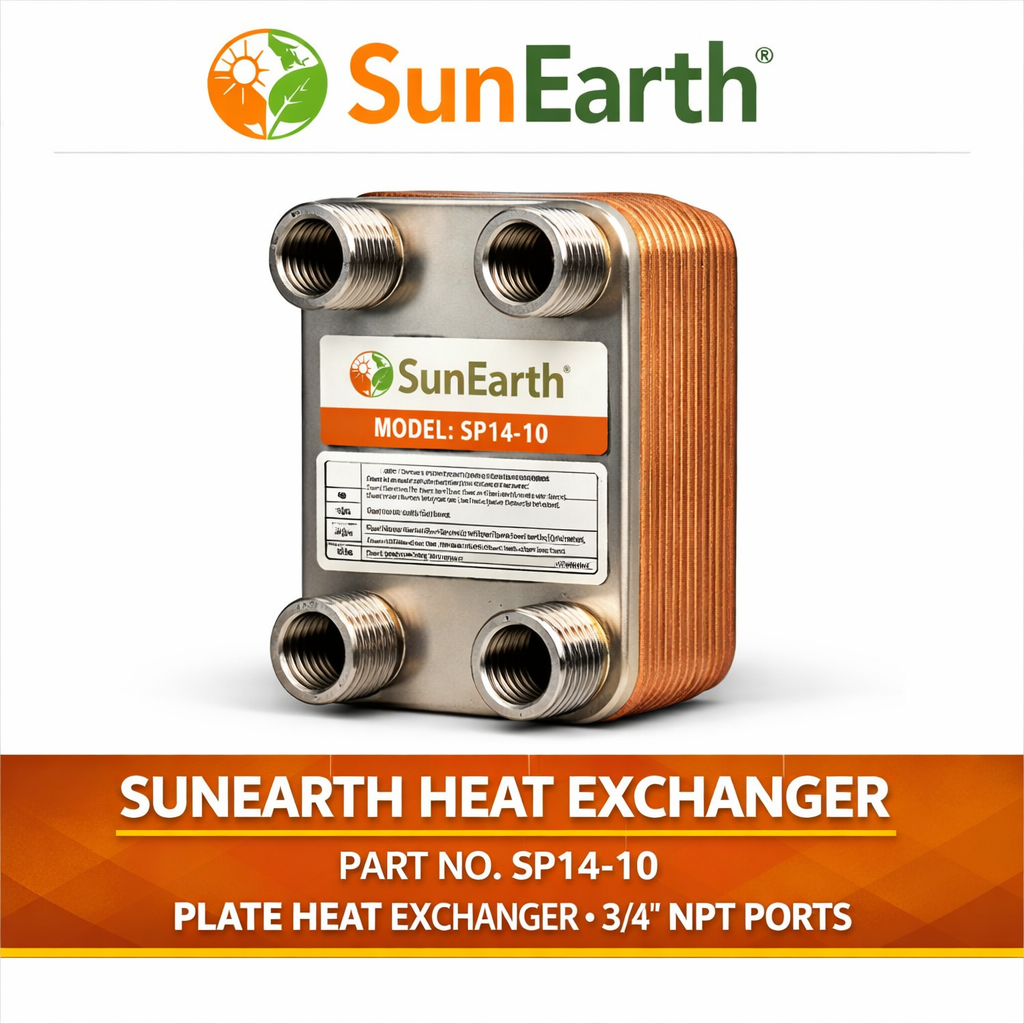

SunEarth Heat Exchanger SP14-10 3/4" NPT Ports
SunEarth Heat Exchanger SP14-10 3/4" NPT Ports is backordered and will ship as soon as it is back in stock.
The SunEarth SP14-10 SunPlate Heat Exchanger is a compact plate heat exchanger intended for solar thermal and hydronic heating applications. Its 10-plate construction and 3/4-inch NPT ports provide a compact option for transferring heat between fluid circuits.
The plate design provides heat-transfer surface area within a small footprint. Select the heat exchanger according to the system's heat load, flow rates, temperatures, and pressure-drop requirements.
Key Features
- 10-Plate Configuration — Provides heat-transfer surface area in a compact plate assembly.
- 3/4-Inch NPT Ports — Threaded ports for connection to a properly designed piping system.
- Stainless-Steel Plate Construction — Suitable for solar thermal heat-transfer applications.
- Single-Wall Design — Separates the fluid circuits with a single heat-transfer wall.
- Compact Footprint — Provides a space-saving option for properly sized installations.
Technical Specifications
| Specification | Details |
|---|---|
| Product Line | SunPlate |
| Model | SP14-10 |
| Product Type | Plate heat exchanger |
| Wall Configuration | Single wall |
| Plate Material | Stainless steel |
| Number of Plates | 10 |
| Port Size | 3/4 inch NPT |
| Application | Solar thermal and hydronic heating systems |
Product Highlights
- Solar Thermal Applications: Intended for heat transfer in properly designed indirect solar systems.
- Compact Plate Design: Provides heat-transfer surface area in a compact assembly.
- System-Specific Selection: Size according to the heat load, flow rates, and allowable pressure drop.
Technical Documents
- SunEarth 2026 Product Catalog (PDF)
- SP14-10 Specification Sheet
- SP14-10 Reference Matrix
- SP14-10 Warranty Information
- SWEP offers a 12-month warranty from the date of installation, but in no case
longer than 15 months from the date of delivery. The warranty covers only
manufacturing and material defects.
DISCLAIMER
The performance of SWEP BPHEs is based on their installation, maintenance,
and operating conditions being in conformance with this manual. SWEP
cannot assume any liability for BPHEs that do not meet these criteria.
The BPHE is not type-approved for fatigue loading.
- SWEP offers a 12-month warranty from the date of installation, but in no case
