SunEarth CopperHeart Rack 40″ Legs | MTG-LSR-CP-40-BA
SunEarth CopperHeart Rack 40″ Legs | MTG-LSR-CP-40-BA is backordered and will ship as soon as it is back in stock.

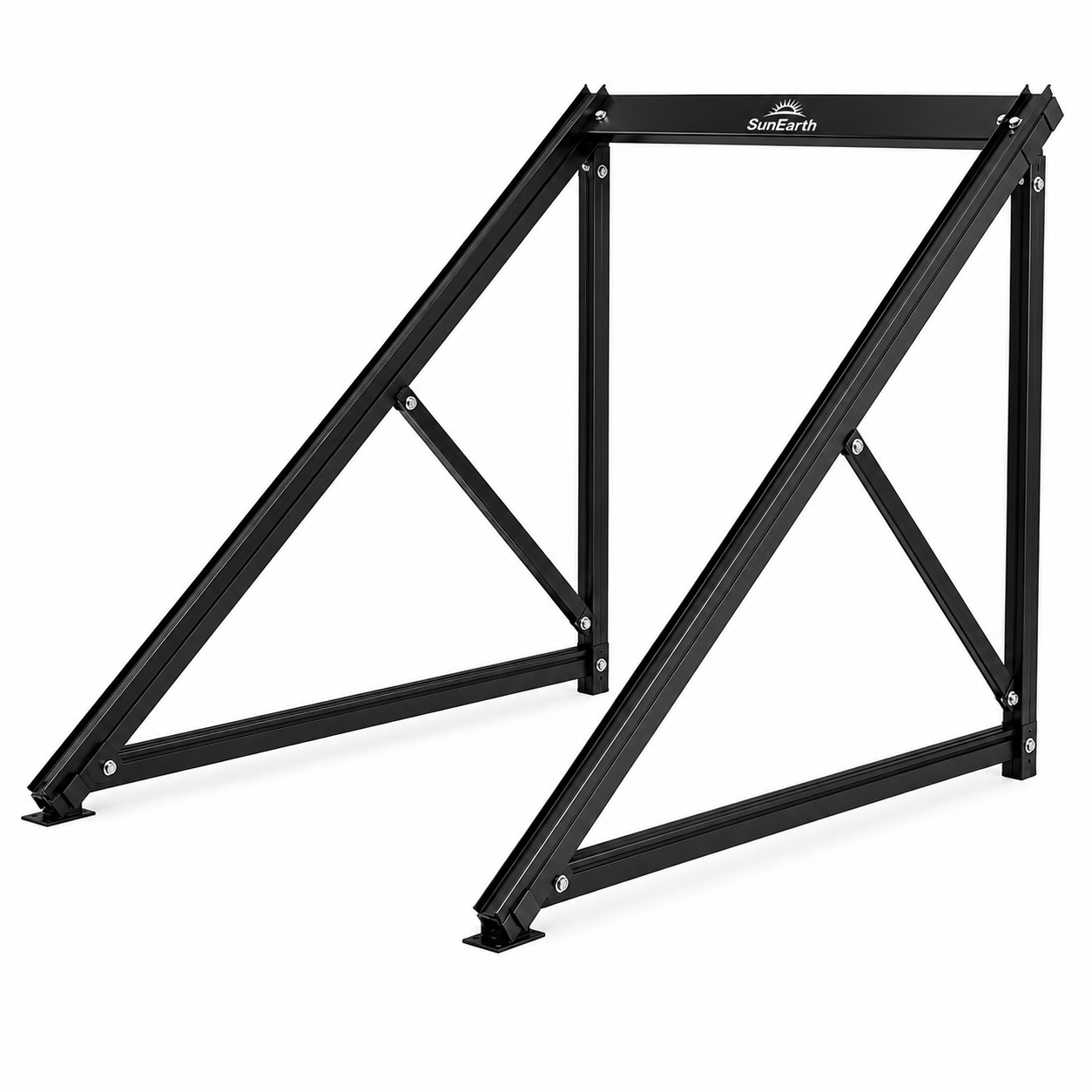

SunEarth CopperHeart Landscape Rack Kit — 40-Inch Legs
MTG-LSR-CP-40-BA | Black Anodized Aluminum
The SunEarth MTG-LSR-CP-40-BA is a landscape mounting rack kit for compatible CopperHeart integral collector storage (ICS) solar water heaters. The 40-inch leg configuration provides an elevated support arrangement, with final tilt and mounting-foot spacing determined by SunEarth’s installation table.
The CopperHeart rack family uses 6063-T6 structural aluminum and stainless steel hardware. Three 42-inch support struts form the collector support framework, while front and rear feet connect the assembly to an appropriately prepared mounting surface.
Confirm collector compatibility, roof structure, attachment details and local loading requirements before installation. The 40-inch designation describes the leg configuration and should not be treated as the finished vertical rack height.
Key Features & Benefits
| Feature | Benefit |
|---|---|
| CopperHeart rack family | Mounting framework designed for SunEarth CopperHeart ICS collectors. |
| 40-inch leg configuration | Supports model-specific tilt arrangements using the manufacturer’s angle and spacing table. |
| 6063-T6 structural aluminum | Structural rack material identified in SunEarth’s installation instructions. |
| Stainless steel hardware | Corrosion-resistant fasteners supplied with the rack family. |
| Three support struts | 42-inch struts provide the collector support framework. |
| Black anodized configuration | BA finish designated in the supplied product information; manufacturer instructions illustrate black-anodized struts. |
Technical Specifications
| Specification | Details |
|---|---|
| Manufacturer | SunEarth |
| Part Number | MTG-LSR-CP-40-BA |
| Product Type | CopperHeart landscape mounting rack kit |
| Compatible Product Family | SunEarth CopperHeart integral collector storage (ICS); confirm exact collector fit |
| Mount Orientation | Landscape |
| Nominal Rear Leg Size | 40 inches; not a stated installed vertical height |
| Material | 6063-T6 structural aluminum |
| Hardware | Stainless steel |
| Finish | Black anodized (BA) |
| Support Struts | 3 × 42-inch struts, per rack-family instructions |
| Rack-Family Kit Contents | 3 rear legs, 3 front feet, 3 rear feet, 6 collector clip assemblies and 9 bolt assemblies, plus the 3 support struts |
| Product Dimensions | Overall installed dimensions vary with angle and foot spacing; verify with manufacturer |
| Product Weight | Not stated in the reviewed manufacturer instructions; verify with manufacturer |
| Tilt and Foot Spacing | Use the MTG-LSR-CP-40 entries in the manufacturer’s installation table |
| Mounting-Surface Fasteners | Select an acceptable fastening method for the mounting surface and local conditions |
| Warranty | Rack-specific coverage pending manufacturer confirmation |
Product Highlights
- CopperHeart-specific landscape rack family.
- 40-inch leg configuration with black anodized finish.
- 6063-T6 structural aluminum and stainless steel hardware.
- Manufacturer instructions provide assembly guidance and model-specific angle/spacing tables.
Installation Notes
Use only the rear-leg positioning holes permitted by SunEarth’s instructions. Additional holes may be present, but the instructions prohibit using holes other than the two outermost positions. Cross bracing may be necessary when the rack is mounted other than parallel to the roof line. Follow the complete installation instructions for the selected configuration.
