SunEarth Pump UP15-29SU LC
SunEarth Pump UP15-29SU LC is backordered and will ship as soon as it is back in stock.

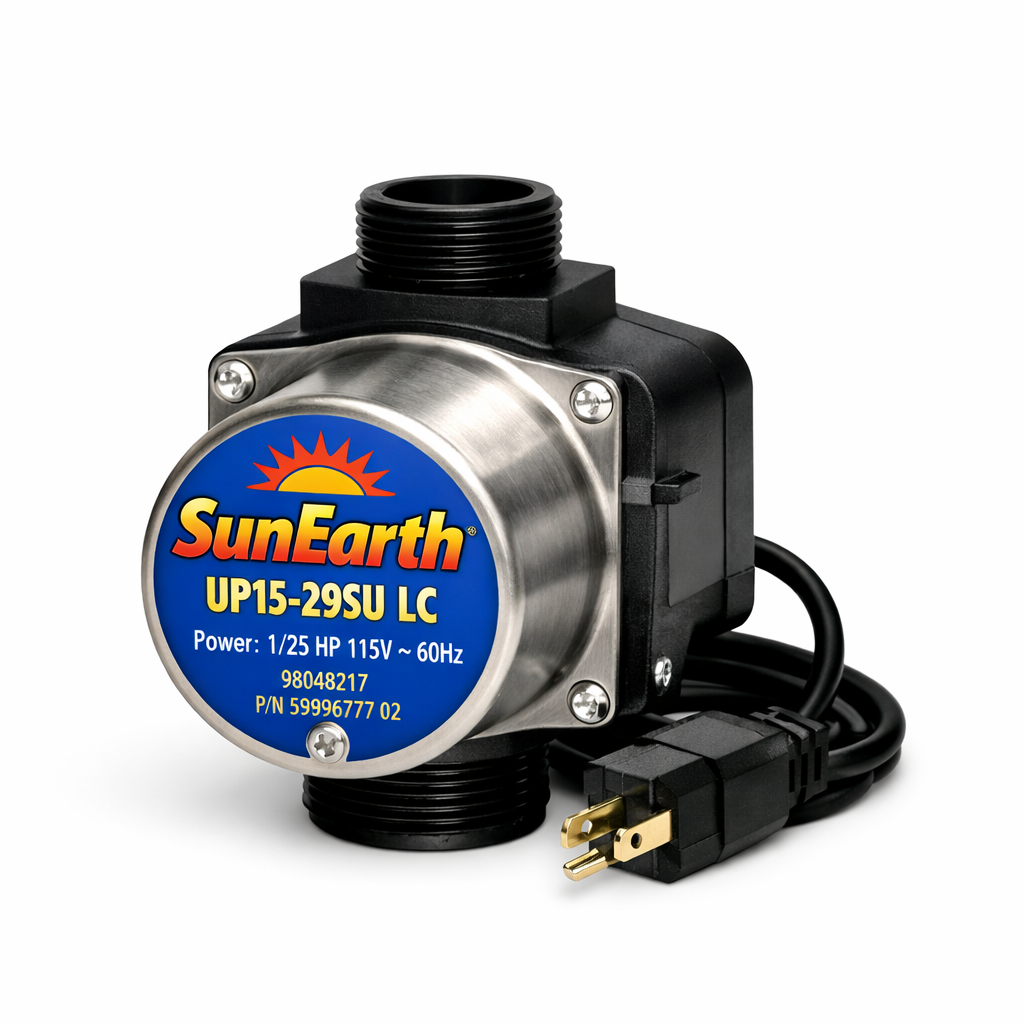

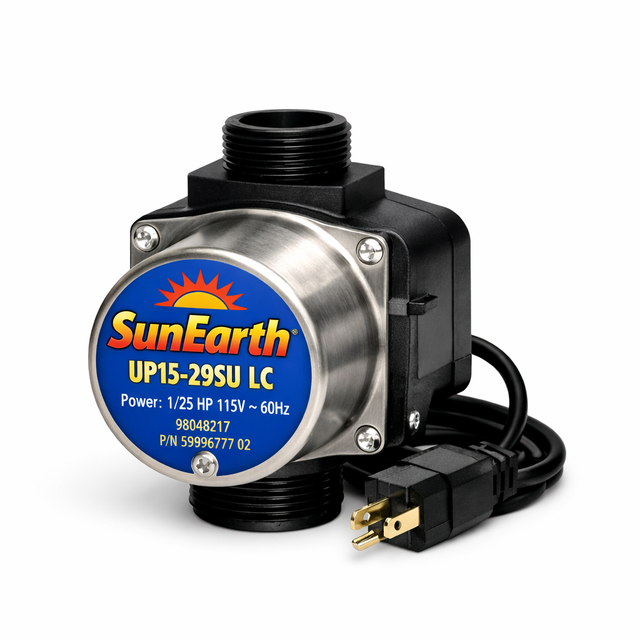

SunEarth UP15-29SU LC Stainless Steel Circulator Pump
115 VAC | Stainless Steel | Union Connections | Line Cord
The SunEarth-listed UP15-29SU LC is a stainless steel circulator pump for compatible hot-water circulation applications. Its union connections and line cord support installation in a properly designed system.
The specifications below use the Grundfos UP15-29SU/LC, product 59896776, as a reference. Confirm that the SunEarth-supplied pump matches this configuration before finalizing system design or ordering replacement components.
Key Features & Benefits
| Feature | Details |
|---|---|
| Stainless steel housing | For compatible circulating fluids and applications. |
| Union connections | Grundfos reference model uses a GU 125 union connection. |
| Line cord | Grundfos reference model includes a six-foot, three-prong power cord. |
| Single-speed circulation | Reference model operates at one speed; select the operating point using its performance curve. |
Technical Specifications
| Specification | Details |
|---|---|
| Supplier / SKU | SunEarth / UP15-29SU LC |
| Reference Manufacturer / Product | Grundfos UP15-29SU/LC / 59896776 |
| Voltage / Phase / Frequency | 115 VAC / single phase / 60 Hz |
| Pump Housing | Stainless steel |
| Speed | Single speed, per Grundfos reference model |
| Maximum Flow | 20.5 US GPM, per Grundfos reference data |
| Maximum Head | 9.7 ft, per Grundfos reference data |
| Maximum System Pressure | 145 PSI, per Grundfos reference data |
| Liquid Temperature Range | 36°F to 230°F |
| Connections | GU 125, 1¼-inch union |
| Electrical Connection | Six-foot, three-prong line cord |
| Product Dimensions | Refer to the Grundfos dimension drawing; see below |
| Product Weight | Grundfos reference shipping weight: 5.7 lb |
Product Highlights
- SunEarth SKU: UP15-29SU LC.
- 115 VAC stainless steel circulator pump.
- Union connections and line cord on the reference model.
- Confirm package contents and fluid compatibility.
Technical Documents
- SunEarth Product Catalog
- UP15-29SU LC Specifications, Performance Curve & Dimensions
- UP15-29SU Series manual
- UP15-29SU LC Warranty
Selection & Installation
Select the operating point from the manufacturer's pump curve. Maximum flow and maximum head are separate endpoints. Confirm electrical requirements, connection fittings, fluid compatibility and mounting instructions before installation.
