SunEarth Solar 4x10 Empire Collector EP-40-2
SunEarth Solar 4x10 Empire Collector EP-40-2 is backordered and will ship as soon as it is back in stock.

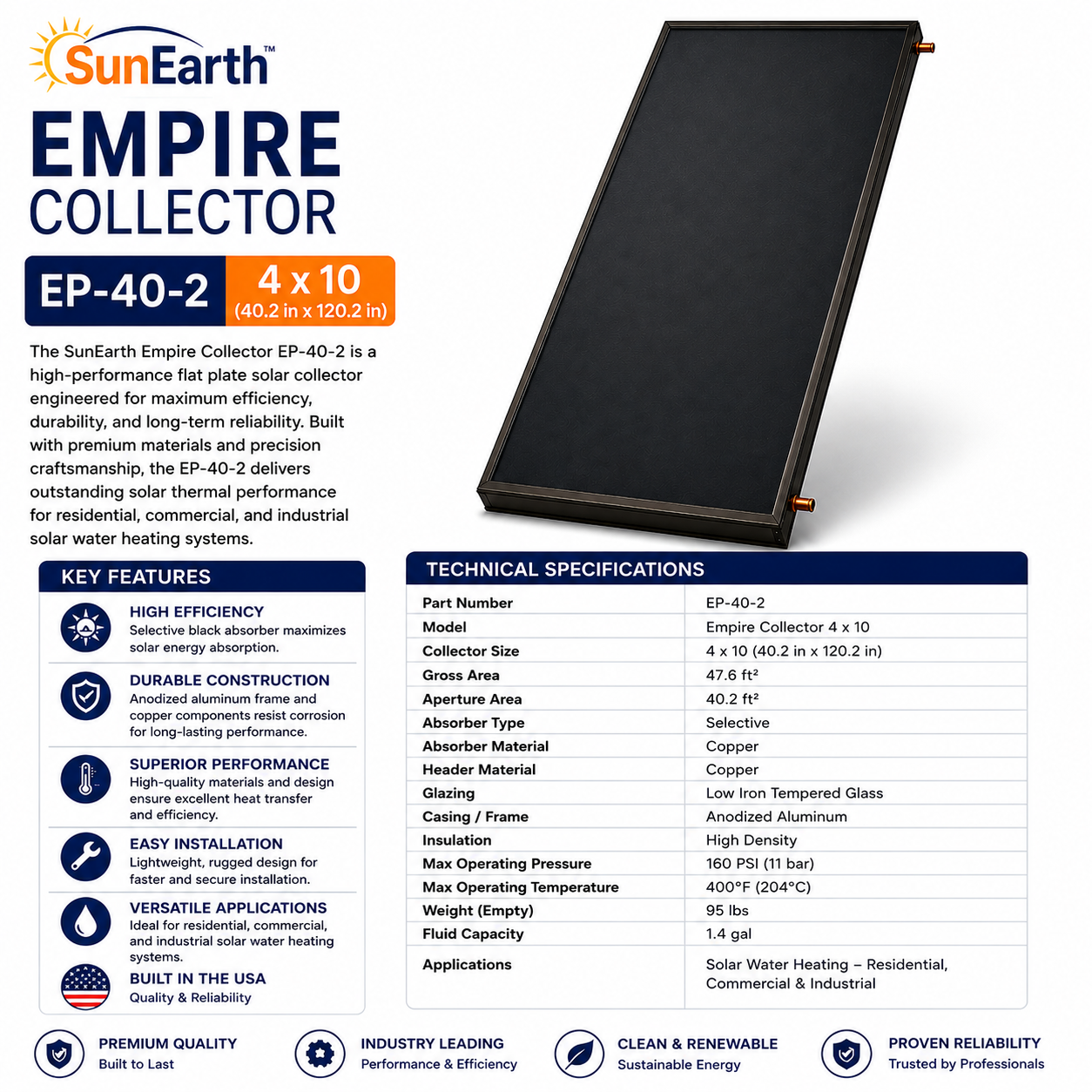

SunEarth Empire EP-40-2 Solar Thermal Collector
Part Number: EP-40-2 | Nominal 4 × 10 ft
The SunEarth Empire EP-40-2 collects solar heat for residential and commercial water-heating systems. Its copper absorber and fluid passages transfer collected energy into circulating water or an appropriate heat-transfer fluid.
Moderately selective black paint, low-iron tempered glass, and an anodized aluminum casing combine solar collection with durable outdoor construction. Compatible system designs include direct circulation, glycol, and drainback configurations, selected for the application and climate.
Product Highlights
- Copper absorber and piping: Conduct heat into the system fluid.
- Black absorber coating: Moderately selective paint captures solar radiation.
- Low-iron tempered glass: Admits sunlight to the absorber.
- Insulated casing: Foam and fiberglass help reduce heat loss.
- Integral mounting channel: Supports installation with compatible mounting components.
Technical Specifications
| Specification | Details |
|---|---|
| Manufacturer | SunEarth |
| Part Number | EP-40-2 |
| Collector Type | Glazed liquid flat-plate |
| Nominal Size | 4 × 10 ft |
| Absorber Plate / Fluid Passages | Copper |
| Absorber Coating | Moderately selective black paint (SOLKOTE®) |
| Absorptivity / Emissivity | 94% / 56% — Empire EP family specification |
| Glazing | Low-iron tempered glass |
| Frame | Bronze-anodized aluminum |
| Insulation | Polyisocyanurate and fiberglass; R ≥ 12 |
Cold-weather systems require appropriate freeze protection. Collector selection, mounting, piping, and operating limits must follow the applicable manufacturer instructions.
Technical Documents
SunEarth Solar 4x10 Empire Collector EP-40-2
