SunEarth Solar Collector 40 Gal Copper Heart
SunEarth Solar Collector 40 Gal Copper Heart is backordered and will ship as soon as it is back in stock.
SunEarth CopperHeart CP-40 Solar Water Heater
Part Number: CP-40 | Nominal 40-Gallon Integral Collector Storage System

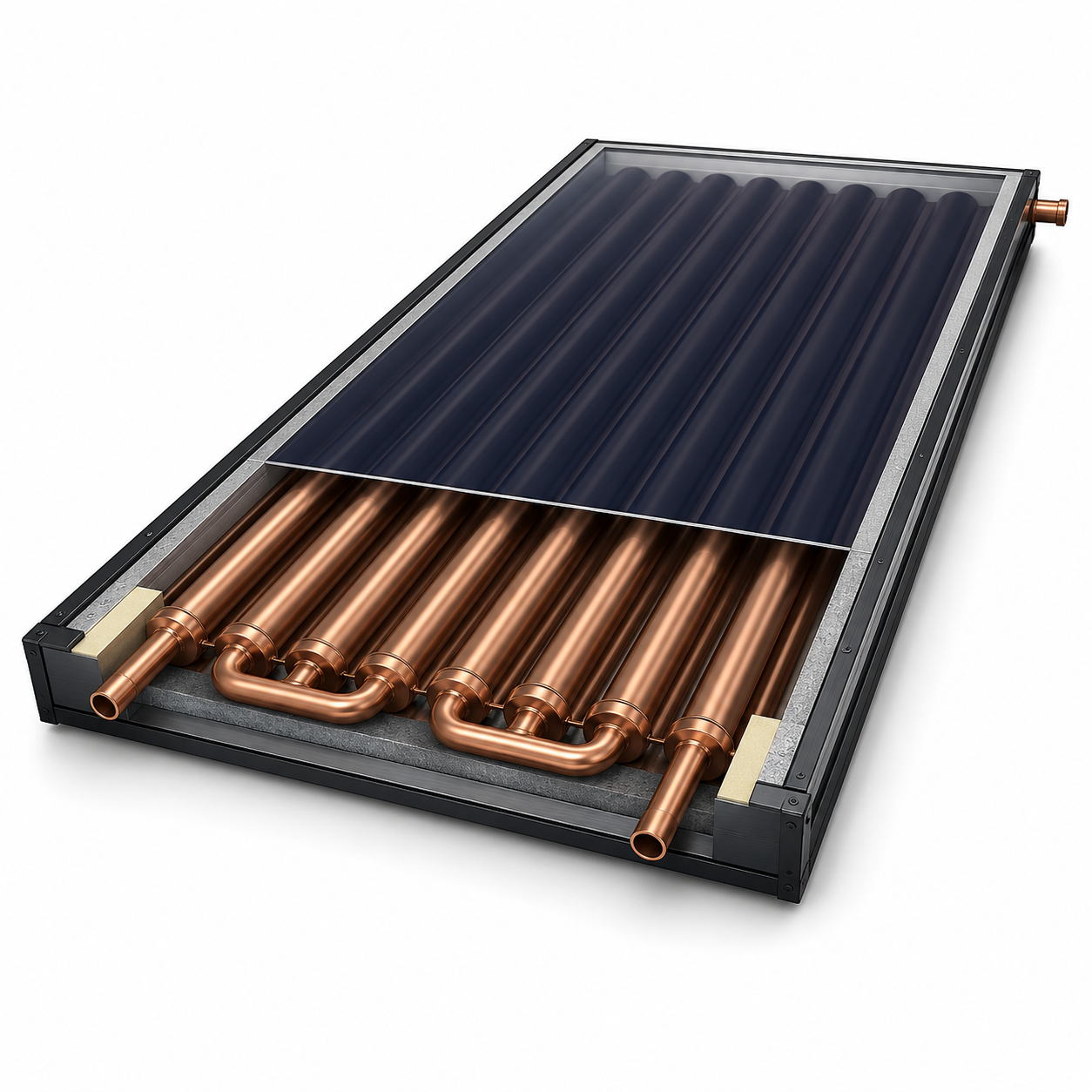

The SunEarth CopperHeart CP-40 combines solar heat collection and water storage in one passive integral collector storage (ICS) unit. Normal solar operation requires no circulation pump or electronic controller.
Use it as a solar preheater ahead of a compatible gas or electric water heater. In suitable non-freezing climates, it can also serve as a primary water heater. System sizing, backup heating, and installation must suit local conditions.
Product Highlights
- Integrated collection and storage: A passive approach to solar water heating.
- Copper storage cylinders: Collect heat and hold water within the unit.
- SOLKOTE® coating: Moderately selective absorber finish.
- Outdoor construction: Tempered glass, an anodized aluminum casing, and insulated backing.
Technical Specifications
| Specification | Details |
|---|---|
| Manufacturer / Model | SunEarth / CP-40 |
| Type | Integral collector storage (ICS) |
| Nominal Size / Fluid Capacity | 40 gallons / 39 gallons |
| Length × Width × Depth | 98.2 × 36.2 × 6.8 in |
| Gross / Aperture Area | 24.96 / 21.5 ft² |
| Dry / Filled Weight | 281 / 615 lb |
| Standard Connection | 3/4-in sweat |
| Storage Cylinders / Manifolds | Copper / copper |
| Glazing | Low-iron tempered glass |
| Frame | Bronze-anodized aluminum |
| Insulation | Polyisocyanurate and fiberglass |
| Rated Internal Working Pressure | 120 psig at 200°F |
SunEarth lists a 160 psi maximum operating pressure and a 200°F maximum operating temperature. Confirm applicable pressure limits with SunEarth for the proposed installation.
Installation and Climate
Have a qualified installer assess mounting and structural support for the filled unit. CopperHeart suitability depends on the climate and complete piping design; do not assume universal freeze protection. Follow the CopperHeart installation and maintenance instructions.
Warranty
SunEarth’s collector warranty includes CopperHeart ICS units and provides a 10-year limited warranty, subject to its terms and exclusions.
Technical Documents
