SunEarth Solar Empire Collector EP-21
SunEarth Solar Empire Collector EP-21 is backordered and will ship as soon as it is back in stock.

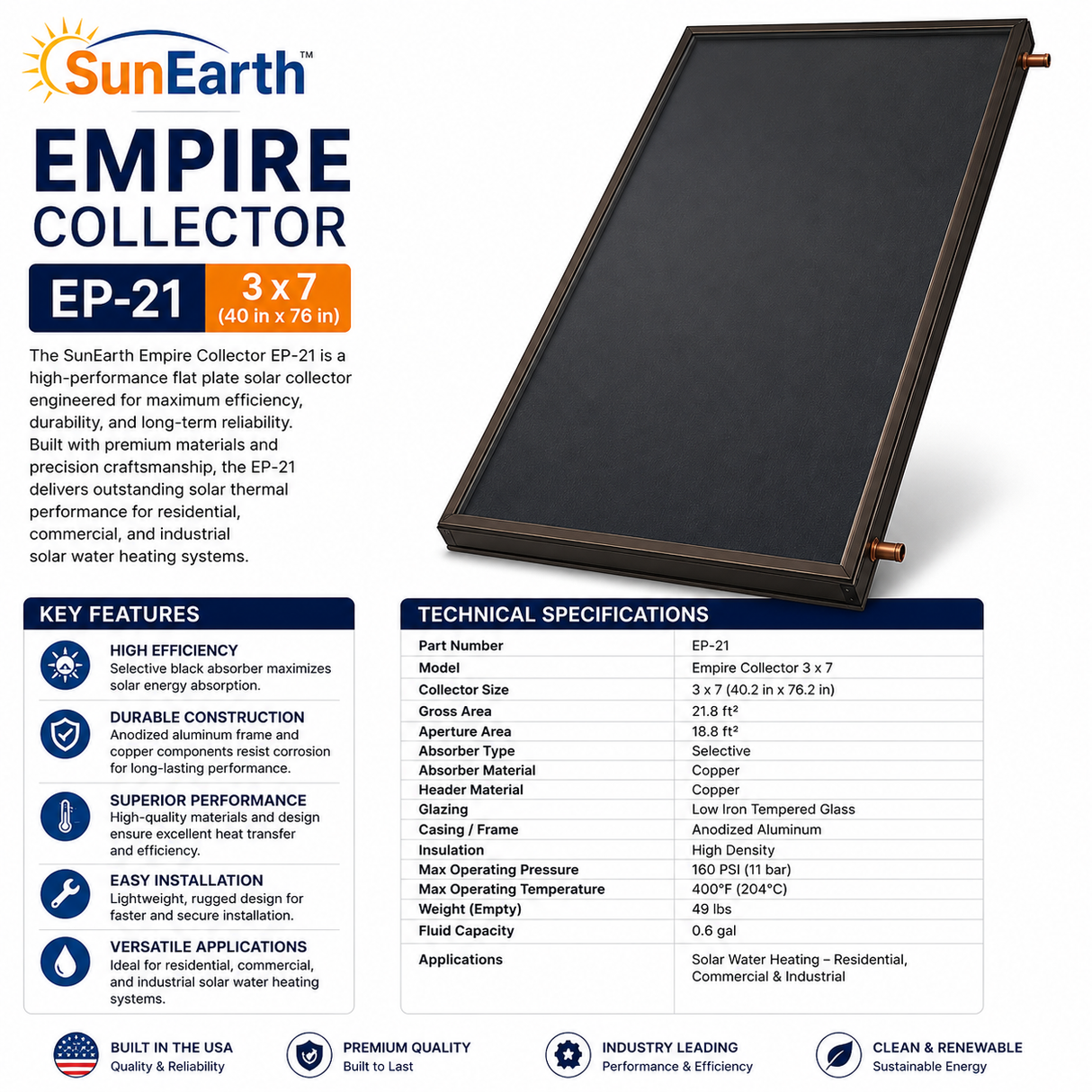

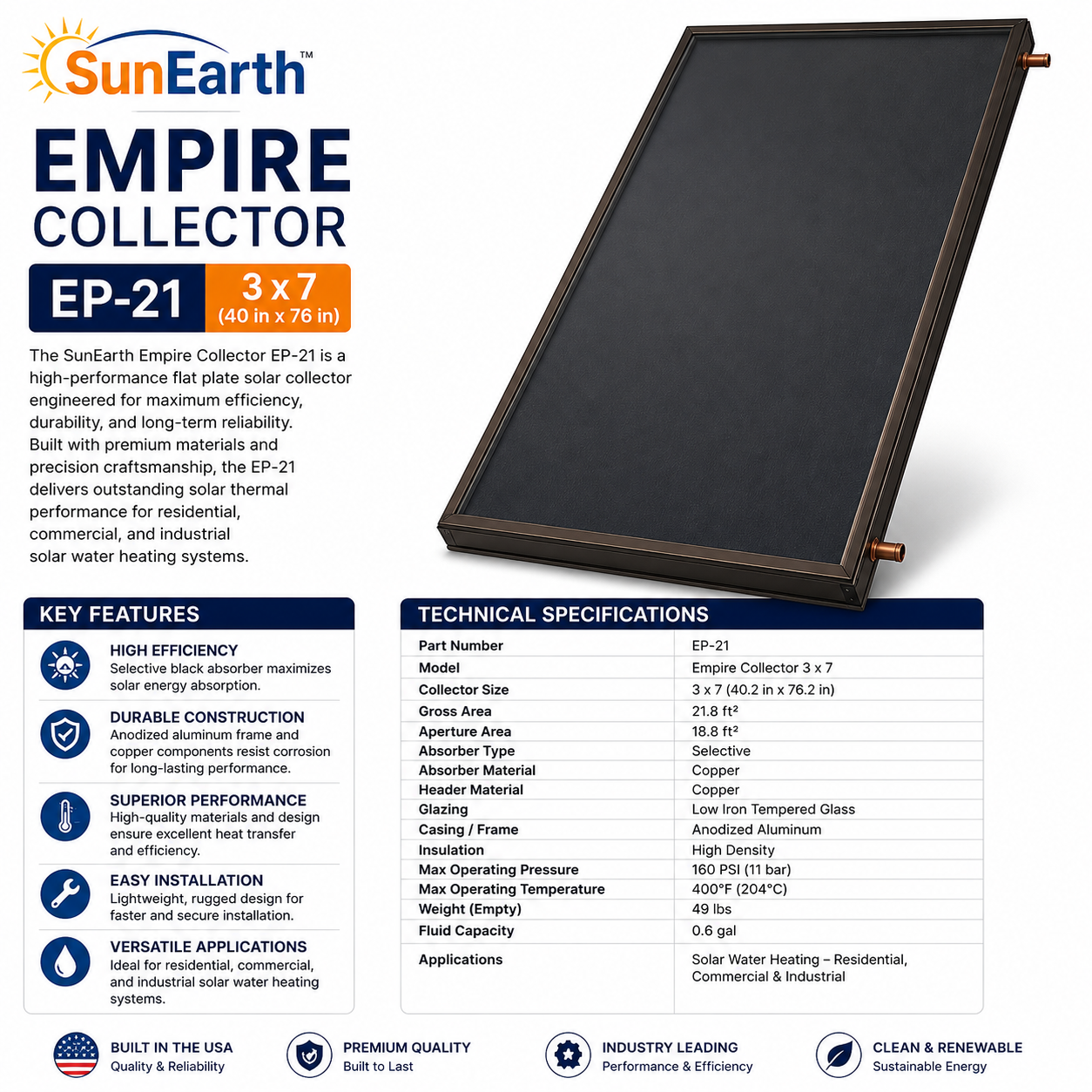

SunEarth Empire EP-21 Flat-Plate Solar Collector
Part Number: EP-21 | Nominal 3 × 7 ft
The SunEarth Empire EP-21 collects solar heat for residential and commercial water-heating systems. A copper absorber with moderately selective black paint transfers energy into copper fluid passages beneath low-iron tempered glass.
Its bronze-anodized aluminum casing and layered insulation support outdoor service while limiting heat loss. The EP-21 can be integrated into properly designed direct-circulation, glycol, or drainback systems, depending on the climate and application.
Product Highlights
- Copper absorber and piping: Conduct collected heat into circulating system fluid.
- Moderately selective black coating: Captures solar radiation at the absorber surface.
- Low-iron tempered glass: Admits sunlight while protecting the absorber.
- Insulated aluminum casing: Combines outdoor durability with reduced heat loss.
- Integral mounting channel: Accommodates compatible SunEarth mounting components.
Technical Specifications
| Specification | Details |
|---|---|
| Manufacturer / Model | SunEarth / Empire EP-21 |
| Part Number | EP-21 |
| Collector Type | Glazed liquid flat-plate |
| Nominal Size | 3 × 7 ft |
| Length × Width | 76.2 × 40.2 in |
| Gross Area | 21.8 ft² |
| Aperture Area | 18.8 ft² |
| Dry Weight | 70 lb |
| Fluid Capacity | Approximately 0.7 gal |
| Absorber Plate / Fluid Passages | Copper |
| Absorber Coating | Moderately selective black paint (SOLKOTE®) |
| Absorptivity / Emissivity | 94% / 56% |
| Glazing | Low-iron tempered glass |
| Frame | Bronze-anodized aluminum |
| Insulation | Polyisocyanurate and fiberglass; R ≥ 12 |
| Maximum Operating Pressure | 160 psi |
| Maximum Operating Temperature | 300°F |
| Maximum Wind / Snow Load | ±90 psf |
| Design Flow Rate | 0.62 gpm |
| Pressure Drop at Design Flow | 0.003 psi |
| Maximum Flow Rate | 12 gpm |
| Standard Connection | 1 in nominal copper sweat |
Cold-weather installations require a system designed for freeze protection. Final design, installation, and operating limits must follow manufacturer instructions.
Warranty
SunEarth's collector manual states a 10-year limited warranty for the Empire EP-21. Coverage, exclusions, and claim requirements are subject to the manufacturer's written warranty. See Link Below.
Technical Documents
SunEarth Solar Empire Collector EP-21
