SunEarth Solar Empire Collector EP-24
SunEarth Solar Empire Collector EP-24 is backordered and will ship as soon as it is back in stock.
SunEarth Empire Collector EP-24
3 × 8 High-Performance Flat Plate Solar Thermal Collector
Part Number: EP-24
Product Description
The SunEarth Empire Collector EP-24 is a premium 3 ft. × 8 ft. flat plate solar thermal collector engineered to provide exceptional energy efficiency, durability, and long-term performance for residential and commercial solar water heating systems. Built with a high-performance selective copper absorber, low-iron tempered safety glass, and a rugged dark bronze anodized aluminum frame, the EP-24 is designed to maximize solar energy collection while minimizing heat loss.
Offering a gross collector area of 28.3 square feet and an aperture area of 24.6 square feet, the Empire EP-24 delivers increased thermal output compared to smaller collectors, making it an ideal solution for domestic hot water, commercial water heating, hydronic heating, and solar pool heating applications.
Precision-engineered with copper risers and headers, high-density insulation, and corrosion-resistant construction, the EP-24 provides dependable renewable energy performance while meeting the demanding requirements of professional solar thermal installations.
Key Features
- Premium 3 × 8 flat plate solar thermal collector
- High-efficiency selective copper absorber plate
- Durable dark bronze anodized aluminum frame
- Low-iron tempered safety glass for maximum solar transmission
- Copper risers and headers for superior heat transfer
- High-density insulation minimizes standby heat loss
- Corrosion-resistant aluminum casing for long service life
- Lightweight yet rugged construction
- Designed for residential and commercial solar water heating
- Compatible with closed-loop glycol solar thermal systems
- Manufactured in the USA
- Proven SunEarth reliability and performance

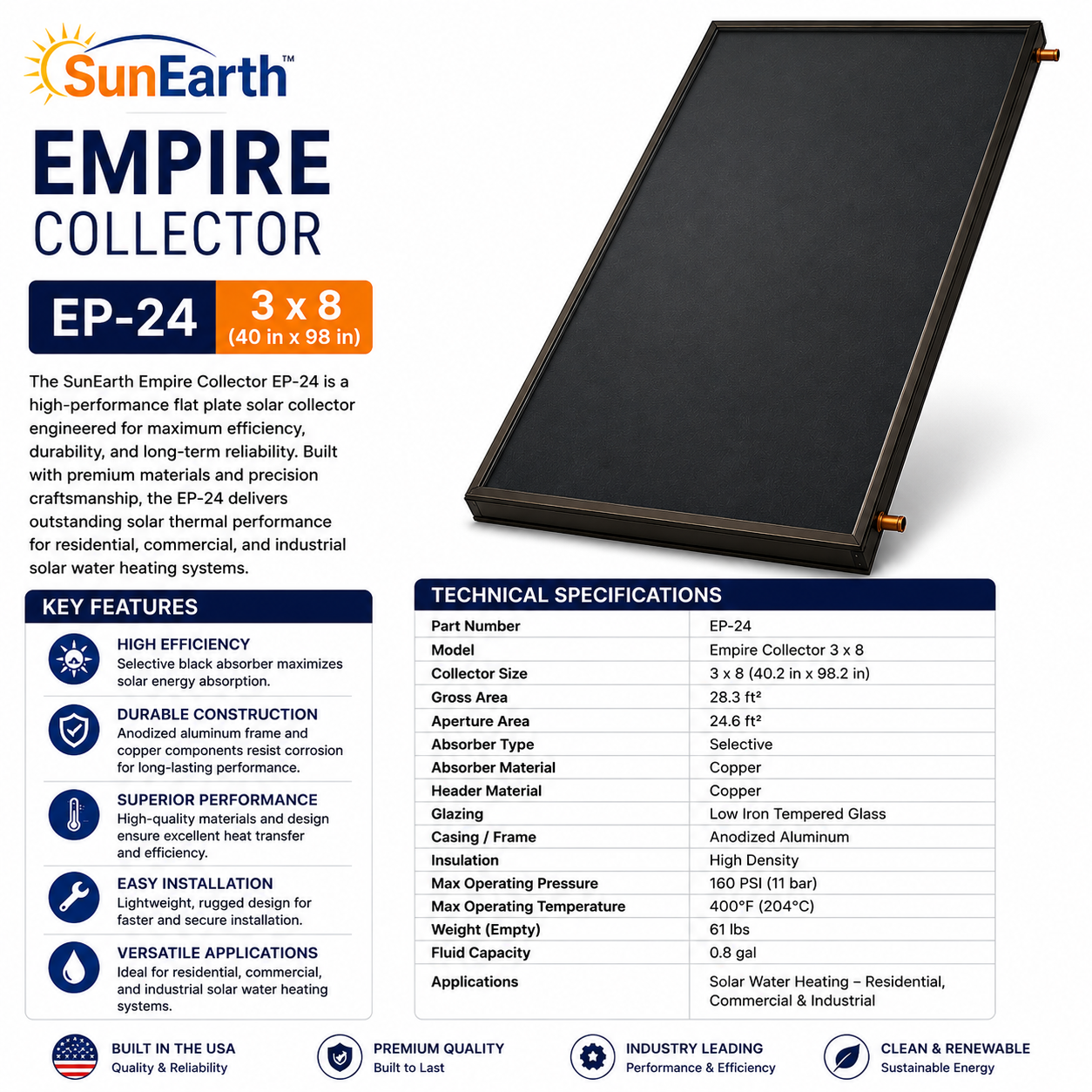

Technical Specifications
| Specification | Details |
|---|---|
| Manufacturer | SunEarth |
| Product | Empire Flat Plate Solar Collector |
| Part Number | EP-24 |
| Model | Empire Collector 3 × 8 |
| Collector Dimensions | 40.2 in. × 98.2 in. (3 ft. × 8 ft.) |
| Gross Collector Area | 28.3 sq. ft. |
| Aperture Area | 24.6 sq. ft. |
| Collector Type | Flat Plate Solar Thermal Collector |
| Absorber Plate | Selective Copper Absorber |
| Absorber Coating | High-Performance Selective Surface |
| Riser Material | Copper |
| Header Material | Copper |
| Glazing | Low-Iron Tempered Safety Glass |
| Frame Material | Dark Bronze Anodized Aluminum |
| Backsheet | Aluminum |
| Insulation | High-Density Fiberglass / Mineral Wool |
| Fluid Capacity | 0.8 gal |
| Maximum Operating Pressure | 160 PSI (11 bar) |
| Maximum Operating Temperature | 400°F (204°C) |
| Approximate Empty Weight | 61 lbs |
| Applications | Residential Solar Water Heating, Commercial Solar Thermal Systems, Hydronic Heating, Solar Pool Heating, Process Water Heating |
Technical Documents:
SunEarth Solar Empire Collector EP-24
