SunEarth SolarStation 1-Line Pump Station
SunEarth SolarStation 1-Line Pump Station is backordered and will ship as soon as it is back in stock.
SunEarth SolarStation 1-Line Commercial Solar Pump Station with UPS15-58 Pump

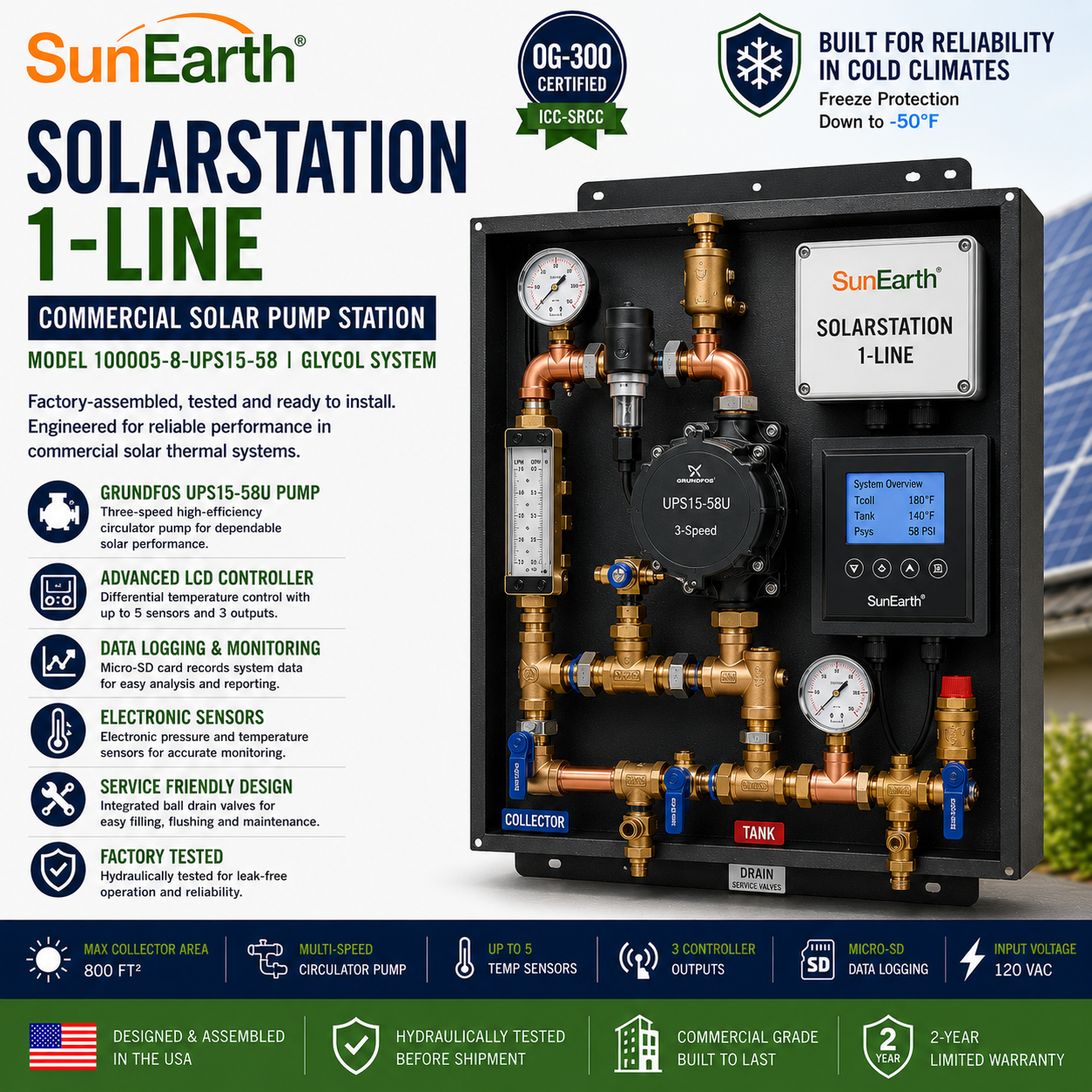

The SunEarth SolarStation 1-Line (Part Number: 100005-8-UPS15-58) is a factory-assembled commercial closed-loop solar pump station designed for glycol-based solar thermal systems. Engineered for commercial domestic hot water applications, the SolarStation 1-Line combines premium hydraulic components, intelligent controls, and factory-tested reliability into a compact assembly that significantly reduces field installation time while maximizing long-term performance.
This configuration is equipped with the Grundfos UPS15-58U three-speed circulator pump, offering dependable flow control for medium-sized commercial collector arrays while maintaining high energy efficiency. The integrated LCD differential controller supports multiple temperature sensors, electronic monitoring, Micro-SD data logging, and advanced system diagnostics for simplified commissioning and maintenance.
Factory assembled and hydraulically tested before shipment, the SolarStation 1-Line provides installers with a professional, ready-to-install pumping package ideal for schools, multifamily housing, hotels, municipal buildings, and commercial solar domestic hot water systems.
⚙️Key Features:
| Feature | Benefit |
|---|---|
| Factory-Assembled Pump Station | Reduces installation time and field labor |
| Grundfos UPS15-58U Three-Speed Pump | Proven high-efficiency solar circulation |
| Supports Commercial Solar Systems | Designed for medium-sized collector arrays |
| LCD Differential Controller | Intelligent solar system management |
| Micro-SD Data Logging | Stores operating history and performance data |
| Electronic Pressure & Temperature Monitoring | Accurate system diagnostics |
| Integrated Ball Drain Valves | Simplifies filling, flushing, and servicing |
| Factory Hydraulic Testing | Leak-tested before shipment |
| Commercial-Grade Copper Plumbing | Long service life |
| Genuine SunEarth OEM Product | Designed specifically for SunEarth solar systems |
⚙️Technical Specifications:
Technical Specifications
| Specification | Details |
|---|---|
| Maximum Collector Capacity | Approximately 800 ft² |
| Product Dimensions | Verify with Manufacturer |
| Product Weight | Verify with Manufacturer |
| Manufacturer | SunEarth |
| Part Number | 100005-8-UPS15-58 |
| Product Type | SolarStation 1-Line Commercial Pump Station |
| System Type | Closed-Loop Glycol Solar Thermal |
| Circulator Pump | Grundfos UPS15-58U, 3-Speed |
| Pump Horsepower | 1/25 HP |
| Input Voltage | 120 VAC |
| Controller | LCD Differential Controller |
| Temperature Sensor Inputs | Up to 5 |
| Controller Outputs | 3 |
| Data Logging | Micro-SD Card |
| Remote Monitoring | Optional |
| Pressure Monitoring | Electronic |
| Temperature Monitoring | Electronic |
| Service Valves | Integrated Ball Drain Valves |
| Collector Connections | Copper Compression |
| Application | Commercial Solar Water Heating |
| Warranty | 2-Year Limited |
⚙️Technical Documents:
SunEarth SolarStation 1-Line Pump Station
