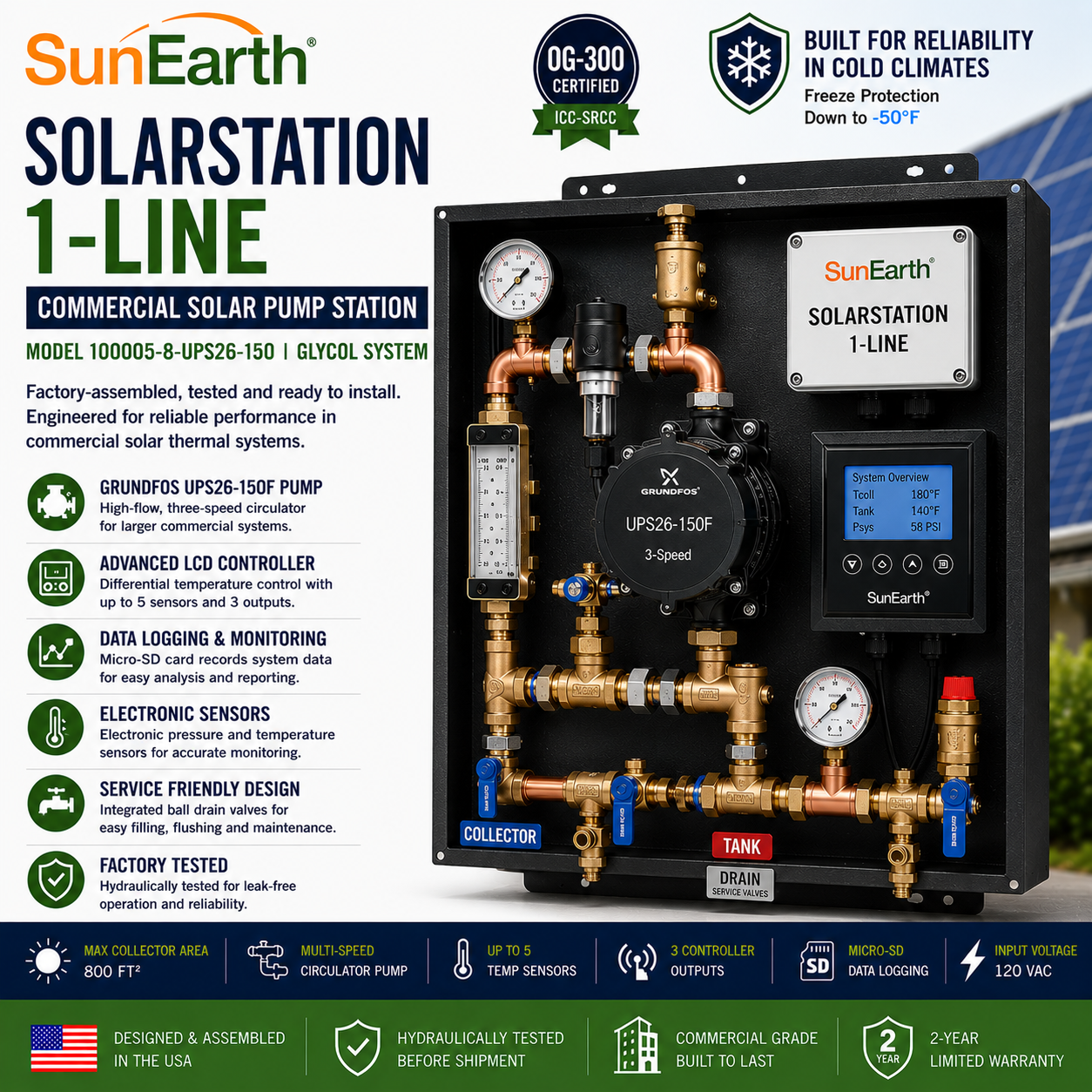

SunEarth SolarStation 1-Line Commercial Solar Pump Station with UPS26-150 Pump
The SunEarth SolarStation 1-Line (Part Number: 100005-8-UPS26-150) is a factory-assembled commercial closed-loop solar pump station designed for larger glycol-based solar thermal systems. Equipped with the Grundfos UPS26-150F three-speed circulator pump, this configuration is intended for higher-flow commercial applications requiring dependable circulation across larger solar collector arrays while maintaining exceptional efficiency and long-term reliability. The SolarStation arrives fully assembled, pressure tested, and ready for installation, reducing field labor and simplifying commissioning.
Designed for commercial domestic hot water systems, the SolarStation 1-Line incorporates an advanced LCD differential controller, electronic pressure and temperature monitoring, Micro-SD data logging, service valves, and commercial-grade copper piping into one compact hydraulic assembly. The intelligent controller supports multiple temperature sensors, programmable outputs, optional remote monitoring, and advanced diagnostics for simplified operation and maintenance.
Ideal for schools, hotels, multifamily housing, municipal facilities, and commercial solar water heating systems, the SolarStation 1-Line provides installers with a professional OEM pumping package engineered specifically for SunEarth solar thermal systems.
⚙️Key Features:
| Feature | Benefit |
|---|---|
| Factory-Assembled Pump Station | Minimizes installation time and labor |
| Grundfos UPS26-150F Three-Speed Pump | High-flow performance for larger commercial systems |
| Closed-Loop Glycol System | Reliable freeze-protected solar operation |
| Advanced LCD Differential Controller | Intelligent solar system management |
| Micro-SD Data Logging | Records operating history and performance data |
| Electronic Pressure & Temperature Sensors | Accurate monitoring and diagnostics |
| Integrated Service Valves | Simplifies filling, flushing, and maintenance |
| Factory Pressure Tested | Leak-tested before shipment |
| Commercial Copper Plumbing | Long-lasting hydraulic reliability |
| Genuine SunEarth OEM Product | Designed specifically for SunEarth commercial systems |
⚙️Technical Specifications:
| Specification | Details |
|---|---|
| Maximum Collector Capacity | Approximately 800 ft² |
| Product Dimensions | Verify with Manufacturer |
| Product Weight | Verify with Manufacturer |
| Manufacturer | SunEarth |
| Part Number | 100005-8-UPS26-150 |
| Product Type | SolarStation 1-Line Commercial Pump Station |
| System Type | Closed-Loop Glycol Solar Thermal |
| Circulator Pump | Grundfos UPS26-150F, 3-Speed |
| Controller | LCD Differential Controller |
| Temperature Inputs | Up to 5 Sensors |
| Controller Outputs | 3 |
| Data Logging | Micro-SD Card |
| Remote Monitoring | Optional |
| Pressure Monitoring | Electronic |
| Temperature Monitoring | Electronic |
| Service Valves | Integrated Ball Drain Valves |
| Collector Connections | Copper Compression |
| Application | Commercial Solar Water Heating |
⚙️Technical Documents:
SunEarth SolarStation 1-Line Pump Station UPS26-150 | 100005-8-UPS2...
