SunEarth SRS-FLOWBOX | SolarStation Pump Group with Line Cord
SunEarth SRS-FLOWBOX | SolarStation Pump Group with Line Cord is backordered and will ship as soon as it is back in stock.

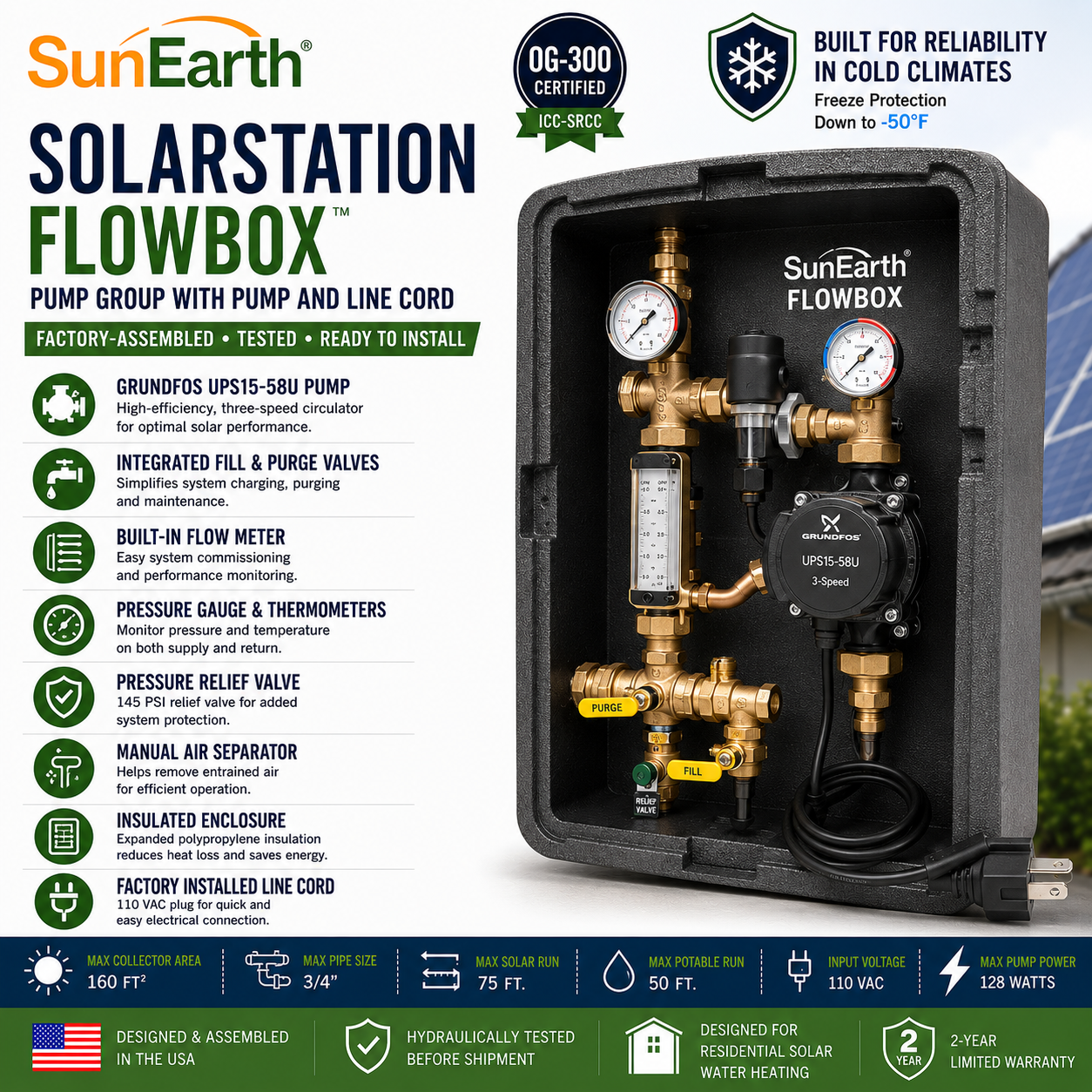

SunEarth SolarStation FlowBox Pump Group with Pump & Line Cord
SRS-FLOWBOX • Closed-Loop Solar Thermal Pump Group • Grundfos UPS15-58U Circulator
The SunEarth SolarStation FlowBox (SRS-FLOWBOX) is a preassembled pump group designed for residential closed-loop solar domestic hot water systems. The unit combines a three-speed circulator with the hydraulic components needed for fluid circulation, filling, purging, and routine system monitoring.
Built around a Grundfos UPS15-58U three-speed circulator, the FlowBox includes fill and purge valves, a flow meter, temperature gauges, pressure instrumentation, a pressure relief valve, and an air separator. These integrated components reduce the amount of field-installed plumbing required for a typical indirect glycol solar system.
The station is housed in a compact insulated enclosure manufactured from expanded polypropylene foam. The removable housing provides access to the internal hydraulic components while helping reduce heat loss and maintain a professional appearance in the mechanical space.
A pump line cord is included for connection to a compatible solar differential controller. The controller and solar expansion tank are sold separately.
Key Features & Benefits
| Feature | Benefit |
|---|---|
| Preassembled Pump Group | Reduces field plumbing work and simplifies installation. |
| Grundfos UPS15-58U Pump | Three-speed circulation supports compatible solar loop designs. |
| Fill & Purge Valves | Provide connection points for charging, flushing, draining, and servicing the glycol circuit. |
| Flow Meter & Balancing | Assists flow adjustment and commissioning. |
| Temperature Gauges | Permit visual monitoring of solar loop operating temperatures. |
| Pressure Gauge | Supports monitoring of system pressure. |
| Pressure Relief Valve | Provides overpressure protection when properly installed in the system. |
| Air Separator & Vent | Helps release trapped air during system filling and operation. |
| Insulated Housing | Expanded polypropylene enclosure provides thermal insulation and service access. |
| Included Pump Line Cord | Facilitates connection to a compatible external solar controller. |
Technical Specifications
| Specification | Details |
|---|---|
| Manufacturer | SunEarth |
| SKU | SRS-FLOWBOX |
| Series | SolarStation FlowBox |
| Product Type | Closed-Loop Solar Pump Group |
| Application | Residential Solar Domestic Hot Water |
| Fluid Circuit | Indirect Closed-Loop Solar Heat Transfer |
| Circulator Model | Grundfos UPS15-58U |
| Pump Speeds | Three |
| Pump Power Supply | 115/120 VAC, 60 Hz (confirm nameplate) |
| Maximum Pump Power | 128 W referenced in SolarStation specification; verify for SKU |
| Maximum Collector Area | Up to 160 ft² in SolarStation reference specification; verify application |
| Flow Meter | Included |
| Temperature Gauges | Included |
| Pressure Gauge | Included |
| Pressure Relief Valve | Included |
| Air Separator | Included |
| Fill & Purge Valves | Included |
| Insulated Enclosure | Expanded Polypropylene Foam |
| Pump Line Cord | Included |
| Differential Controller | Not Included |
| Expansion Tank | Not Included |
Product Highlights
- Genuine SunEarth SRS-FLOWBOX pump group.
- Designed for residential indirect glycol solar water-heating systems.
- Includes Grundfos UPS15-58U three-speed pump.
- Factory-integrated filling, purging, balancing, and monitoring components.
- Built-in temperature and pressure gauges.
- Pressure relief valve and air separator.
- Compact insulated polypropylene enclosure.
- Includes pump line cord for external controller connection.
- Controller and expansion tank sold separately.
Technical Documents
- SunEarth 2026 Product Catalog (PDF)
- SolarStation Specification Sheet — PDF upload pending
-
SolarStation Installation Manual
- SunEarth SolarStation Warranty — PDF upload pending
Installation & Availability: Select the pump group using verified flow, head, system pressure, and collector sizing requirements. Install with appropriate external controls and expansion provisions. Confirm exact-SKU availability and current technical specifications before ordering.
