SunEarth SolarStation XL Commercial Solar Pump Station
Models 100005-2 & 100005-5 • Commercial Solar Water Heating • Closed-Loop Glycol Systems
The SunEarth SolarStation XL is a factory-assembled commercial solar thermal pump station designed to integrate solar circulation, potable-water circulation, heat exchange, and system monitoring into one coordinated mechanical assembly.
Designed for commercial domestic hot water systems and engineered solar thermal installations, the SolarStation XL reduces the amount of on-site assembly required by combining pumps, hydraulic components, a brazed plate heat exchanger, and controls in a commercial-grade enclosure.

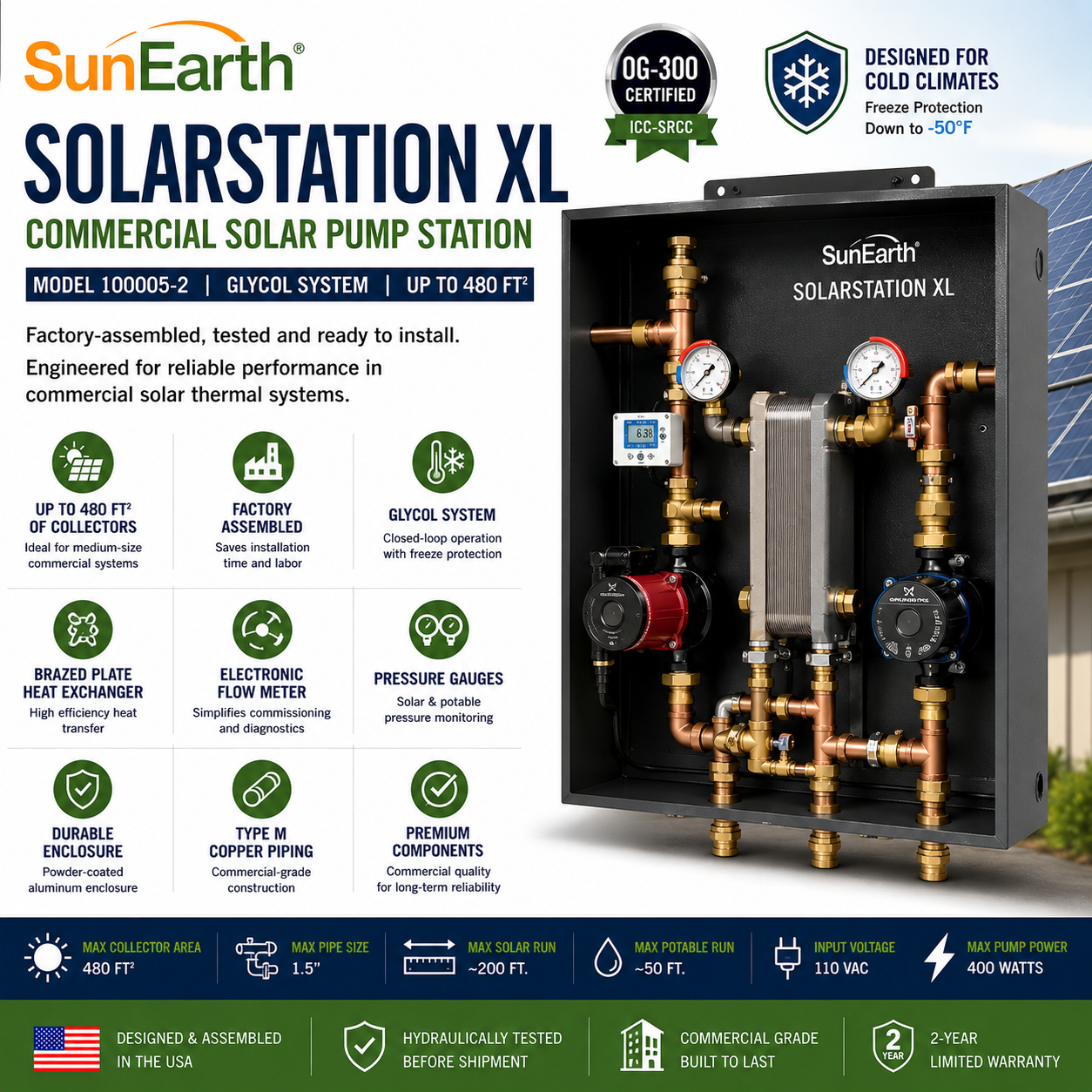

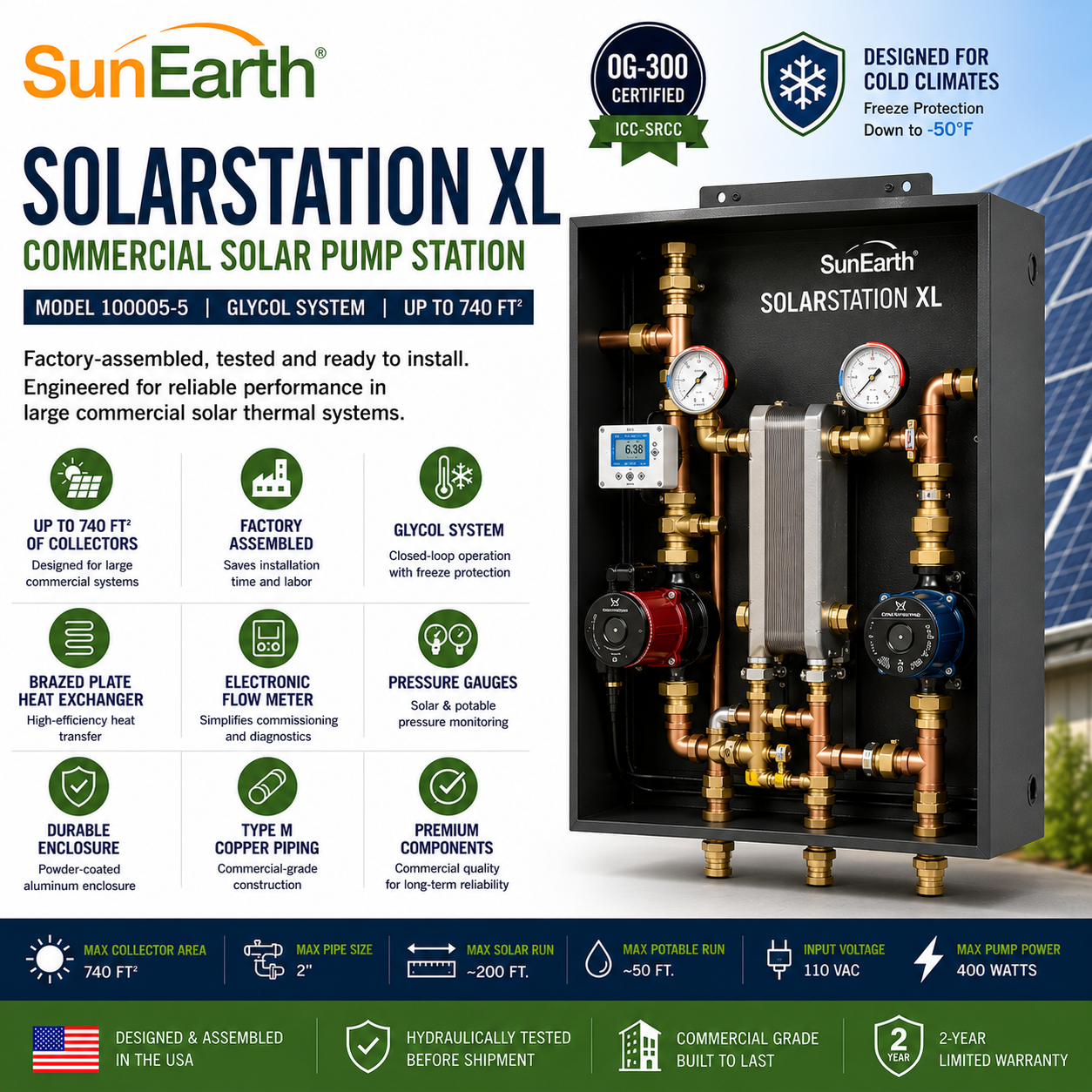

The series includes model 100005-2 for collector systems rated up to 480 square feet and model 100005-5 for larger installations. The latter is designated 740 ft² in the manufacturer's available-model list; the published technical rating table specifies 720 ft². Confirm the current approved collector sizing before ordering.
Each station features Type M copper piping, a powder-coated aluminum cover, an electronic flow meter, pressure instrumentation, and a stainless steel brazed plate heat exchanger. Multi-speed circulator pumps provide circulation on the solar and potable sides of the system.
SolarStation XL assemblies are factory assembled and hydraulically tested by SunEarth. Integrated service valves facilitate system filling, flushing, commissioning, and maintenance.
Available Models
| Manufacturer SKU | Model Designation | Technical Rating |
|---|---|---|
| 100005-2 | 480 ft² SolarStation XL | 480 ft² collector area |
| 100005-5 | 740 ft² SolarStation XL | 720 ft² in technical table; confirm current revision |
Key Features & Benefits
| Feature | Details & Benefits |
|---|---|
| Factory-Assembled Station | Reduces field fabrication and installation work. |
| Closed-Loop Glycol Operation | Designed for compatible freeze-protected solar thermal systems. |
| Integrated Heat Exchanger | 316 stainless steel brazed plate heat exchanger transfers heat between the solar and potable circuits. |
| Multi-Speed Circulators | Selectable pump speeds support project-specific hydraulic balancing. |
| Electronic Flow Meter | Supports monitoring, commissioning, and system performance evaluation. |
| Pressure & Temperature Sensing | Instrumentation supports system monitoring and diagnostics. |
| Differential Temperature Control | Pump operation responds to temperature conditions within the solar thermal system. |
| System Data Logging | Controller supports Micro-SD data recording and optional connectivity per manufacturer specifications. |
| Service & Isolation Valves | Facilitate flushing, draining, filling, and maintenance. |
| Powder-Coated Aluminum Cover | Provides a protective commercial equipment enclosure. |
| Factory Hydraulic Testing | Completed before shipment to support installation reliability. |
Technical Specifications
| Specification | 100005-2 | 100005-5 |
|---|---|---|
| Collector Area | 480 ft² | 720 ft² technical rating; 740 ft² model designation |
| Maximum Nominal Pipe Size | 1-1/2" | 2" |
| Maximum Solar Plumbing Run | Approx. 200 ft | Approx. 200 ft |
| Maximum Potable Plumbing Run | Approx. 50 ft | Approx. 50 ft |
| Maximum Static Head | Not specified | 25 ft |
| Input Voltage | 110 VAC | 110 VAC |
| Maximum Pump Power | 400 W | 400 W |
General Materials & Components
| Specification | Details |
|---|---|
| Manufacturer | SunEarth |
| Series | SolarStation XL |
| Product Type | Commercial Solar Thermal Pump Station |
| System Type | Closed-Loop Glycol |
| Cover | Powder-Coated Aluminum |
| Plumbing | Type M Copper |
| Heat Exchanger | Brazed Plate, 316 Stainless Steel Plates |
| Solar Pump Wetted Surfaces | Cast Iron |
| Potable Pump Wetted Surfaces | Stainless Steel |
| Flow Meter | Electronic |
| Pressure Gauges | Solar & Potable |
| Temperature Control | Differential Controller |
| Data Logging | Micro-SD; optional internet connectivity |
| Hydraulic Testing | Factory Tested |
| Warranty | 2-Year Limited Manufacturer Warranty |
Product Highlights
- Commercial solar thermal pump station for engineered systems.
- 480 ft² and 740 ft² manufacturer model designations.
- Factory-assembled and hydraulically tested.
- Separate solar and potable circulation pumps.
- 316 stainless steel brazed plate heat exchanger.
- Type M copper plumbing and powder-coated aluminum cover.
- Integrated controller, flow monitoring, and pressure instrumentation.
- Service valves for installation and maintenance.
- 2-year limited manufacturer warranty, subject to warranty terms.
Technical Documents
- SunEarth 2026 Product Catalog (PDF)
- SolarStation XL Specification Sheet
- SolarStation XL Installation Manual
- SunEarth SolarStation Warranty
System Selection & Availability: Confirm the applicable collector-area rating, required flow, system head, heat exchanger configuration, electrical requirements, and current availability with SunEarth before placing an order.
