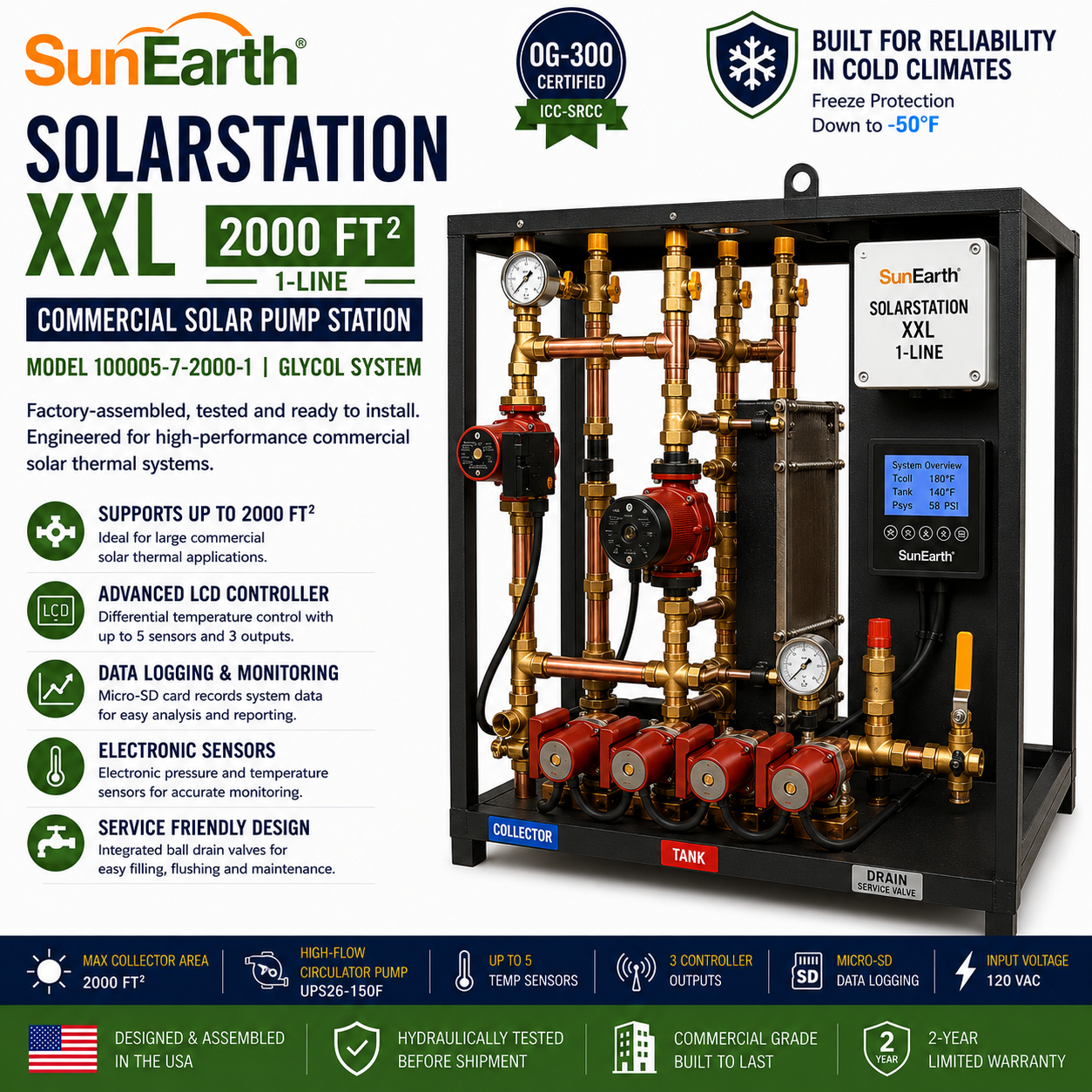

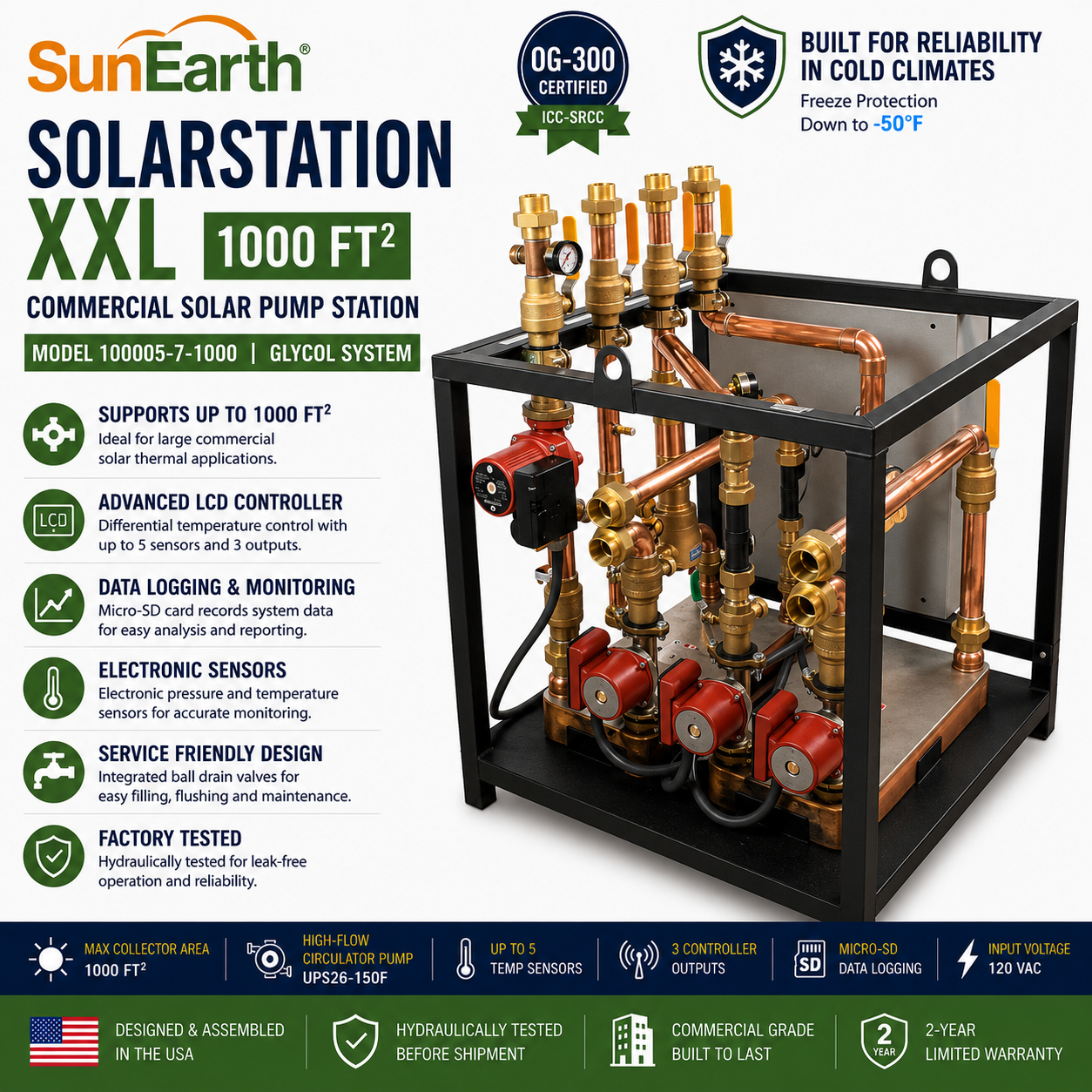

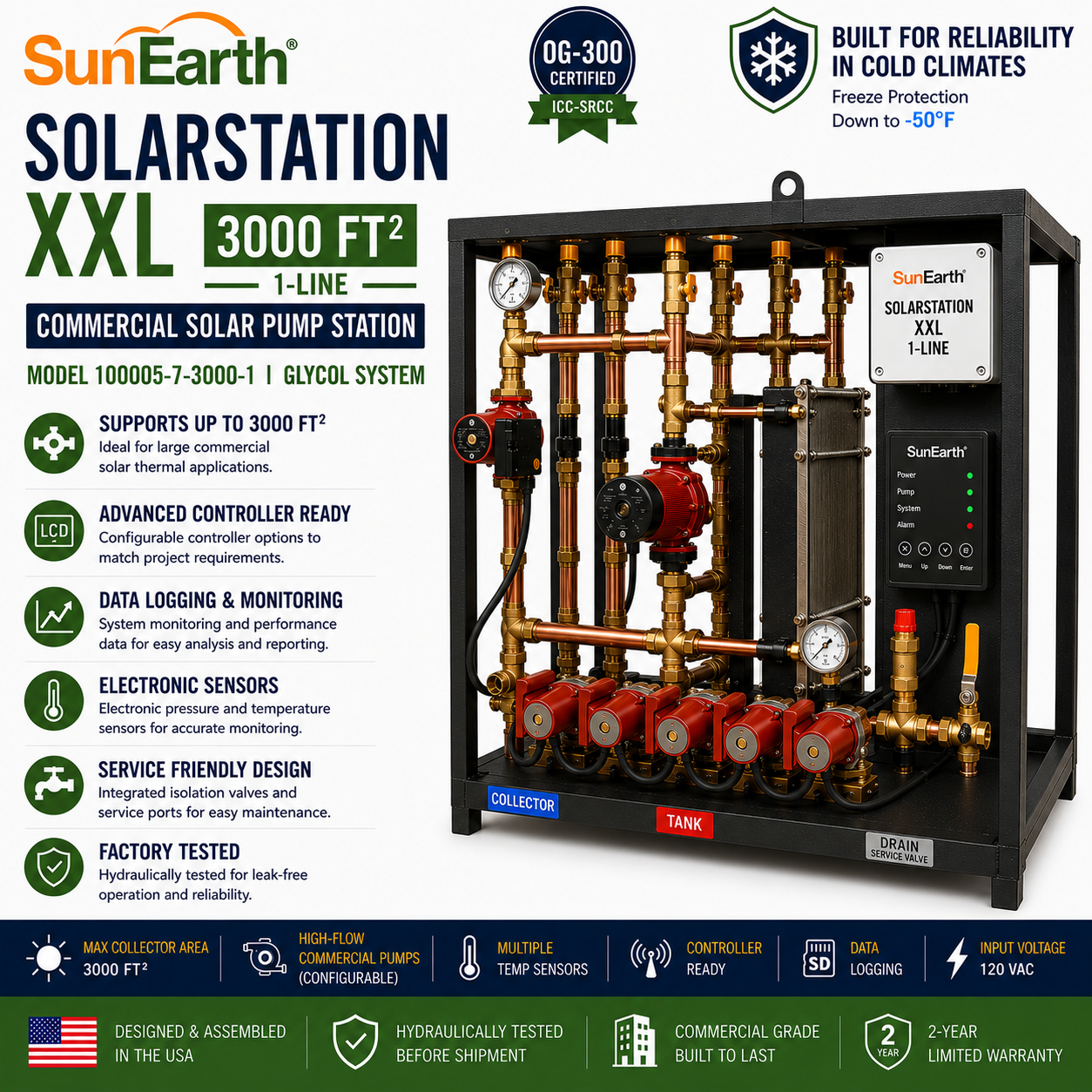

SunEarth SolarStation XXL Commercial Solar Pump Station – Pressurized Models
1,000–3,000 ft² Solar Collector Systems | Pressurized Storage Configurations | Commercial Solar Thermal
The SunEarth SolarStation XXL is a factory-assembled commercial solar thermal pump station designed for large-scale solar water-heating applications. These models are configured for pressurized storage systems and are available in three collector capacity classes: 1,000, 2,000, and 3,000 square feet.
Engineered for commercial domestic hot water applications, multifamily buildings, institutions, and other large solar thermal installations, the SolarStation XXL integrates commercial circulation equipment, heat exchangers, control components, and hydraulic piping into a consolidated mechanical assembly.
Each station incorporates commercial wet-rotor circulators, stainless steel brazed plate heat exchangers, a welded steel frame, and integrated system monitoring components. Factory assembly helps reduce mechanical installation work and simplifies system integration.
The SolarStation XXL series provides a centralized pumping and heat exchange solution for commercial solar thermal projects. Selection of the correct model depends on collector area, hydraulic requirements, storage configuration, and project engineering.
Available Pressurized Models
| Manufacturer SKU | Collector Capacity | Configuration |
|---|---|---|
| 100005-7-1000-1 | 1,000 ft² | Pressurized |
| 100005-7-2000-1 | 2,000 ft² | Pressurized |
| 100005-7-3000-1 | 3,000 ft² | Pressurized |
Key Features & Benefits
| Feature | Benefit |
|---|---|
| Pressurized System Configuration | Designed for integration with compatible pressurized storage systems. |
| Three Collector Capacity Options | Available for 1,000, 2,000, and 3,000 ft² solar collector arrays. |
| Factory-Assembled Pump Station | Consolidated mechanical components help reduce installation time and on-site assembly. |
| Commercial Circulators | Integrated wet-rotor pumps support commercial solar thermal circulation. |
| Stainless Steel Heat Exchangers | Brazed plate heat exchangers provide heat transfer between the designed circuits. |
| Welded Steel Frame | Supports integrated piping and commercial mechanical components. |
| Differential Temperature Control | Provides temperature- based circulation control for solar thermal systems. |
| Flow Monitoring | Electronic flow measurement assists commissioning and system diagnostics. |
| Service Connections | Integrated hydraulic service components facilitate maintenance. |
| Factory Hydraulic Testing | Assembly is tested for hydraulic integrity prior to shipment. |
Technical Specifications
| Specification | 1000-1 | 2000-1 | 3000-1 |
|---|---|---|---|
| Manufacturer SKU | 100005-7-1000-1 | 100005-7-2000-1 | 100005-7-3000-1 |
| Collector Capacity | 1,000 ft² | 2,000 ft² | 3,000 ft² |
| Storage Configuration | Pressurized | Pressurized | Pressurized |
| Connection Size | 1-1/2" | 2" | 2" |
| Input Voltage | 110 VAC | 110 VAC | 110 VAC |
| Maximum Pump Power | 500 W | 500 W | 500 W |
| Heat Exchanger Area | 33 ft² | 68 ft² | 104 ft² |
| Heat Exchanger Rating | 1,330 kBtu/h | 2,660 kBtu/h | 3,990 kBtu/h |
General Construction & Components
| Component | Specification |
|---|---|
| Manufacturer | SunEarth |
| Product Series | SolarStation XXL |
| Product Type | Commercial Solar Thermal Pump Station |
| Application | Commercial Solar Water Heating |
| Frame Construction | Welded Steel |
| Plumbing Material | Type M Copper Pipe |
| Heat Exchanger Type | Brazed Plate |
| Heat Exchanger Material | 316 Stainless Steel |
| Solar Circulation Pump | Wet Rotor, Cast Iron Wetted Surfaces |
| Potable Circulation Pump | Wet Rotor, Stainless Steel Wetted Surfaces |
| Controller | Differential Temperature Controller |
| Flow Monitoring | Electronic Flow Meter |
| Hydraulic Testing | Factory Tested |
Product Highlights
- Three dedicated pressurized SolarStation XXL configurations.
- Designed for collector areas from 1,000 to 3,000 ft².
- Factory-assembled commercial pumping and heat exchange station.
- Welded steel frame with integrated copper piping.
- Commercial wet-rotor circulation pumps.
- Brazed plate stainless steel heat exchangers.
- Differential temperature control and flow monitoring.
- Integrated service connections for commissioning and maintenance.
- Suitable for engineered commercial solar thermal installations.
Technical Documents
- SunEarth 2026 Product Catalog (PDF)
- SolarStation XXL Specification Sheet
- SolarStation XXL Installation & Owner's Manual
- SolarStation XXL Warranty
Installation & Selection Notice: SolarStation XXL equipment requires project-specific hydraulic engineering. Confirm collector area, pump configuration, storage compatibility, electrical requirements, and mechanical connections with SunEarth before ordering.
