SunEarth Solflux SWH Controller 120VAC
SunEarth Solflux SWH Controller 120VAC is backordered and will ship as soon as it is back in stock.

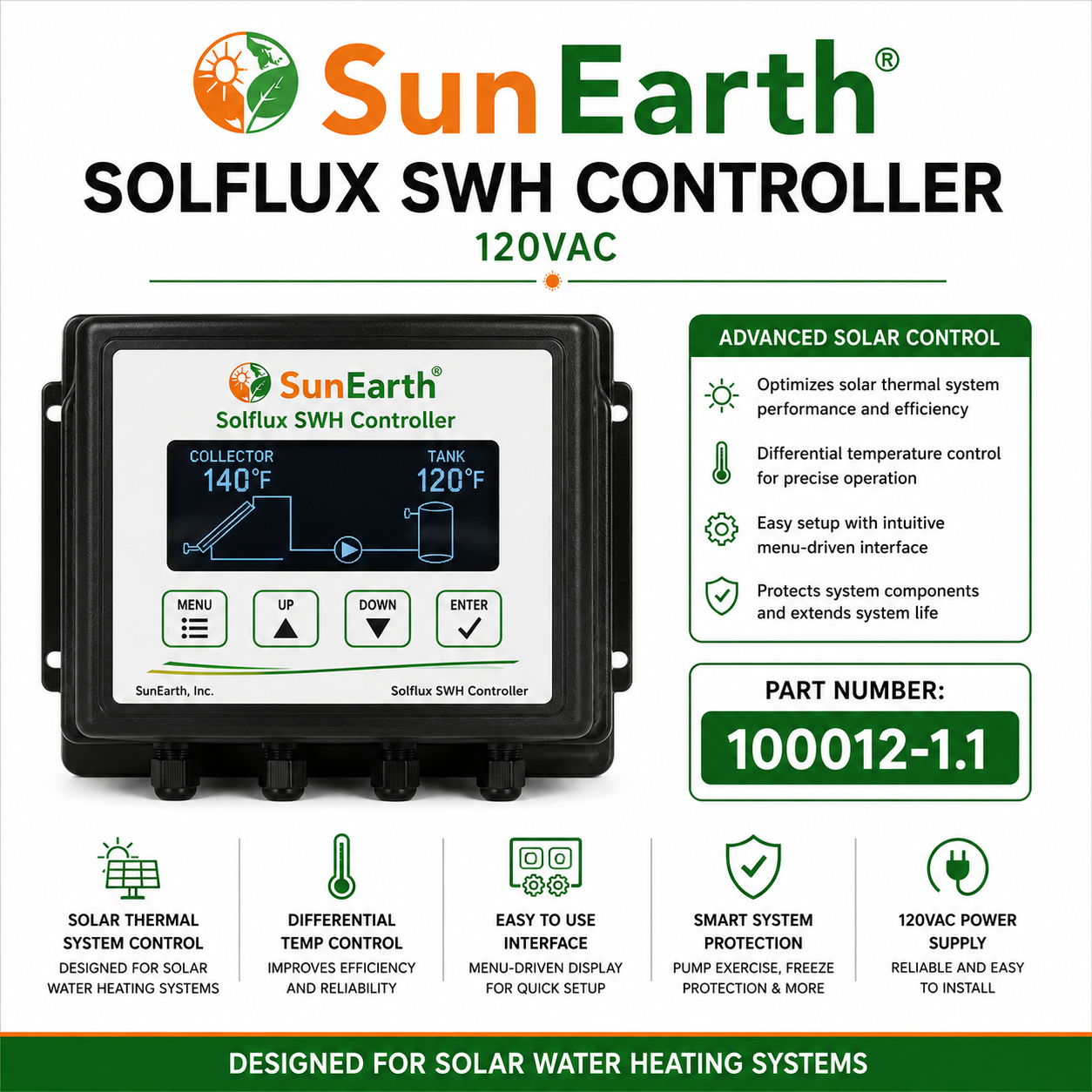

The SunEarth SolFlux Solar Water Heating Controller 120 VAC, part number 100012-1.1, is the 120 VAC ordering option for the SESF-3221 controller. It manages solar water heating equipment using temperature inputs and the selected system configuration.
The original SolFlux combines an LCD interface, push-button programming and Wi-Fi connectivity for remote monitoring. Its heat-energy monitoring functions can be expanded with compatible flow and pressure sensors as required by the system design.
Key Features
| Feature | Details |
|---|---|
| Solar water heating control | Temperature-based control for compatible active solar water heating systems. |
| Five system design types | Pre-programmed system configurations support commissioning for the applicable installation. |
| LCD and push-button interface | On-controller access to system information and settings. |
| Remote monitoring | Two-way web or mobile access through the supported Wi-Fi setup. |
| Sensor expansion | Inputs for compatible temperature, flow and pressure sensing; additional accessories may be required. |
| Pump control options | Relay outputs and supported control signals for compatible equipment. Verify electrical load and wiring requirements against the supplied unit's manual. |
| System monitoring | Fault diagnosis and system-status reporting support operation and troubleshooting. |
Technical Specifications
| Specification | Details |
|---|---|
| Brand | SunEarth |
| Product | Original SolFlux solar water heating controller |
| Ordering part number | 100012-1.1 |
| Controller model | SESF-3221 |
| Ordering voltage | 120 VAC, 60 Hz. Confirm the supplied unit's nameplate and wiring requirements. |
| Display and controls | LCD with multifunction push buttons |
| System design types | 5 |
| Temperature inputs | 3 Pt1000 temperature inputs, per manufacturer specification sheet |
| Additional sensor inputs | 1 Grundfos Direct Sensor input for temperature/flow and 1 for temperature/pressure; compatible accessories required. |
| Control outputs | 3 outputs. Confirm output arrangement, signal compatibility and load ratings for the supplied revision. |
| Connectivity | Wi-Fi; supported web/mobile monitoring and remote software updates |
| Dimensions, W × H × D | 4.76 × 7.4 × 2.6 inches, per manufacturer specification sheet |
| Mounting | Wall mounted |
| Enclosure protection | IP22 with front panel installed, per manufacturer specification sheet |
| Ambient operating range | 32°F to 132°F, per manufacturer specification sheet |
| Included temperature sensors | Manufacturer specification sheet lists 3 sensors |
Product Highlights
- Verified ordering identity: SunEarth's July 2025 specification sheet identifies 100012-1.1 as the 120 VAC SESF-3221 option.
- Local and remote access: LCD operation with supported web/mobile connectivity.
- Expandable monitoring: Compatible sensors can support flow, pressure and heat-energy reporting.
- Original SolFlux model: This listing is not the SolFlux2 touchscreen controller.
Technical Documents & Manufacturer Image
- SolFlux SESF-3221 Specification Sheet (PDF, June 2022)
- SolFlux SESF-3221 Specification Sheet, July 2025
-
SunEarth 2026 Product Catalog (PDF)
Installation information: Use the manual and electrical ratings applicable to the supplied controller. Correct sensor selection, system configuration and wiring are required. Freeze recirculation, where configured, does not guarantee freeze protection under all conditions.
