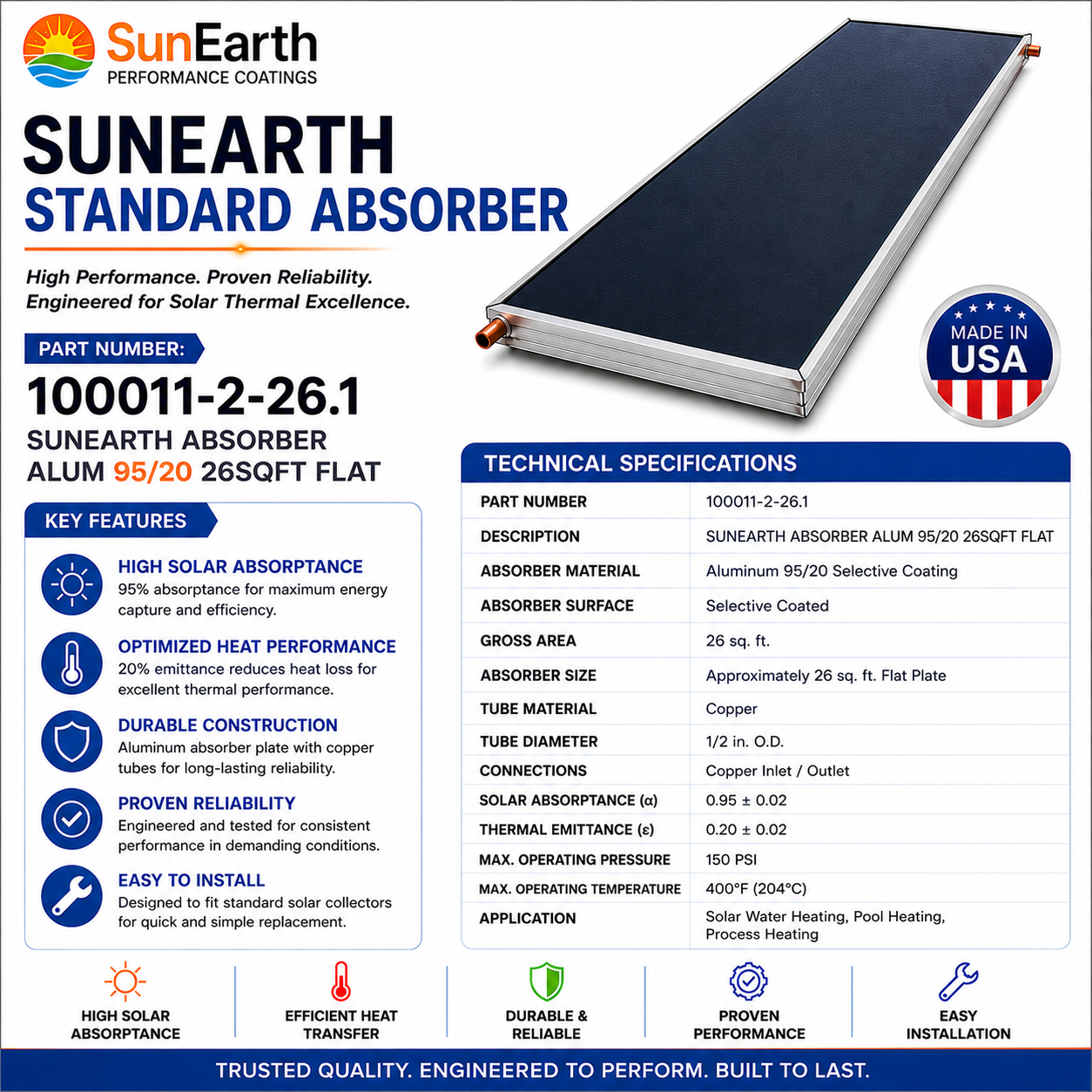

SunEarth Standard Absorber Alum 95/20 26SQFT Flat
SunEarth Standard Absorber Alum 95/20 26SQFT Flat is backordered and will ship as soon as it is back in stock.
SunEarth Standard Aluminum Absorber β 26 sq. ft. (90/20)
Part Number: 100011-2-26.1
The SunEarth 100011-2-26.1 is a 26 sq. ft. standard flat aluminum absorber listed with a 90/20 coating designation. This component is intended for use within a solar thermal collector assembly.
When selecting a replacement absorber, confirm the plate dimensions, manifold connections, and collector compatibility with SunEarth to ensure the correct fit.
Product Highlights
- Nominal size: 26 sq. ft.
- Absorber material: Aluminum.
- Configuration: Standard flat absorber.
- Coating designation: 90/20.
- Manufacturer part number: 100011-2-26.1.
Technical Specifications
| Specification | Details |
|---|---|
| Manufacturer | SunEarth |
| Product | Standard absorber |
| Part Number | 100011-2-26.1 |
| Price List Description | SUNEARTH ABSORBER ALUM 90/20 26SQFT FLAT |
| Nominal Area | 26 sq. ft. |
| Absorber Material | Aluminum |
| Configuration | Flat |
| Coating Designation | 90/20 |
TR-Series Absorber Construction Reference
The following information is from page 2 of SunEarthβs August 2025 ThermoRay TR specification sheet. Verify applicability with SunEarth before using these values for system design or replacement selection.
| Specification | TR-Series Reference |
|---|---|
| Aluminum Plate Thickness | Minimum 0.017 in. |
| Copper Riser Outside Diameter | Minimum 0.50 in. |
| Riser Wall Thickness | 0.025 in. |
| Riser Spacing | Maximum 4.7 in. on center |
| Riser Attachment | Continuously laser welded to the aluminum plate |
| Manifolds | Type M copper, 1.125 in. outside diameter |
| Maximum Operating Pressure | 160 psig |
| Maximum Operating Temperature | 400Β°F (204Β°C) |
| Coating | Black selective lacquer |
| Solar Absorptivity | Minimum 90% |
| Thermal Emissivity | Maximum 20% |
Technical Documents
SunEarth Standard Absorber Alum 95/20 26SQFT Flat
