SunEarth Standard Absorber Alum 95/5 32SQFT Flat
SunEarth Standard Absorber Alum 95/5 32SQFT Flat is backordered and will ship as soon as it is back in stock.

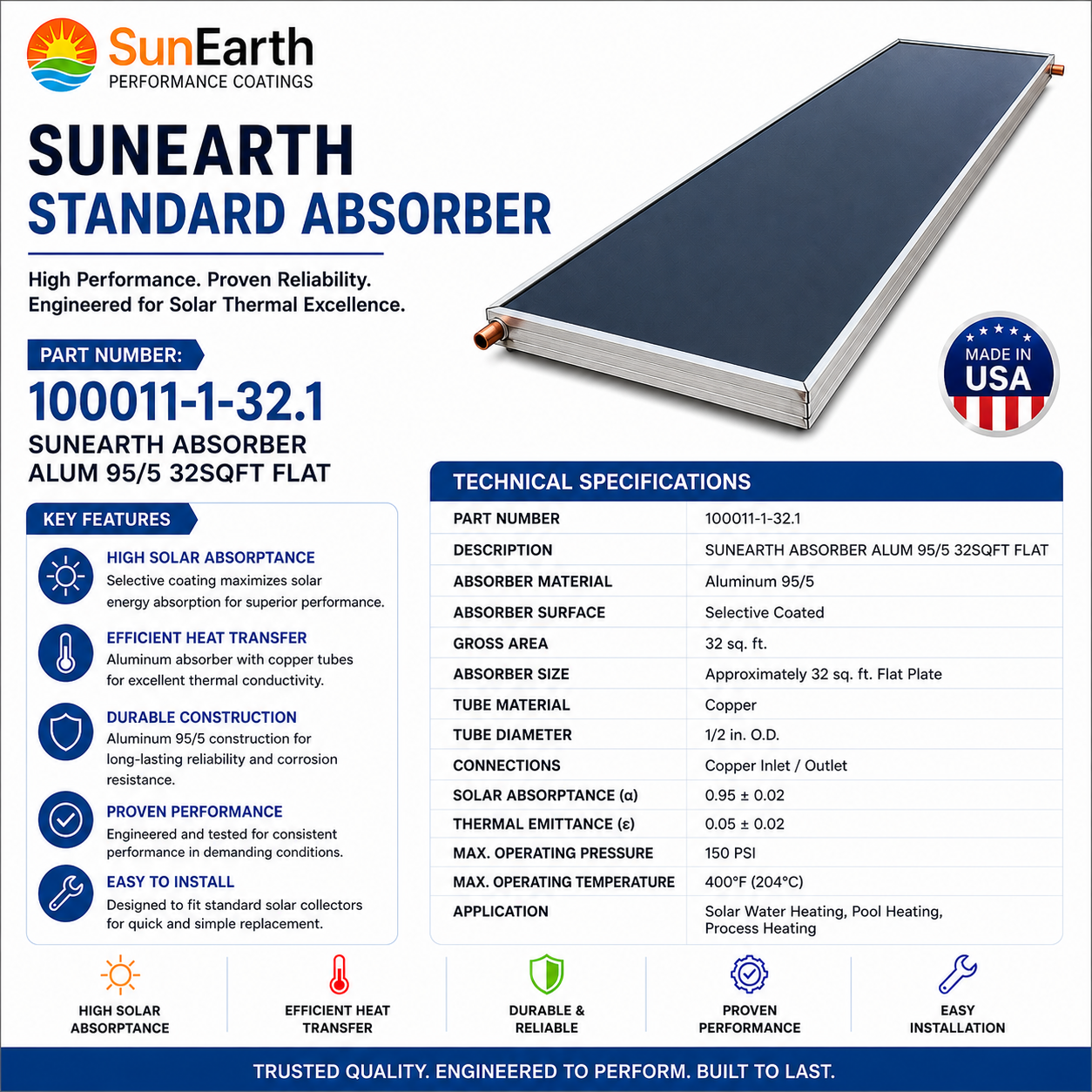

SunEarth Standard Aluminum Absorber – 32 sq. ft. (95/5)
Part Number: 100011-1-32.1
The SunEarth 100011-1-32.1 is a 32 sq. ft. standard flat aluminum absorber with a 95/5 coating designation. Its selective surface is designed to absorb solar energy while limiting thermal emission.
This product is an absorber component for a solar thermal collector assembly. For replacement applications, confirm the plate dimensions, tubing arrangement, manifold connections, and collector compatibility with SunEarth before ordering.
Product Highlights
- Nominal size: 32 sq. ft.
- Absorber material: Aluminum.
- Configuration: Standard flat absorber.
- Coating designation: 95/5.
- Manufacturer part number: 100011-1-32.1.
Technical Specifications
| Specification | Details |
|---|---|
| Manufacturer | SunEarth |
| Product | Standard absorber |
| Part Number | 100011-1-32.1 |
| Price List Description | SUNEARTH ABSORBER ALUM 95/5 32SQFT FLAT |
| Nominal Area | 32 sq. ft. |
| Absorber Material | Aluminum |
| Configuration | Flat |
| Coating Designation | 95/5 |
ThermoRay Blue Absorber Construction Reference
| Specification | Family Reference |
|---|---|
| Aluminum Plate Thickness | Minimum 0.017 in. |
| Heat Transfer Risers | Copper, laser welded to the aluminum plate |
| Riser Spacing | Maximum 4.7 in. on center |
| Coating | Blue sputtered selective surface |
| Solar Absorptivity | Minimum 95% |
| Thermal Emissivity | Maximum 5% |
| Maximum Operating Pressure | 160 psig |
| Maximum Operating Temperature | 400°F (204°C) |
Technical Documents
SunEarth Standard Absorber Alum 95/5 32SQFT Flat
