SunEarth SU 80/120 Gallon Universal Solar Storage Tank | Residential Solar Water Heating
SunEarth SU 80/120 Gallon Universal Solar Storage Tank | Residential Solar Water Heating - 80 Gal is backordered and will ship as soon as it is back in stock.
SunEarth SU Series Solar Thermal Storage Tanks — 80 & 119 Gallon
Universal Solar Thermal Storage • Direct or Indirect System Applications • Electric Backup
The SunEarth Preferred SU Series is designed for residential solar water heating applications requiring reliable hot water storage and flexible plumbing connections.
Available in nominal 80- and 120-gallon model classes, with manufacturer-published capacities of 80 and 119 gallons, these storage tanks are suited for direct (open-loop) solar systems or indirect systems incorporating an external heat exchanger.
Each SU Series tank features a fully glass-lined construction, magnesium anode protection, and 2-inch-thick R16 insulation to help protect the tank and reduce standby heat loss.
A 4,500-watt electric heating element provides supplemental hot water heating when solar energy is insufficient. Top and side plumbing connections offer flexibility for replacement projects and new installations.
SunEarth backs the SU Series with a 6-year limited tank and parts warranty, subject to the manufacturer's applicable warranty terms.
Available Tank Models
| Model | Capacity | Application |
|---|---|---|

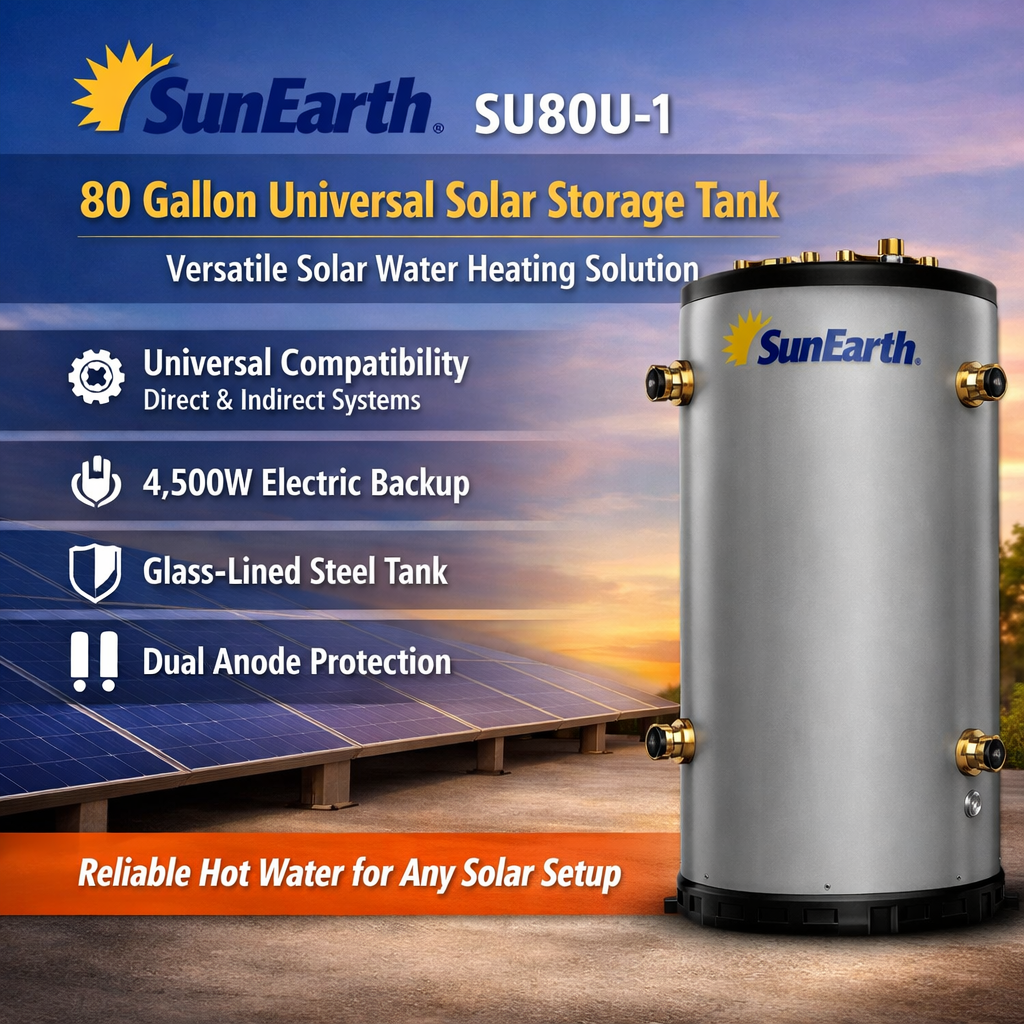

| SU80U-1 | 80 Gallons | Residential solar hot water storage |
| SU120U-1 | 119 Gallons | Residential solar hot water storage |
Exact model numbers and capacities should be confirmed against current manufacturer documentation before publication.
Key Features & Benefits
| Feature | Details & Benefits |
|---|---|
| Two Tank Capacities | 80- and 119-gallon storage options for residential solar thermal applications. |
| Direct & Indirect System Applications | Designed for open-loop solar water heating or integration with an external heat exchanger in indirect systems. |
| Electric Backup Heating | 4,500-watt heating element provides supplemental water heating. |
| Glass-Lined Tank | Fully glass-lined construction supports corrosion resistance. |
| Magnesium Anode Protection | Magnesium anode rod with stainless steel core. |
| R16 Foam Insulation | Two-inch-thick insulation helps minimize standby heat loss. |
| Flexible Plumbing Connections | Top and side connections accommodate different installation layouts. |
| Temperature & Pressure Protection | Factory-included CSA-certified and ASME-rated T&P relief valve. |
| Drain Valve | Tamper-resistant brass drain valve for maintenance access. |
| Limited Warranty | Six-year limited tank and parts coverage. |
Technical Specifications
| Specification | SU80U-1 | SU120U-1 |
|---|---|---|
| Manufacturer | SunEarth | SunEarth |
| Series | Preferred SU | Preferred SU |
| Tank Capacity | 80 Gallons | 119 Gallons |
| Application | Solar DHW Storage | Solar DHW Storage |
| System Configuration | Direct / External HX | Direct / External HX |
| Electric Backup | 4,500 W | 4,500 W |
| Tank Construction | Glass-Lined Steel | Glass-Lined Steel |
| Anode Protection | Magnesium | Magnesium |
| Insulation | 2" R16 | 2" R16 |
| Connection Layout | Top & Side | Top & Side |
| Warranty | 6-Year Limited | 6-Year Limited |
Product Highlights
- SunEarth Preferred SU Series solar thermal storage tanks.
- Available in 80- and 119-gallon capacities.
- Compatible with direct solar systems or indirect systems using external heat exchangers.
- 4,500-watt electric backup heating element.
- Fully glass-lined tank with magnesium anode protection.
- Two-inch R16 foam insulation.
- Flexible top and side plumbing connections.
- Six-year limited manufacturer tank and parts warranty.
Technical Documents
- SunEarth 2026 Product Catalog (PDF)
- SU Series Specification Sheet
- SU Series Use and Care Manual
- SU Series Six-Year Warranty
Installation Note: Confirm the required system configuration, electrical service, plumbing connections, and manufacturer instructions before installation.
