SunEarth SU Heat Exchange Tank 80/120 Gal
SunEarth SU Heat Exchange Tank 80/120 Gal - 80 Gal is backordered and will ship as soon as it is back in stock.
SunEarth SU80HE-1 & SU120HE-1 Double-Wall Solar Heat Exchange Tanks
80/120 Gallon Model Classes • Double-Wall Heat Exchanger • Residential Indirect Solar Thermal Storage
The SunEarth HE Series solar storage tanks are designed for indirect solar water-heating systems where heat must be transferred from a solar collector circuit into stored domestic hot water.
Unlike conventional tanks that rely on an immersed internal coil, the SunEarth HE design incorporates copper heat exchange tubing wrapped around and secured to the storage tank. This arrangement transfers thermal energy through the tank wall without mixing solar heat-transfer fluid with stored potable water.
The heat exchanger incorporates a vented double-wall configuration that provides an additional protective barrier between the solar collector fluid and domestic hot water.
Designed for residential indirect solar thermal applications, the tanks include supplemental electric water heating, corrosion-resistant tank lining, anode protection, and accessible plumbing connections.
SunEarth identifies a 6-year limited warranty for the SU HE tank family, subject to the applicable manufacturer warranty statement.
Available Models
| Model | Nominal Class | Application |
|---|---|---|

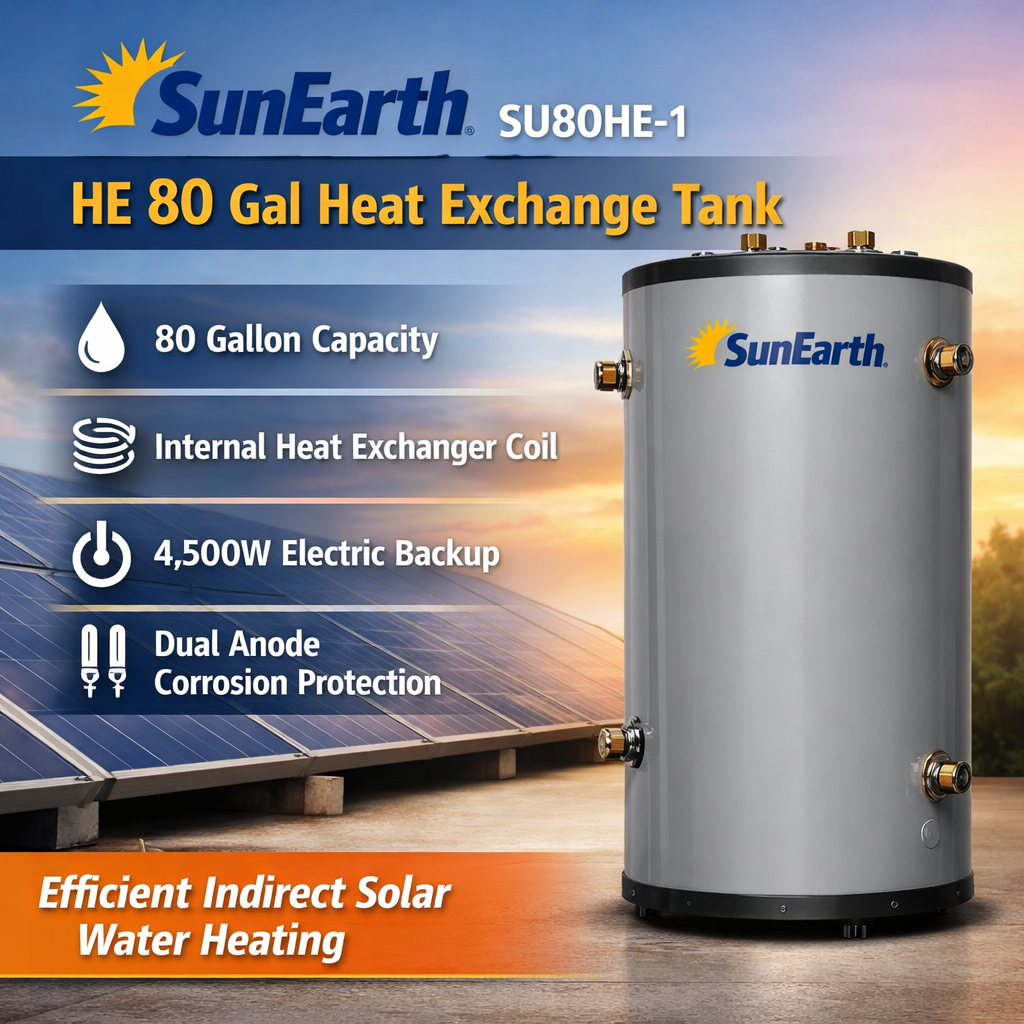

| SU80HE-1 | 80 Gallon Class | Indirect Solar Storage |

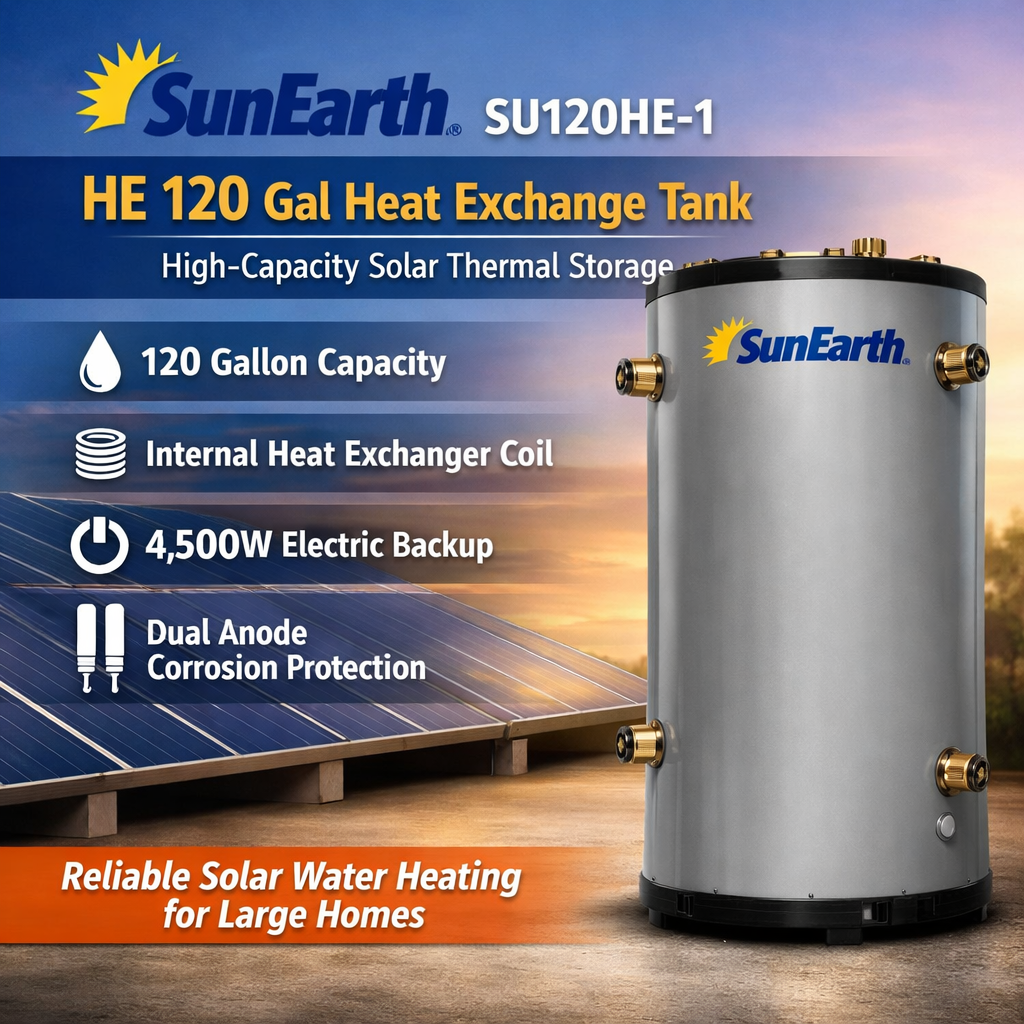

| SU120HE-1 | 120 Gallon Class | Indirect Solar Storage |
Confirm exact manufacturer part numbers and rated storage capacities before publication.
Key Features & Benefits
| Feature | Details & Benefits |
|---|---|
| Double-Wall Heat Exchanger | Provides a protective separation between solar heat-transfer fluid and stored potable water. |
| Copper Heat Exchange Tubing | Copper tubing wrapped around the tank transfers collected solar heat into domestic water storage. |
| Vented Construction | Double-wall vented design supports leak detection. |
| Indirect Solar Compatibility | Engineered for residential indirect solar water-heating applications. |
| Supplemental Electric Heating | Factory electric heating element provides backup water heating when needed. |
| Corrosion Protection | Corrosion-resistant tank lining and anode rod help protect the vessel. |
| Accessible Connections | Collector connections at the front and domestic water connections at the top simplify system integration. |
| Temperature Protection | Includes temperature control, over-temperature protection, and a temperature/pressure relief valve. |
| Manufacturer Warranty | Six-year limited SU HE tank warranty, subject to manufacturer terms. |
Technical Specifications
| Specification | SU80HE-1 | SU120HE-1 |
|---|---|---|
| Manufacturer | SunEarth | SunEarth |
| Tank Class | 80 Gallon | 120 Gallon |
| Application | Indirect Solar DHW | Indirect Solar DHW |
| Heat Exchanger | External Tank-Wrapped Copper Tubing | External Tank-Wrapped Copper Tubing |
| Heat Exchanger Design | Double Wall / Vented | Double Wall / Vented |
| Tank Lining | Corrosion Resistant | Corrosion Resistant |
| Anode Protection | Anode Rod | Anode Rod |
| Plumbing Connections | Top / Front | Top / Front |
| Warranty | 6-Year Limited | 6-Year Limited |
Product Highlights
- Residential indirect solar hot water storage applications.
- Double-wall, vented copper heat exchanger construction.
- Heat exchange tubing wrapped around the storage tank.
- Solar fluid separated from stored potable water.
- Supplemental electric water heating.
- Corrosion-resistant tank lining and anode protection.
- Convenient plumbing connection arrangement.
- Six-year limited manufacturer warranty.
Technical Documents
- SunEarth 2026 Product Catalog (PDF)
- HE Series Solar Storage Specification Sheet
- HE Solar Tank Use and Care Manual
-
SU HE Solar Tank 6-Year Warranty
Installation Note: Verify the precise tank model, electrical requirements, plumbing connections, collector fluid compatibility, temperature and pressure ratings, and applicable installation instructions with SunEarth before installation.
