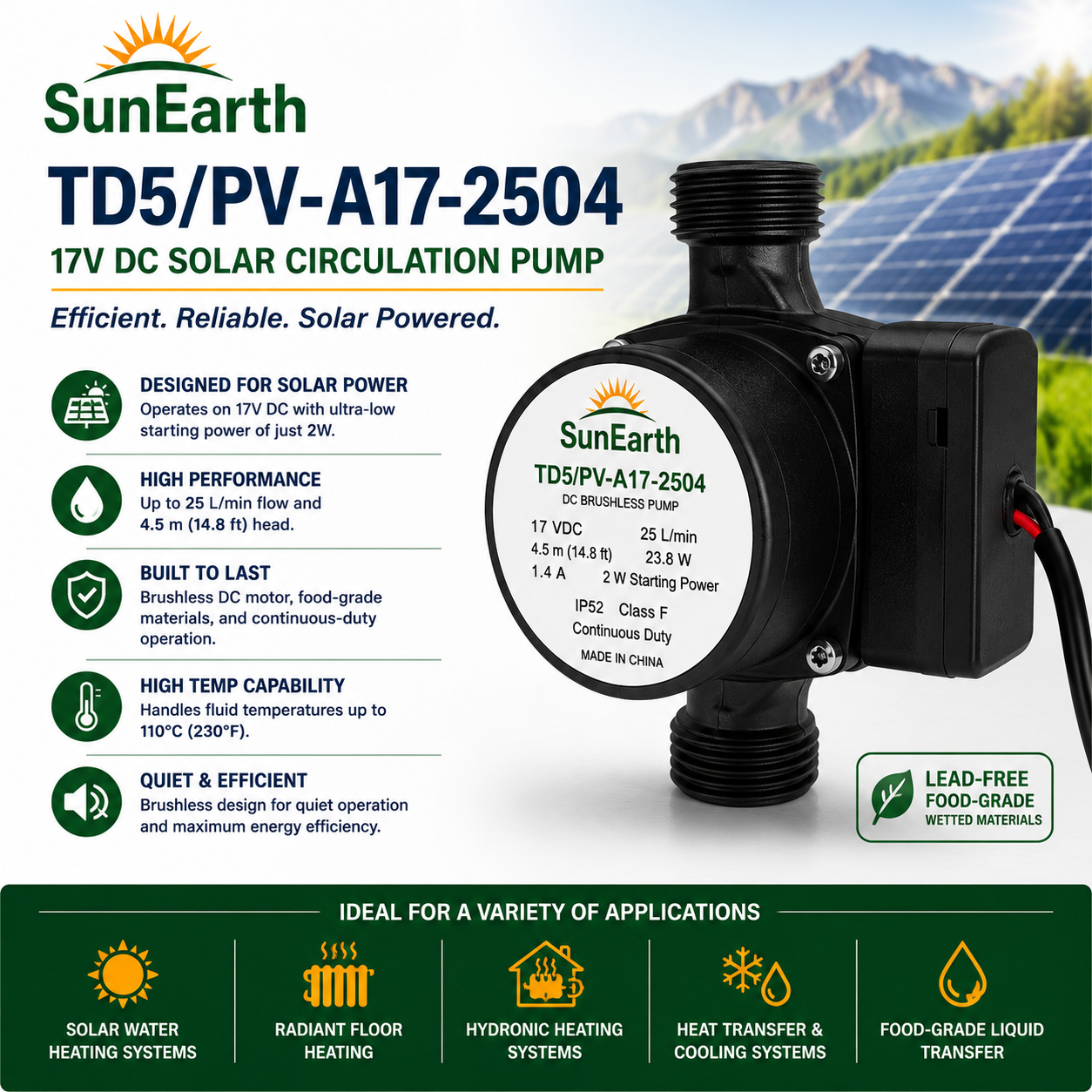

SunEarth TD5/PV-A17-2504 17V DC Solar Circulation Pump
SunEarth TD5/PV-A17-2504 17V DC Solar Circulation Pump is backordered and will ship as soon as it is back in stock.
SunEarth TD5/PV-A17-2504 DC Solar Circulation Pump
17 VDC | Brushless Motor | Photovoltaic Circulation
The SunEarth-supplied TD5/PV-A17-2504 is a TOPSFLO brushless DC circulation pump for solar water heating and compatible heat-transfer loops. Its photovoltaic operating design supports circulation powered by a suitably matched solar panel.
Choose the pump using the manufacturer’s performance curve and the system’s required flow and head. The published maximum-flow and maximum-head values describe separate endpoints, not a simultaneous operating point.
Key Features & Benefits
| Feature | Benefit |
|---|---|
| Brushless DC motor | Supports DC-powered solar circulation. |
| Photovoltaic operation | Designed for direct PV power with low-power starting. |
| Continuous operation | Suitable for continuous-duty circulation within operating limits. |
| Stainless steel pump chamber | Manufacturer identifies a stainless steel head/chamber. |
| Compact pump design | Integrates into appropriately designed circulation loops. |
Technical Specifications
| Specification | Details |
|---|---|
| Brand / Supplier | SunEarth |
| Pump Manufacturer | TOPSFLO / TOPS Industry and Technology |
| Part Number | TD5/PV-A17-2504 |
| Rated Voltage | 17 VDC |
| Rated Current | 1.4 A |
| Rated Power | 23.8 W |
| Maximum Flow | 25 L/min (approximately 6.6 US GPM), at zero head |
| Maximum Head | 4.5 m (approximately 14.8 ft), at zero flow |
| Minimum Starting Power | 2 W, per manufacturer; actual starting depends on system conditions |
| Motor | Brushless DC |
| Duty | Continuous |
| Ingress Protection | IP52 |
| Coil Insulation | Class F |
| Ambient Temperature | -40°C to 40°C (-40°F to 104°F), per manufacturer |
| Liquid Temperature | -40°C to 110°C (-40°F to 230°F); liquid must remain unfrozen |
| Installation | Continuous flooded suction; not self-priming; do not run dry |
| Connections | Confirm supplied thread type; manufacturer drawing shows 1/2-inch NPT/BSPT alternatives |
Product Highlights
- Exact model: TD5/PV-A17-2504.
- 17 VDC rated operation with a brushless motor.
- PV-powered circulation capability.
- Select the operating point from the manufacturer’s pump curve.
Installation & Selection
Maintain flooded suction and never operate the pump dry. Confirm the supplied threads, fluid compatibility, electrical supply and mounting arrangement before installation. Subzero liquid-temperature ratings do not permit frozen fluid.
