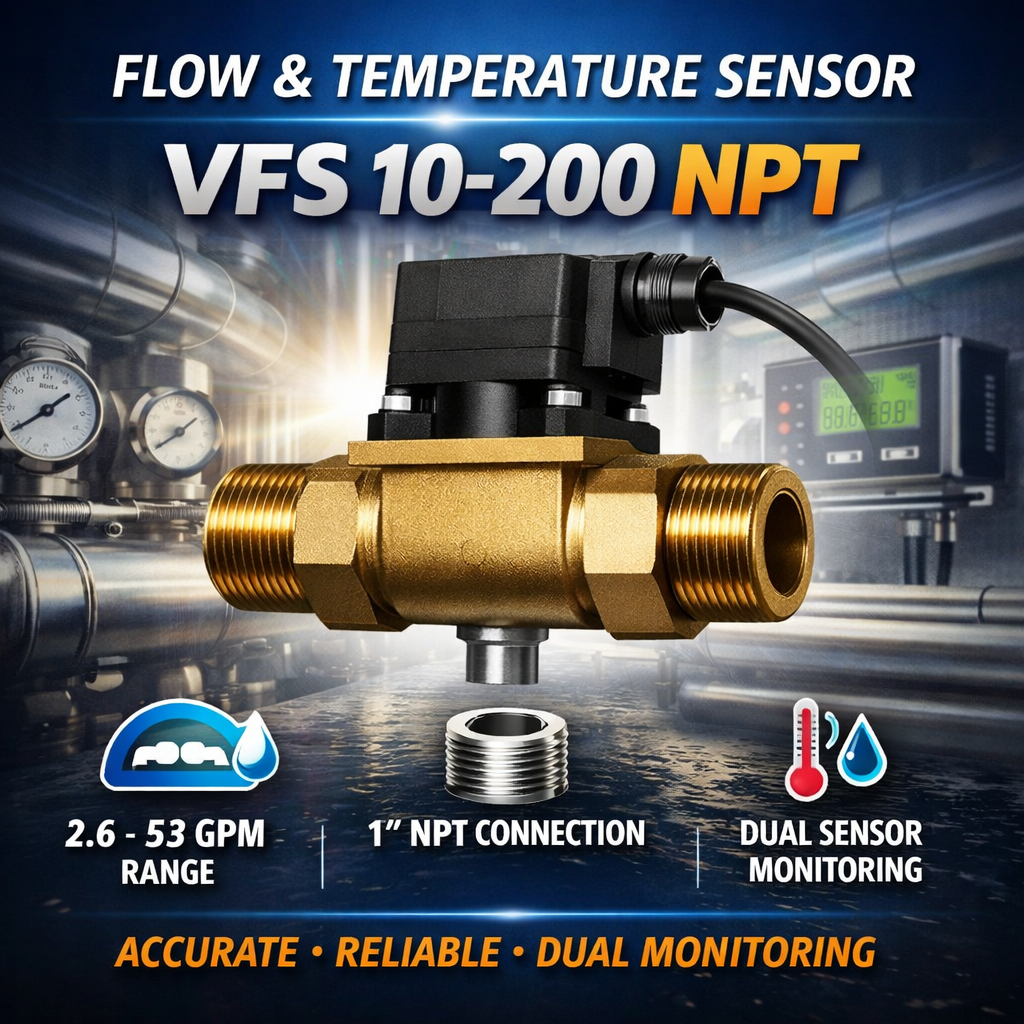

SunEarth VFS 10‑200 NPT Flow & Temperature Sensor
SunEarth VFS 10‑200 NPT Flow & Temperature Sensor is backordered and will ship as soon as it is back in stock.
The VFS 10-200 NPT Flow & Temperature Sensor is offered for liquid-flow and temperature monitoring in solar thermal and compatible hydronic systems. The Grundfos VFS 10-200 base sensor combines both measurements using vortex-shedding technology.
The base sensor measures 10–200 L/min (approximately 2.6–52.8 US GPM) and 32–212 °F (0–100 °C). It uses a composite housing and provides analog ratiometric voltage outputs to compatible control equipment.
Key Features
- Two Measurements in One Sensor: Monitors liquid flow and temperature using the Grundfos VFS platform.
- Wide Flow Range: Measures 10–200 L/min, approximately 2.6–52.8 US GPM.
- Vortex Measurement: Uses vortex shedding without moving measuring parts.
- Analog Signals: Separate ratiometric voltage signals report flow and temperature.
- Composite Construction: The manufacturer identifies composite housing and flow-pipe materials.
- Solar Monitoring Applications: Provides measurements for a compatible controller or monitoring system.
Technical Specifications
| Specification | VFS 10-200 NPT |
|---|---|
| Listing Model | VFS 10-200 NPT |
| Sensor Manufacturer | Grundfos Direct Sensors™ |
| Base Sensor | VFS 10-200 |
| Measurement Type | Combined liquid flow and temperature |
| Flow Measurement Range | 10–200 L/min (approximately 2.6–52.8 US GPM) |
| Temperature Measurement Range | 32–212 °F (0–100 °C) |
| Flow Measurement Principle | Vortex shedding; no moving parts |
| Supply Voltage | 5 VDC ±5%; PELV supply with required grounding |
| Signal Output | Analog, ratiometric voltage |
| Flow Signal | 0.5–3.5 V; zero flow at 0.35 V |
| Temperature Signal | 0.5–3.5 V |
| Base Sensor Housing | Composite materials (PPS / PA66) |
| Base Flow Pipe | PPA 40-GF |
| Sensor-to-Housing Seal | EPDM |
| NPT Connection / Adapter Package | Exact size, adapter contents and supplied assembly pending SunEarth confirmation |
| Controller Compatibility | SunEarth lists VFS 10-200 for SolFlux SESF-3221; verify input configuration and cable requirements |
| Product Dimensions — NPT Assembly | Not Located |
| Product Weight — NPT Assembly | Not Located |
Product Highlights
- Flow and Temperature: Combined measurements support system monitoring.
- No Moving Parts: Vortex sensing avoids a moving impeller.
- Compatible Controls: The supplied SunEarth SolFlux documentation lists VFS 10-200 as an accessory.
- Installation Planning: Confirm the NPT adapter configuration, electrical interface and required cable before ordering.
Technical Documents
- SunEarth 2026 Product Catalog (PDF)
- Grundfos VFS 10-200 Base Sensor Data Sheet (PDF)
- SunEarth SolFlux SESF-3221 Specification Sheet
- Installation Instructions
