SunEarth THERMORAY Blue TRB-26
SunEarth THERMORAY Blue TRB-26 is backordered and will ship as soon as it is back in stock.

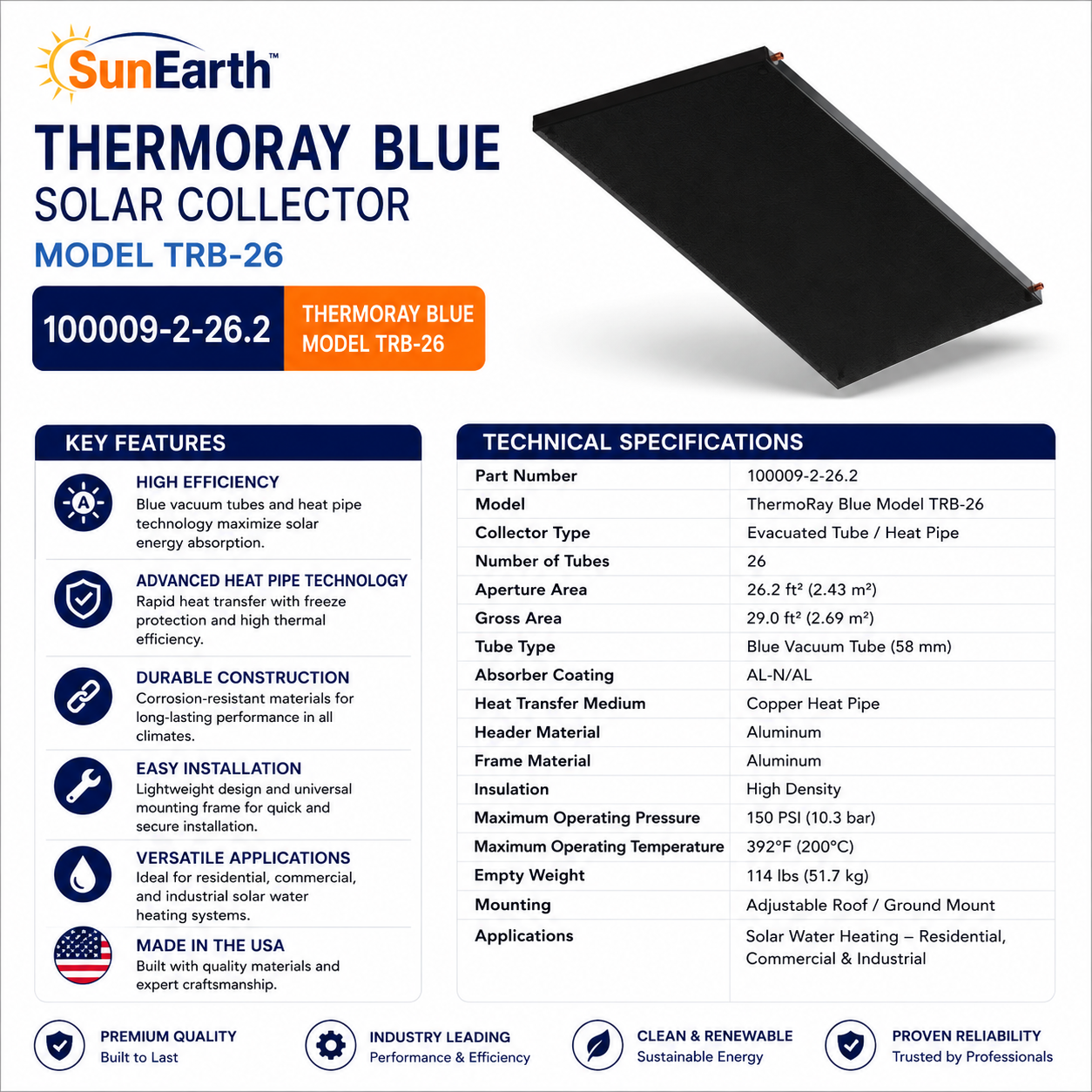

SunEarth ThermoRay Blue TRB-26 Solar Collector
Part Number: 100009-2-26.2
Product Description
The SunEarth ThermoRay Blue TRB-26 is a premium 26-tube evacuated tube solar thermal collector engineered to provide exceptional solar energy performance for residential, commercial, and industrial hot water systems. Featuring advanced copper heat pipe technology and high-efficiency 58 mm blue vacuum tubes, the TRB-26 captures maximum solar energy while minimizing heat loss for reliable year-round operation.
Constructed with a corrosion-resistant aluminum header and frame, high-density insulation, and a durable modular design, the ThermoRay Blue TRB-26 is built to withstand harsh outdoor environments while delivering outstanding thermal efficiency. Its larger 26-tube configuration offers increased solar collection capacity, making it an excellent choice for higher-demand domestic hot water and hydronic heating applications.
Whether installed on a roof or ground-mounted, the TRB-26 delivers the dependable performance and long-term reliability professionals expect from SunEarth solar thermal products.
Key Features
| Feature | Benefit |
|---|---|
| High-Efficiency Blue Vacuum Tubes | Maximizes solar energy absorption for exceptional thermal performance. |
| Advanced Copper Heat Pipe Technology | Rapid heat transfer with built-in freeze protection and high thermal efficiency. |
| Evacuated Tube Collector Design | Minimizes heat loss and maintains excellent performance in cold climates. |
| Corrosion-Resistant Aluminum Construction | Durable aluminum header and frame provide long service life with minimal maintenance. |
| High-Density Insulation | Reduces standby heat loss and improves overall collector efficiency. |
| 150 PSI Maximum Operating Pressure | Suitable for demanding residential and commercial solar thermal systems. |
| 392°F (200°C) Maximum Operating Temperature | Designed for high-temperature solar water heating applications. |
| Adjustable Roof or Ground Mounting | Flexible installation options for new or retrofit solar thermal systems. |
| Large 26-Tube Collector Capacity | Increased solar collection area for higher hot water production. |
| Made in the USA | Built with premium materials and expert craftsmanship for long-term reliability. |
Technical Specifications:
| Specification | Value |
|---|---|
| Manufacturer | SunEarth |
| Part Number | 100009-2-26.2 |
| Model | ThermoRay Blue TRB-26 |
| Collector Type | Evacuated Tube / Heat Pipe |
| Number of Tubes | 26 |
| Aperture Area | 26.2 ft² (2.43 m²) |
| Gross Area | 29.0 ft² (2.69 m²) |
| Tube Type | Blue Vacuum Tube (58 mm) |
| Absorber Coating | AL-N/AL |
| Heat Transfer Medium | Copper Heat Pipe |
| Header Material | Aluminum |
| Frame Material | Aluminum |
| Insulation | High Density |
| Maximum Operating Pressure | 150 PSI (10.3 bar) |
| Maximum Operating Temperature | 392°F (200°C) |
| Empty Weight | 114 lbs (51.7 kg) |
| Mounting Options | Adjustable Roof or Ground Mount |
| Applications | Residential, Commercial & Industrial Solar Water Heating |
Technical Documents:
SunEarth THERMORAY Blue TRB-26
