SunEarth THERMORAY Blue TRB-30
SunEarth THERMORAY Blue TRB-30 is backordered and will ship as soon as it is back in stock.

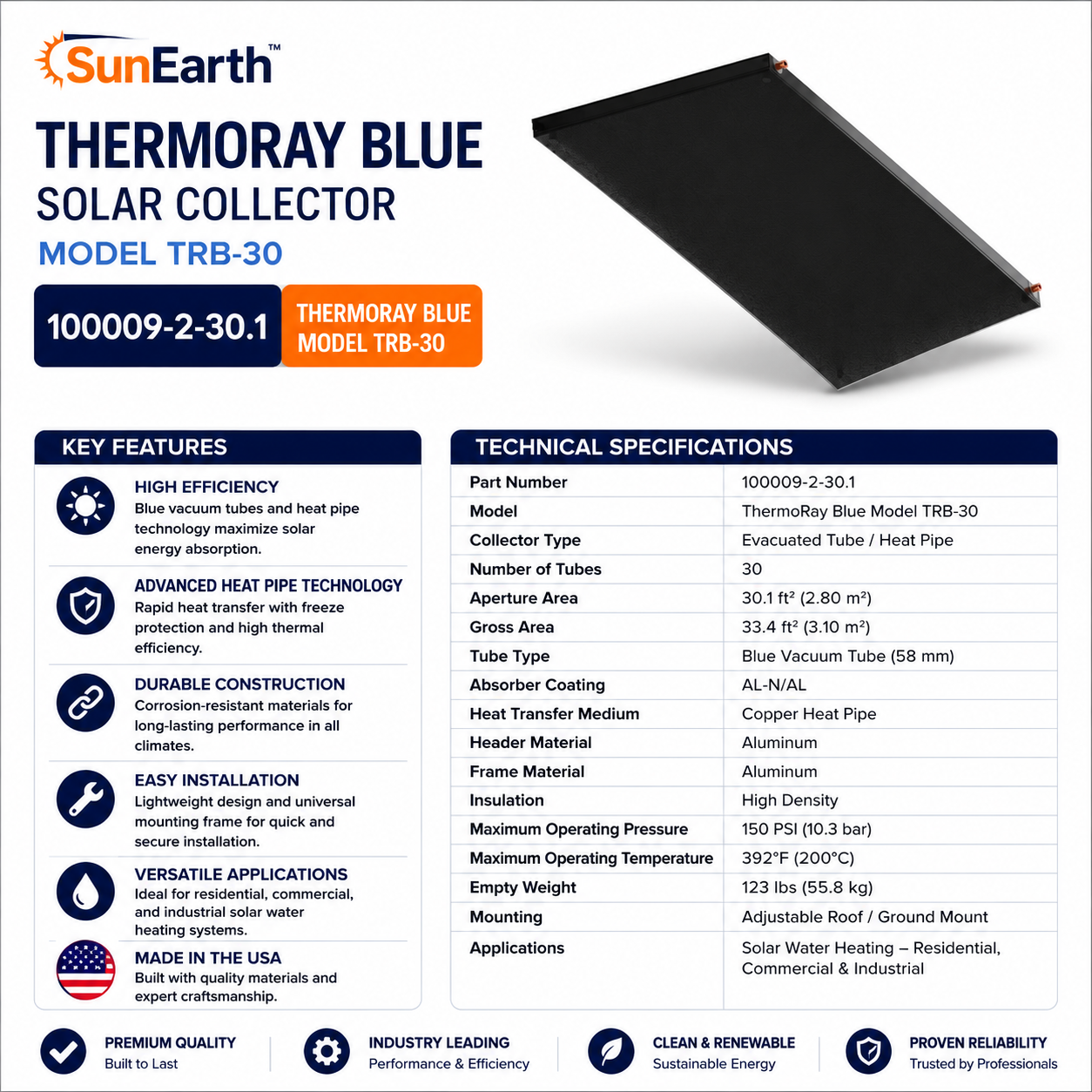

SunEarth ThermoRay Blue TRB-30 Solar Collector
Part Number: 100009-2-30.1
Product Description
The SunEarth ThermoRay Blue TRB-30 is a high-capacity 30-tube evacuated tube solar thermal collector designed to deliver exceptional energy efficiency and dependable hot water production for residential, commercial, and industrial applications. Utilizing advanced copper heat pipe technology and premium 58 mm blue vacuum tubes, the TRB-30 efficiently captures solar energy while minimizing heat loss, providing outstanding performance throughout the year.
Built with corrosion-resistant aluminum components, high-density insulation, and a durable modular frame, the ThermoRay Blue TRB-30 is engineered for long-term reliability in demanding outdoor environments. Its larger 30-tube design provides increased collector capacity, making it ideal for installations requiring higher thermal output.
Whether installed as a standalone collector or as part of a larger solar thermal array, the SunEarth ThermoRay Blue TRB-30 offers professional-grade performance backed by SunEarth's reputation for quality and durability.
Key Features
| Feature | Benefit |
|---|---|
| High-Efficiency Blue Vacuum Tubes | Maximizes solar energy absorption for superior thermal performance. |
| Advanced Copper Heat Pipe Technology | Rapid heat transfer with excellent freeze protection and high operating efficiency. |
| Evacuated Tube Collector Design | Significantly reduces heat loss for dependable year-round performance. |
| Corrosion-Resistant Aluminum Construction | Durable aluminum header and frame provide long service life in outdoor environments. |
| High-Density Insulation | Improves overall collector efficiency by minimizing standby heat loss. |
| 150 PSI Maximum Operating Pressure | Designed for demanding residential and commercial solar water heating systems. |
| 392°F (200°C) Maximum Operating Temperature | Suitable for high-temperature solar thermal applications. |
| Adjustable Roof or Ground Mounting | Flexible installation options for a wide variety of solar thermal projects. |
| Large 30-Tube Collector Capacity | Provides increased hot water production for higher-demand applications. |
| Made in the USA | Manufactured with premium materials for dependable long-term performance. |
Technical Specifications:
| Specification | Value |
|---|---|
| Manufacturer | SunEarth |
| Part Number | 100009-2-30.1 |
| Model | ThermoRay Blue TRB-30 |
| Collector Type | Evacuated Tube / Heat Pipe |
| Number of Tubes | 30 |
| Aperture Area | 30.1 ft² (2.80 m²) |
| Gross Area | 33.4 ft² (3.10 m²) |
| Tube Type | Blue Vacuum Tube (58 mm) |
| Absorber Coating | AL-N/AL |
| Heat Transfer Medium | Copper Heat Pipe |
| Header Material | Aluminum |
| Frame Material | Aluminum |
| Insulation | High Density |
| Maximum Operating Pressure | 150 PSI (10.3 bar) |
| Maximum Operating Temperature | 392°F (200°C) |
| Empty Weight | 123 lbs (55.8 kg) |
| Mounting Options | Adjustable Roof or Ground Mount |
| Applications | Residential, Commercial & Industrial Solar Water Heating |
Technical Documents:
SunEarth THERMORAY Blue TRB-30
