SunEarth UPS26-150F OEM Cast Iron 115V 3-Speed Circulator Pump
SunEarth UPS26-150F OEM Cast Iron 115V 3-Speed Circulator Pump is backordered and will ship as soon as it is back in stock.

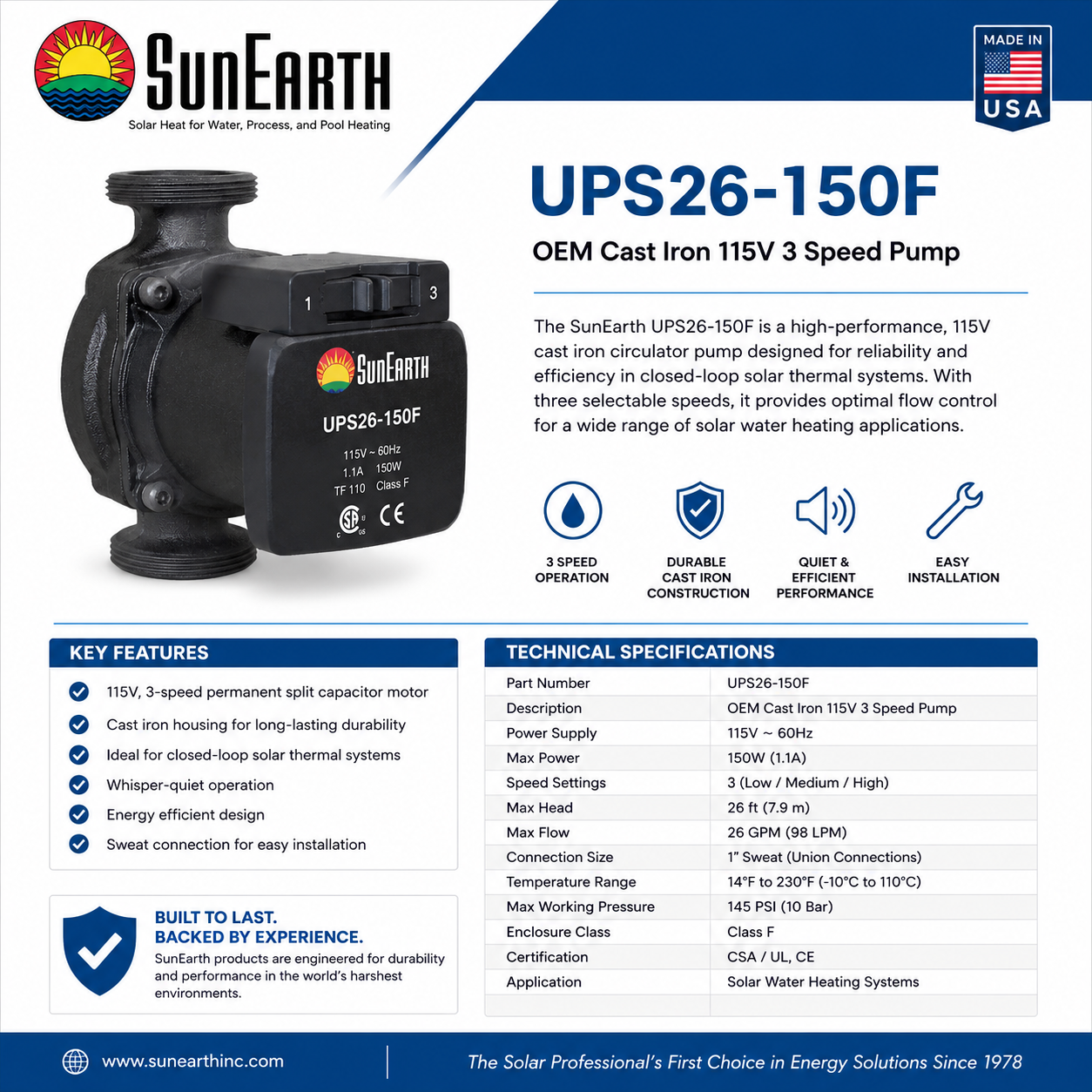

SunEarth UPS26-150F Cast Iron Circulator Pump
115 VAC | Three Speeds | Cast Iron Housing
The SunEarth-listed UPS26-150F is a three-speed cast iron circulator for compatible closed-loop solar thermal and hydronic heating systems. The selectable speeds allow the installer to match pump performance to the system’s required flow and head.
The reference specifications below describe the Grundfos UPS 26-150 F, product 95906630. Confirm that the SunEarth-supplied pump matches this configuration before finalizing system design or ordering replacement components.
Key Features & Benefits
| Feature | Details |
|---|---|
| Three selectable speeds | Provides a choice of pump performance curves. |
| Cast iron housing | For compatible closed-loop circulation systems. |
| 115 VAC operation | Single-phase supply; verify the installed circuit. |
| Flanged connections | GF 15/26 two-bolt flange pattern on the Grundfos reference model. |
| Wet-rotor design | Pumped liquid lubricates the bearings. |
Technical Specifications
| Specification | Details |
|---|---|
| Supplier / SKU | SunEarth / UPS26-150F |
| Reference Manufacturer / Product | Grundfos UPS 26-150 F / 95906630 |
| Voltage / Phase / Frequency | 115 VAC / single phase / 60 Hz |
| Speed Settings | Three |
| Pump Housing | Cast iron |
| Pump Type | Wet-rotor circulator |
| Maximum Flow | 53 US GPM, per Grundfos reference data |
| Maximum Head | 46 ft, per Grundfos reference data |
| Power Input by Speed | I: 265 W; II: 335 W; III: 370 W |
| Current by Speed | I: 2.5 A; II: 3.1 A; III: 3.5 A |
| Maximum System Pressure | 145 PSI; not pump-generated head |
| Liquid Temperature Range | 36°F to 230°F (2°C to 110°C) |
| Connections | GF 15/26 flange; two 1/2-inch bolt holes |
| Product Dimensions | 6.50-inch port-to-port length. Reference drawing dimensions B: 7.13 in and C: 5.88 in. |
| Product Weight | Grundfos reference shipping weight: 17.4 lb |
Product Highlights
- SunEarth SKU: UPS26-150F.
- 115 VAC operation with three selectable speeds.
- Cast iron housing for compatible closed-loop systems.
- Confirm the supplied configuration before selection.
Technical Documents
- SunEarth Product Catalog
- UPS26-150F Specifications, Performance Curves & Dimensions
- UPS26-150F Installation Instructions
- UPS26-150F Warranty
Selection & Installation
Select the operating point from the appropriate speed curve. Maximum flow and maximum head are separate endpoints. Confirm electrical requirements, fluid suitability, mounting instructions and system compatibility before installation.
