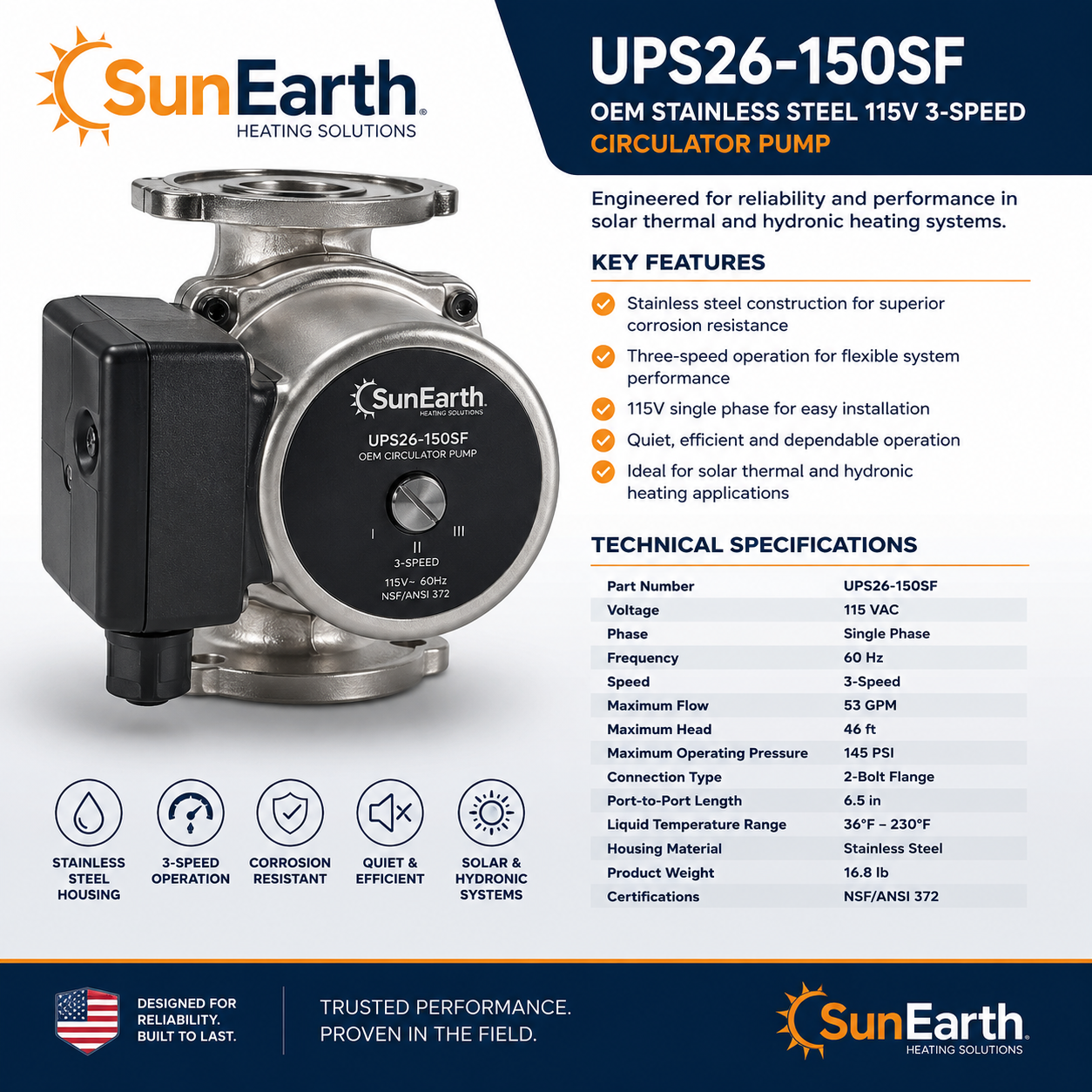

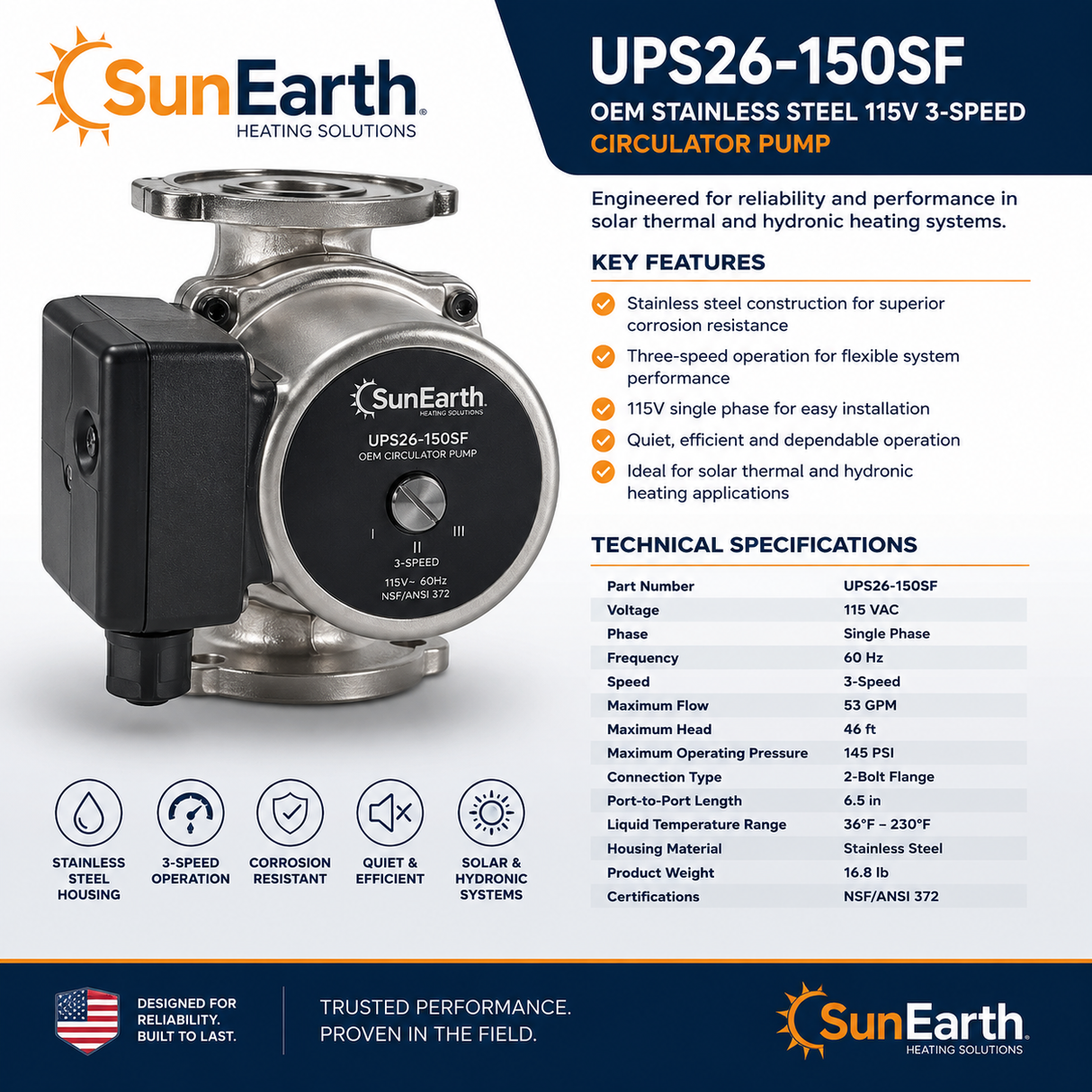

SunEarth UPS26-150SF OEM Stainless Steel 115V 3-Speed Circulator Pump
SunEarth UPS26-150SF OEM Stainless Steel 115V 3-Speed Circulator Pump is backordered and will ship as soon as it is back in stock.
SunEarth UPS26-150SF Stainless Steel Circulator Pump
115 VAC | Three Speeds | Stainless Steel Housing
The SunEarth-listed UPS26-150SF is a stainless steel three-speed circulator pump for compatible solar thermal and hydronic applications. Select the pump speed using the system’s required flow and head.
The reference specifications below describe the Grundfos UPS 26-150 SF, product 95906632. Confirm that the SunEarth-supplied pump matches this configuration before finalizing system design or ordering replacement components.
Key Features & Benefits
| Feature | Details |
|---|---|
| Three selectable speeds | Provides a choice of pump performance curves. |
| Stainless steel housing | Designed for compatible circulating fluids. |
| 115 VAC operation | Single-phase supply; verify the installed circuit. |
| Flanged connections | GF 15/26 two-bolt flange pattern on the Grundfos reference model. |
| Wet-rotor design | Pumped liquid lubricates the bearings. |
Technical Specifications
| Specification | Details |
|---|---|
| Supplier / SKU | SunEarth / UPS26-150SF |
| Reference Manufacturer / Product | Grundfos UPS 26-150 SF / 95906632 |
| Voltage / Phase / Frequency | 115 VAC / single phase / 60 Hz |
| Speed Settings | Three |
| Housing Material | Stainless steel |
| Maximum Flow | 53 US GPM, per Grundfos reference data |
| Maximum Head | 46 ft, per Grundfos reference data |
| Power Input by Speed | I: 265 W; II: 335 W; III: 370 W |
| Current by Speed | I: 2.5 A; II: 3.1 A; III: 3.5 A |
| Maximum System Pressure | 145 PSI; not pump-generated head |
| Liquid Temperature Range | 36°F to 230°F (2°C to 110°C) |
| Connections | GF 15/26 flange; two 1/2-inch bolt holes |
| Product Dimensions | 6.50-inch port-to-port length; reference drawing dimensions B: 7.13 in and C: 5.88 in. Confirm installation clearances. |
| Product Weight | Grundfos reference shipping weight: 17.4 lb |
Product Highlights
- SunEarth SKU: UPS26-150SF.
- 115 VAC operation with three selectable speeds.
- Stainless steel pump housing.
- Confirm the supplied pump configuration before selection.
Technical Documents
- SunEarth Product Catalog
- UPS26-150SF Specifications, Performance Curves & Dimensions
- UPS26-150SF Installation Instructions
- UPS26-150SF Warranty
Selection & Installation
Select the operating point from the appropriate speed curve. Maximum flow and maximum head are separate endpoints. Confirm electrical requirements, fluid suitability, mounting instructions and system compatibility before installation.
