SunEarth UPS26-99FC 115V OEM 1/6 HP 3-Speed Cast Iron Circulator Pump with Integral Check Valve
SunEarth UPS26-99FC 115V OEM 1/6 HP 3-Speed Cast Iron Circulator Pump with Integral Check Valve is backordered and will ship as soon as it is back in stock.

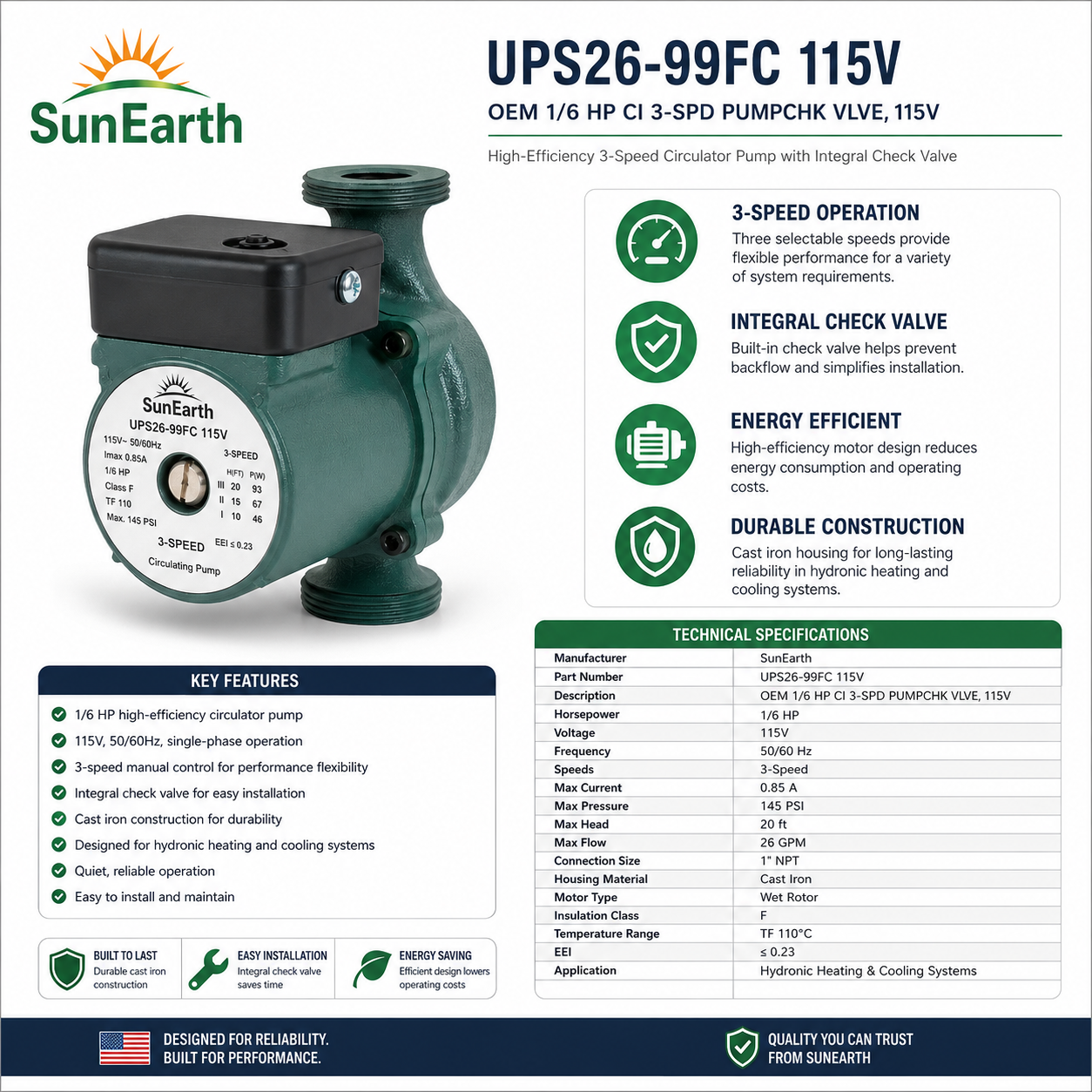

SunEarth UPS26-99FC 115V Three-Speed Circulator Pump
115 VAC | Cast Iron | Three Speeds | Integral Check Valve
The SunEarth-listed UPS26-99FC 115V is a cast iron circulator for closed-loop heating applications. Three selectable speeds allow the installer to match circulation to the system’s requirements.
Reference data below describe the Grundfos UPS 26-99 FC, product 52722512. Confirm that the SunEarth-supplied pump matches this configuration before ordering or finalizing system design.
Key Features & Benefits
| Feature | Details |
|---|---|
| Three selectable speeds | Provides a choice of pump performance curves. |
| Integral check valve | Helps limit reverse circulation; manufacturer notes the valve is removable. |
| Cast iron housing | For appropriately designed closed-loop applications. |
| Wet-rotor construction | Pumped liquid lubricates the bearings. |
| Flanged connections | GF 15/26 two-bolt flange pattern; confirm matching system flanges. |
Technical Specifications
| Specification | Details |
|---|---|
| Supplier / SKU | SunEarth / UPS26-99FC 115V |
| Reference Manufacturer / Product | Grundfos UPS 26-99 FC / 52722512 |
| Voltage / Phase / Frequency | 115 VAC / single phase / 60 Hz |
| Speed Settings | Three |
| Pump Housing | Cast iron |
| Pump Type | Wet-rotor circulator |
| Check Valve | Integral, removable |
| Maximum Flow | 33 US GPM, per Grundfos reference data |
| Maximum Head | 29 ft, per Grundfos reference data |
| Maximum Power Input | 197 W; not motor shaft output |
| Current by Speed | I: 1.3 A; II: 1.5 A; III: 1.8 A |
| Liquid Temperature Range | 36°F to 230°F (2°C to 110°C) |
| Maximum System Pressure | 145 PSI (10 bar); not pump-generated head |
| Connections | GF 15/26 flange; two 1/2-inch-diameter bolt holes |
| Product Dimensions | 6.50-inch port-to-port length; manufacturer drawing dimensions B: 6.00 in, C: 4.88 in; verify installation clearances |
| Product Weight | Net weight pending confirmation; published reference shipping weight: 10.3 lb (4.7 kg) |
| Fluid Compatibility | Confirm water/glycol type, concentration and temperature with manufacturer |
Product Highlights
- SunEarth SKU: UPS26-99FC 115V.
- Three selectable speeds and an integral check valve.
- Cast iron construction for closed-loop circulation.
Selection & Installation
Select the operating point using the correct speed curve and installed check-valve configuration. Maximum flow and maximum head are separate endpoints. Confirm electrical requirements, fluid suitability and mounting instructions before installation.
