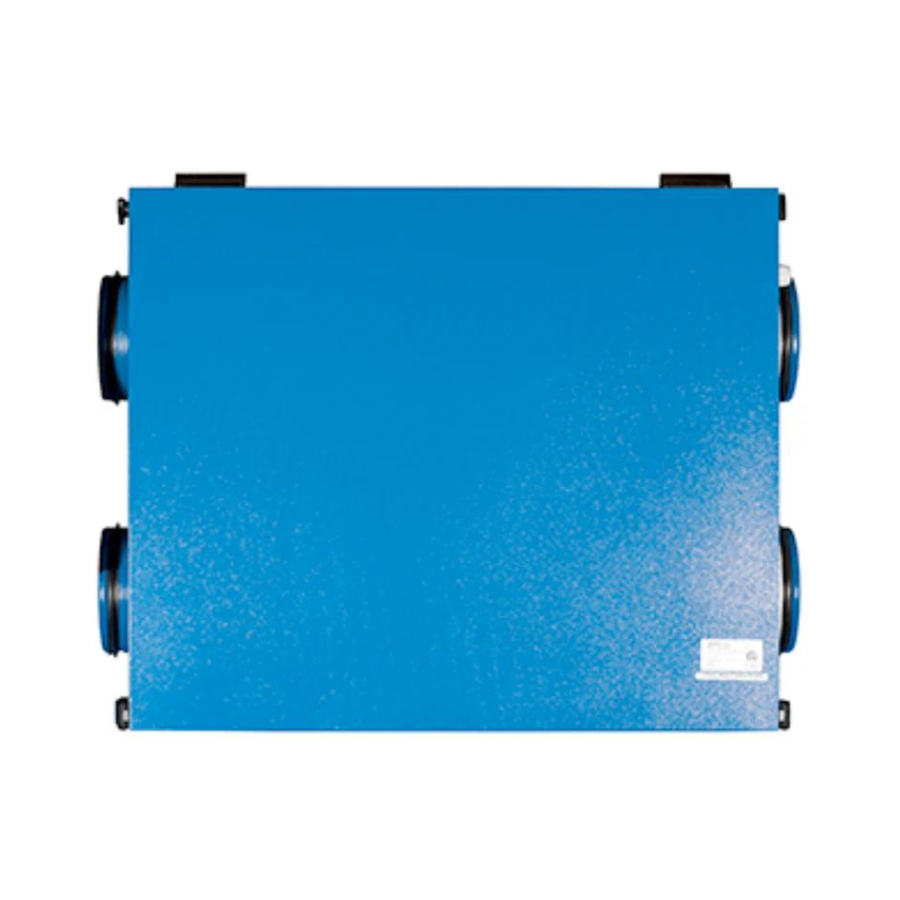

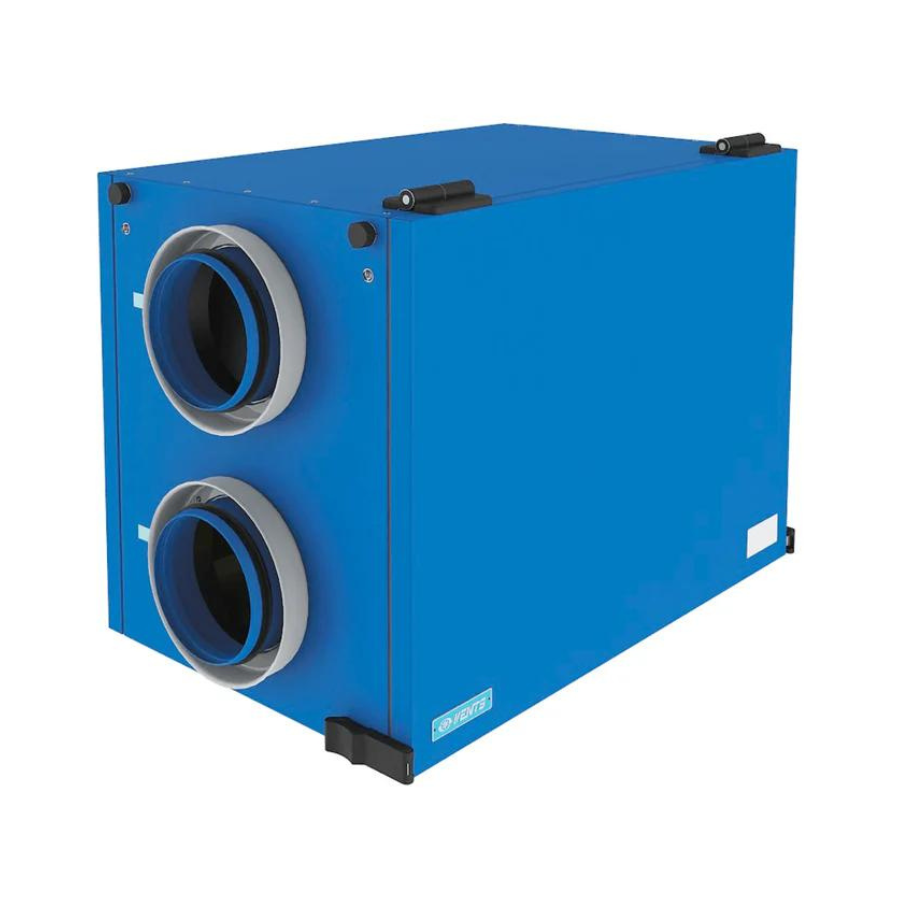

Vents BRIG ERV 300
Most Items Ship Same Day
(Warranty, Return and Refunds)
The Brig 300 Whole Home ERV features cutting-edge design with supply and exhaust centrifugal fans, German-made motors, and backward-inclined blades. Built-in thermal protection and automatic restart enhance safety. Electric motors and impellers undergo precise dynamic balancing.

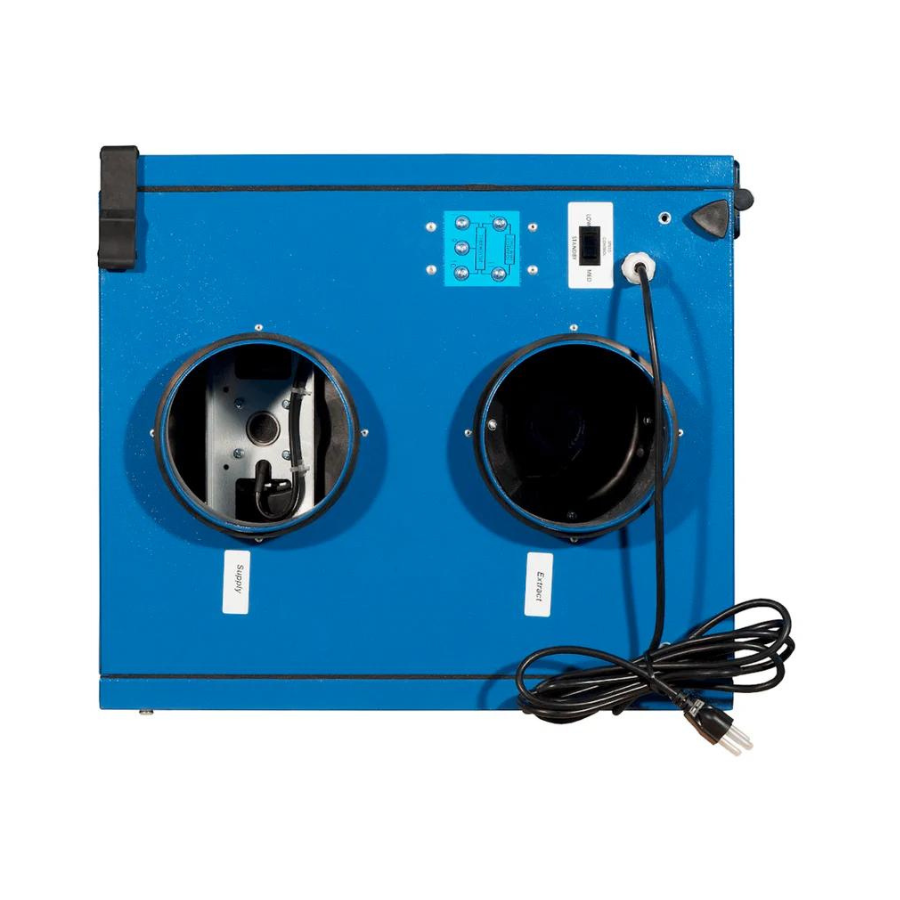

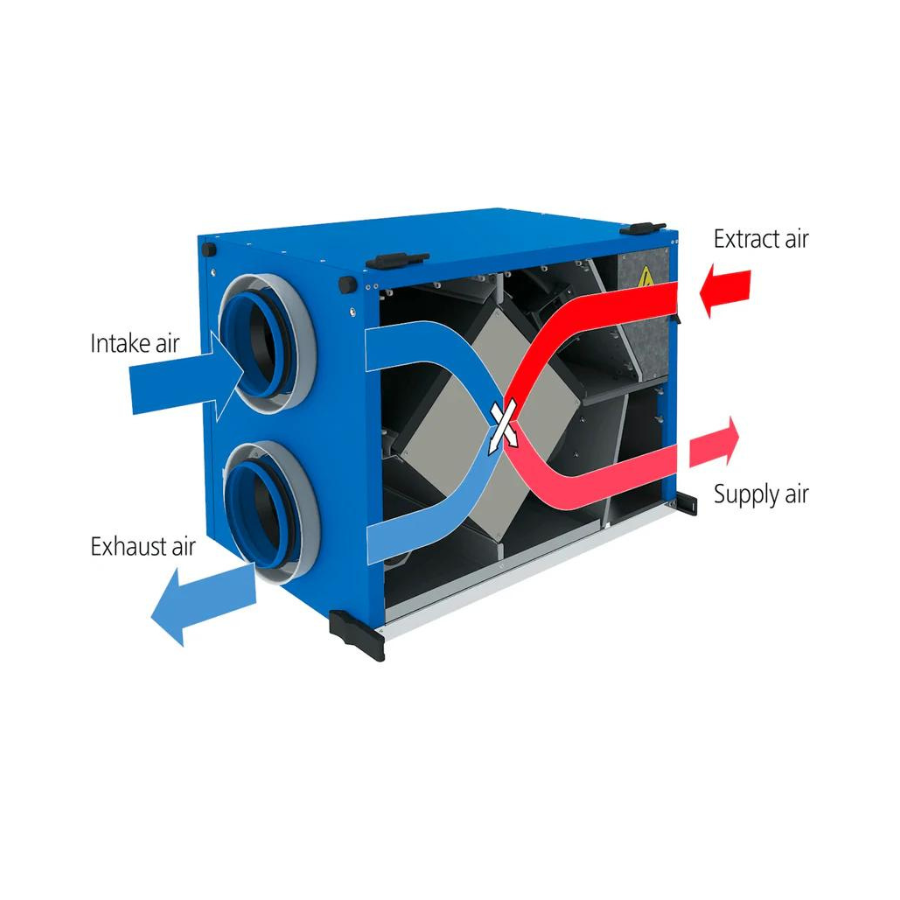

The specially crafted polymer enthalpic core ensures efficient energy recovery for sustainability. The ventilator includes a 3-step switch on its side panel for STANDBY, LOW, or MEDIUM modes, providing customizable operation.
To safeguard the energy recovery core, an electronic freezing protection system deactivates the supply fan triggered by a temperature sensor. This initiates a defrosting process using warm extract air, ensuring optimal conditions for the ventilator's seamless resumption of operation.
Features
- Polystyrene cross-flow recovery core
- MERV 6 supply + exhaust filters
- Up to 257 CFM
- Recovery efficiency up to 77%
- 8" Duct diameter
- 10 year warranty on the core
Details
Brig Series 200/300 ERV |
||
| Model | 200 ERV | 300 ERV |
| Maximum continuous air flow capacity (at 0.1 in. w.g.) | 213 CFM | 257 CFM |
| Sensible recovery efficiency at 32°F (0`C) | up to 79% | up to 77% |
| MERV6 supply/exhaust filters | Yes | Yes |
| Sound level | 2'1 - 2.2 Sones | |
| Power consumption | 212 W | 447 W |
| Defrost System | Built temp sensor | |
| Duct diameters | 6" 200 - 8" 300 | |
