Vents FRIGATE HRV 120
Introducing the Frigate 120 HRV series: Elevate your indoor air quality effortlessly in homes up to 2000 sq. ft. Experience an airflow of up to 142 CFM with our sleek 9 5/8-inch profile. Explore our three models tailored to your unique requirements.
Much like the120 ERVs,the 120 HRVS are suited more for Moderate or Hot and Dry climates. Available in a standard configuration, the upgraded Frigate 120HRV R and the Frigate 120 (constant flow option) that features auto balancing. 10 Year warranty on Core
Features

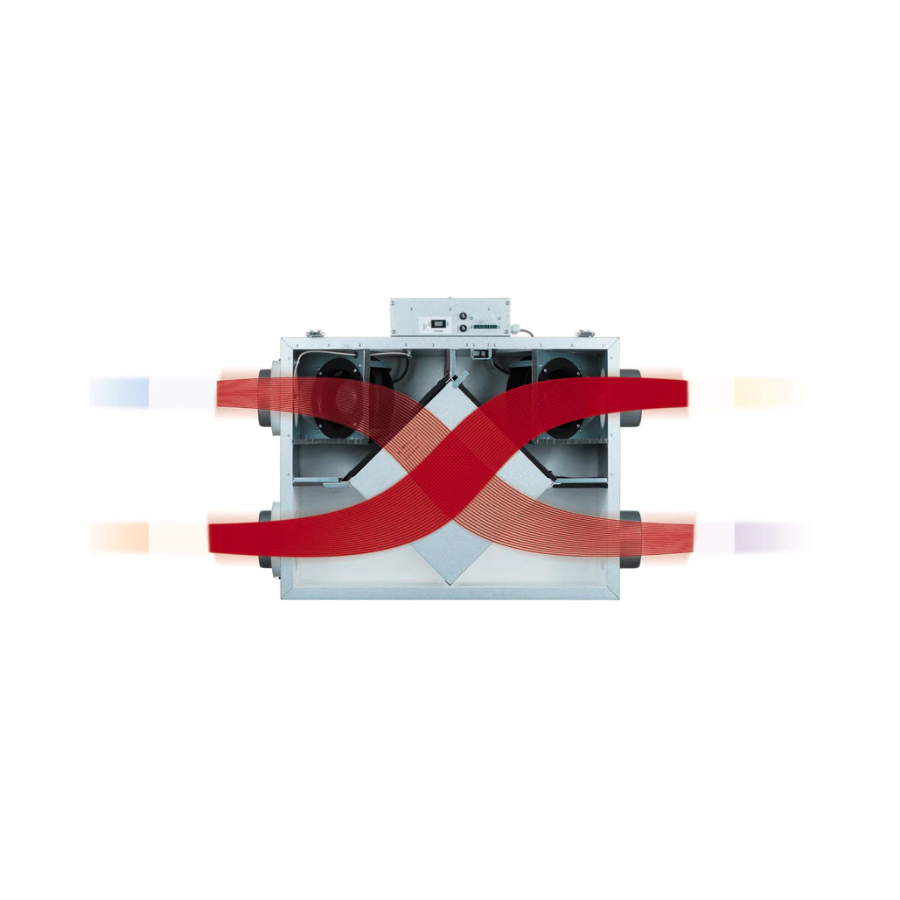

- Polystyrene cross-flow core
- MERV 6 supply exhaust filters
- Up to 142 CFM
- Recovery efficiency up to 60%
- Sound level - 1.9 sones
- 5" Duct diameter
- 9 5/8”x 23 7/8” x 26 1/2”
- 10 Year warranty on Core
Frigate 120 Series HRV |
|||
120 | 120R | 120CF | |
Maximum continuous air flow capacity (at 0.1 in. w.g.) | 142 CFM | 142 CFM | 142 CFM |
Sensible recovery efficiency at 32°F (0`C) | 60% | 60% | 60% |
MERV 6 supply/exhaust filters | Yes | Yes | Yes |
Sound level | 1.9 Sones | ||
Power consumption | 158 W | 158 W | 158 W |
Recovery core | Polystyrene cross-flow | ||
Duct diameters | 5 inches | ||
Dimensions (H x W x D) | 9 5/8”x 23 7/8” x 26 1/2” |
Disclaimer: Must be installed by a licensed contractor or warranty is void.
