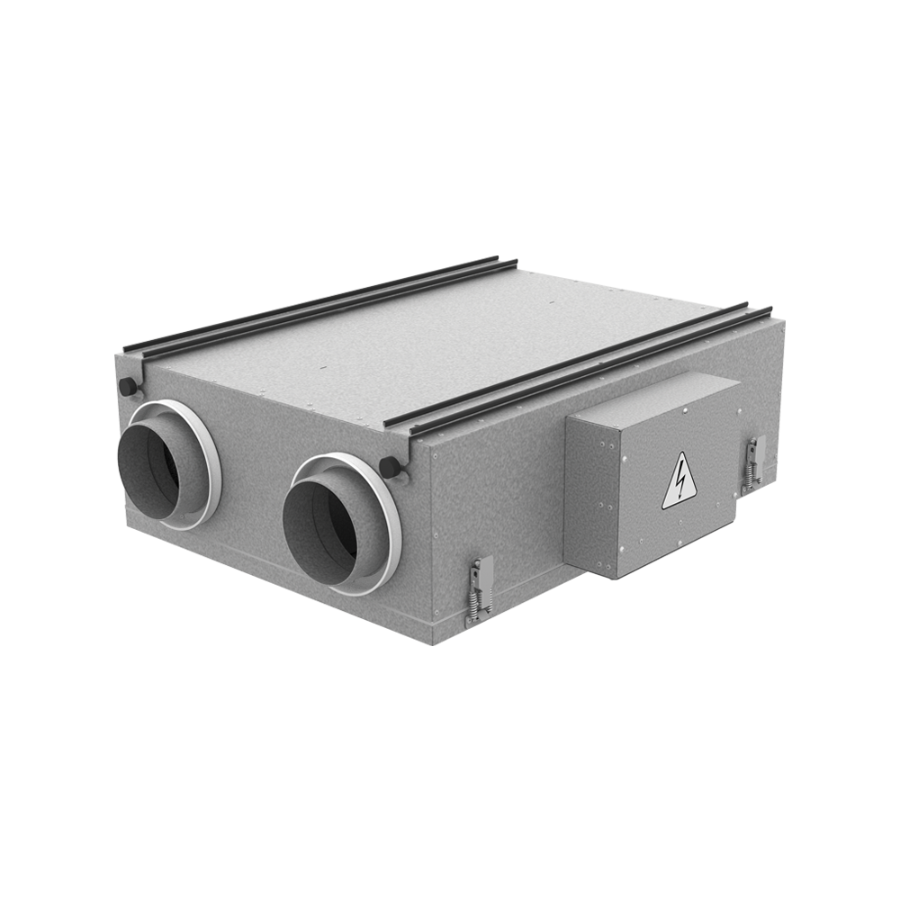

Vents Frigate ERV 80R
Energy Recovery Ventilators are the complete whole house ventilation system designed to bring a continuous supply of fresh air into the house while exhausting an equal amount of stale air
- Motor type: AC
- Enthalpy heat exchanger
Unit of measurement | Frigate ERV 80R | |
Connected air duct size | in | 5” |
Minimum supply voltage | V | 120 |
Maximum supply voltage | V | 120 |
Power supply frequency | Hz | 60 |
Rated power | W | 74 |
Maximum unit current | A | 0.9 |
Maximum performance @0.1" | CFM | |
Minimum performance @0.4" | CFM | 61 |
Extract filter | - | MERV6 |
Ingress protection rating | - | IP22 |
Ingress protection rating of the drive | - | IP44 |
Disclaimer: Must be installed by a licensed contractor or warranty is void.
