KeplerX 14.3 SEER2 Heat Pump Top Discharge R410A Dry Unit Series
The KeplerX 14.3 SEER2 Top Discharge Heat Pump Series is designed for high-efficiency performance, reliability, and simplified installation. These R410A “dry” outdoor heat pump units range from 1.5 to 5 tons, making them ideal for residential and light commercial applications. Each model is AHRI and ETL certified and engineered for long-term durability and quiet operation.
🌟 Key Features
-
High Efficiency: Up to 14.3 SEER2 cooling efficiency and 7.5 HSPF2 heating efficiency for optimal energy savings.
-
Scroll Compressor by LG: Reliable, quiet operation with thermal protection and internal overload safeguard.
-
Durable Construction: Hydrophilic aluminum fins and inner-grooved copper tubing maximize heat transfer and corrosion resistance.
-
Smart Fan System: GREEN-INTELLIGENCE or Panasonic fan motors ensure consistent airflow with quiet performance (as low as 60 dB).
-
Wide Operating Range: Cooling from 64°F to 118°F and heating from 17°F to 80°F ambient.
-
Environmentally Friendly: Uses R410A refrigerant with efficient charge management and standard piping connections.
-
Compact & Service-Friendly: Top-discharge design allows for space-saving installation and easy access for maintenance.

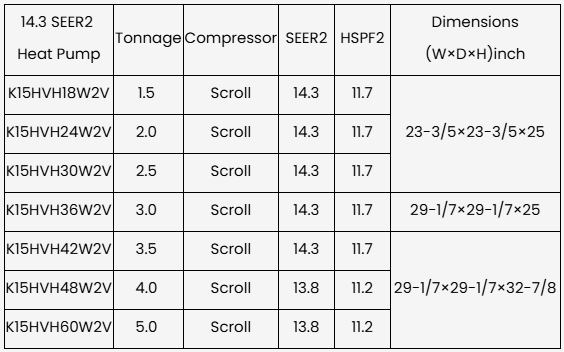

⚙️ Model Lineup & Performance
| Model | Capacity | Compressor | SEER2 | HSPF2 | Power (V/Ph/Hz) | Max Current (A) | Cooling (Btu/h) | Heating (Btu/h) | Sound (dB[A]) |
|---|---|---|---|---|---|---|---|---|---|
| K15HVH18W2V | 1.5 Ton | LG APG016KAC Scroll | 14.3 | 7.5 | 208/230V 1Ph 60Hz | 11.5 | 17,500 | 17,500 | 60 |
| K15HVH24W2V | 2.0 Ton | LG APG020KAC Scroll | 14.3 | 7.5 | 208/230V 1Ph 60Hz | 15.0 | 22,000 | 22,000 | 60 |
| K15HVH30W2V | 2.5 Ton | LG APG024KAC Scroll | 14.3 | 7.5 | 208/230V 1Ph 60Hz | 17.0 | 28,000 | 26,000 | 63 |
| K15HVH36W2V | 3.0 Ton | LG APG029KAC Scroll | 14.3 | 7.5 | 208/230V 1Ph 60Hz | 23.0 | 33,000 | 33,000 | 63 |
| K15HVH42W2V | 3.5 Ton | LG ABG036KAC Scroll | 14.3 | 7.5 | 208/230V 1Ph 60Hz | 28.0 | 40,000 | 40,000 | 65 |
| K15HVH48W2V | 4.0 Ton | LG ABG039KAC Scroll | 14.3 | 7.5 | 208/230V 1Ph 60Hz | 29.5 | 45,000 | 44,000 | 65 |
| K15HVH60W2V | 5.0 Ton | LG ABG051KAC Scroll | 14.3 | 7.5 | 208/230V 1Ph 60Hz | 37.0 | 56,000 | 53,000 | 63 |
🔧 Technical Highlights
-
Refrigerant: R410A
-
Refrigerant Piping: Liquid 3/8", Gas 3/4" (≤3.5 ton) or 7/8" (≥4 ton)
-
Max. Line Length: 148 ft | Max. Elevation Difference: 66 ft
-
Design Pressure: 2.7–2.8 MPa | Max Pressure: 4.5 MPa
-
Airflow Range: 2,000 – 4,000 CFM
-
Noise Level: 60 – 65 dB(A)
-
Net Weight: 142 – 232 lbs (depending on model)
🏅 Certifications
-
AHRI Certified
-
ETL Listed
-
Complies with DOE 2023 Efficiency Standards
