KeplerX 15.0 SEER2 R32 Heat Pump Inverter Top Discharge Unit Series

KeplerX 15.0 SEER2 R32 Heat Pump Inverter Top Discharge Unit Series

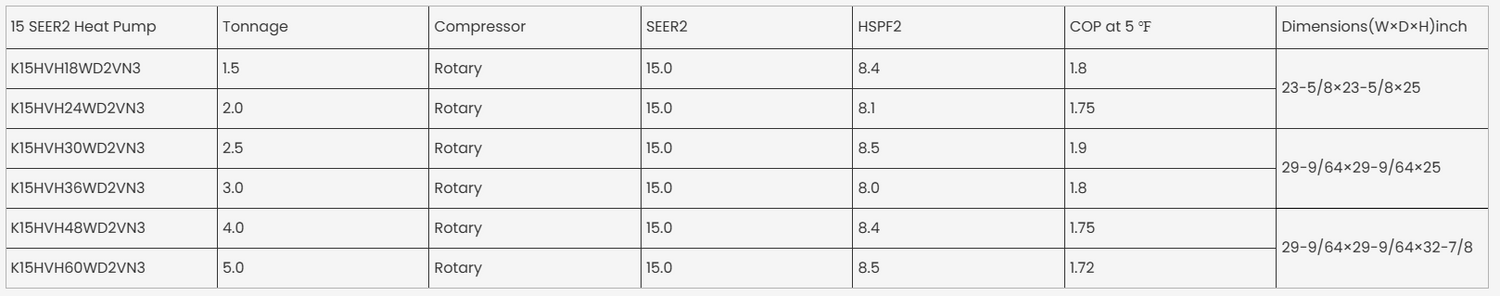

The KeplerX R32 Inverter Top Discharge Heat Pump Series delivers high efficiency, quiet operation, and versatile installation options for both residential and light commercial environments. Available from 1.5 to 5 tons, each model is AHRI and ETL certified, offering reliable comfort and energy savings year-round.

⚡ Power Supply

• Voltage / Phase / Frequency: 208–230V / 1Ph / 60Hz

❄️ Cooling & Heating Performance

• Cooling Capacity: 18,000 – 52,500 Btu/h

• Heating Capacity: 19,000 – 54,000 Btu/h

• SEER2: 15.0

• EER2: 8.0 – 11.3 Btu/W

• HSPF2: 8.0 – 8.5

• Low-Temp Heating (at 5°F / -15°C): 12,000 – 30,000 Btu/h

• COP: 1.72 – 1.9

• Operation Range:

  • Cooling: 5°F – 131°F (-15°C – 55°C)

  • Heating: -4°F – 75°F (-20°C – 24°C)

🔌 Electrical Ratings

• Minimum Circuit Ampacity (MCA): 23 – 41 A

• Max Overcurrent Protection (MOP): 37 – 66 A

• Voltage Range: 173 – 269 V

🔧 Compressor

• Brand: GMCC

• Type: DC Inverter Rotary

• Models: KTN210D60UMT3 / KTM240D57UMT / KTM310D85UMT

• Rated Power Input: 1,870 – 2,680 W

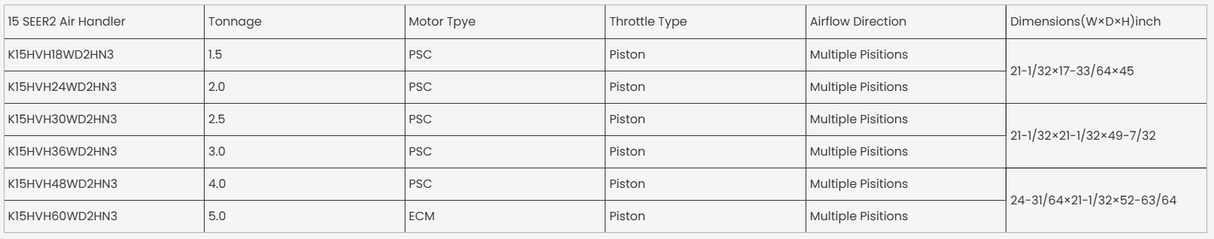

🌬️ Indoor Unit

• Fan Motor Type: PSC Motor (1.5–4T) / ECM Motor (5T)

• Input Power: 220 – 560 W

• Coil Rows: 3–5

• Air Flow (H/L): 576–1,500 / 488–1,050 CFM

• Static Pressure: 0.8 in.w.g.

• Noise Level (H/L): 38.5–53 / 34–46 dB(A)

• Dimensions (W×D×H):

  • 1.5–2T: 534×445×1143 mm (21×17.3×45 in)

  • 2.5–3T: 534×534×1245 mm (21×21×49.2 in)

  • 4–5T: 622×534×1346 mm (24.5×21×53 in)

• Net / Gross Weight: 119–170 lbs / 130–186 lbs

💨 Outdoor Unit

• Fan Motor: BLDC Motor

• Input Power: 200 W

• Air Flow: High-performance top discharge design

• Noise Level: 58–60 dB(A)

• Dimensions (W×D×H):

  • 1.5–2T: 600×600×635 mm (23.6×23.6×25 in)

  • 2.5–3T: 740×740×635 mm (29.1×29.1×25 in)

  • 4–5T: 740×740×835 mm (29.1×29.1×32.9 in)

• Net / Gross Weight: 111–175 lbs / 117–183 lbs

🧊 Refrigerant System

• Refrigerant Type: R32

• Charge Volume: 1,650 – 3,400 g (58 – 120 oz)

• Additional Charge: 30 g/m (0.32 oz/ft)

• Max Suction Pressure: 1.2 MPa

• Max Discharge Pressure: 4.5 MPa

🔩 Refrigerant Piping

• Liquid Line: Φ3/8"

• Gas Line: Φ3/4"

• Max Line Length: 98 – 246 ft (30 – 75 m)

• Max Elevation Difference: 66 – 98 ft (20 – 30 m)

🔈 Sound Pressure

• Indoor Unit: 34–53 dB(A)

• Outdoor Unit: 58–60 dB(A)

🚢 Shipping (per STD 40HQ)

• Indoor Units: 76 – 150 sets

• Outdoor Units: 135 – 216 sets
