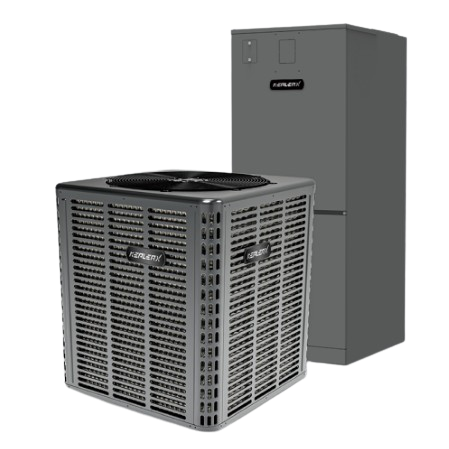

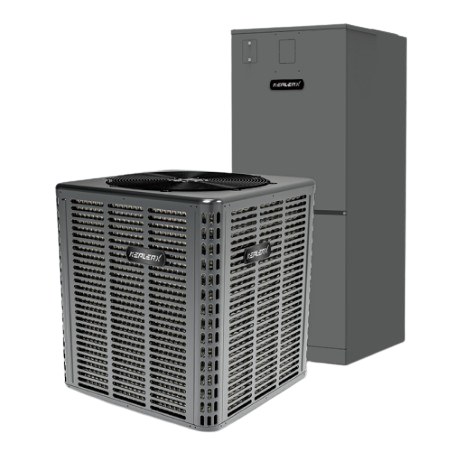

KeplerX 460V 3-Phase R32 Heat Pump Package (Condensing Unit + Air Handler)

KeplerX 460V 3-Phase R32 Heat Pump Package (Condensing Unit + Air Handler)

The KeplerX 460V 3-Phase R32 Heat Pump Package combines the durable, high-performance KeplerX Condensing Unit with the perfectly matched KeplerX Air Handler to deliver powerful, efficient, and reliable heating and cooling for commercial and large residential applications. Designed for continuous operation and ease of installation, this package uses eco-friendly R32 refrigerant and advanced inverter technology to ensure precise temperature control and energy savings year-round.

⚡ Power Supply
Voltage / Phase / Frequency: 460V / 3Ph / 60Hz

❄️ Cooling & Heating Performance
Cooling Capacity: 36,000 – 120,000 Btu/h
Heating Capacity: 38,000 – 125,000 Btu/h
EER2: 9.0 – 10.5 Btu/W
COP: 1.8 – 2.2
Refrigerant: R32 (Low-GWP, High-Efficiency)

🌡️ Operating Range
Cooling: 5°F – 122°F (–15°C – 50°C)
Heating: –4°F – 75°F (–20°C – 24°C)

🔌 Electrical Ratings
MCA: 12 – 26 A
MOP: 20 – 40 A
Voltage Range: 414 – 506 V

🔧 Compressor (Condensing Unit)

• Type: DC Inverter Scroll

• Brand: GMCC / Panasonic (model-dependent)

• Rated Power Input: 2.5 – 7.5 kW

• Inverter-driven for variable capacity control

• Integrated protection for high-pressure, low-pressure, and overload conditions

💨 Air Handler Specifications

• ECM Variable-Speed Blower Motor

• All-aluminum coil for corrosion resistance

• Multi-position configuration (upflow, horizontal left/right)

• Factory-installed TXV for precise refrigerant control

• Foil-faced insulation for quiet operation

• Airflow: 1,200 – 3,600 CFM

• Static Pressure: up to 0.8 in.w.g.

• Noise Level (H/L): 42 – 58 dB(A)

🧊 Refrigerant System

• Refrigerant Type: R32

• Charge Volume: 3,000 – 6,000 g (106 – 212 oz)

• Additional Charge: 30 g/m (0.32 oz/ft)

• Max Suction Pressure: 1.2 MPa

• Max Discharge Pressure: 4.5 MPa

🔩 Refrigerant Piping

• Liquid Line: Φ3/8" – Φ1/2"

• Gas Line: Φ3/4" – Φ1-1/8"

• Max Line Length: 246 ft (75 m)

• Max Elevation Difference: 98 ft (30 m)

📏 Dimensions (W×D×H)
Condensing Unit:
3T – 5T: 965×400×810 mm (38×15.7×31.9 in)
8T – 10T: 1100×500×1300 mm (43×19.7×51.2 in)

Air Handler:
3T – 5T: 534×534×1245 mm (21×21×49.2 in)
8T – 10T: 622×534×1346 mm (24.5×21×53 in)

⚖️ Weight
Condensing Unit: 150 – 275 lbs
Air Handler: 140 – 240 lbs

🔈 Sound Pressure
Condensing Unit: 56 – 64 dB(A)
Air Handler: 42 – 58 dB(A)

🚢 Shipping (per STD 40HQ)
Condensing Units: 45 – 80 sets
Air Handlers: 65 – 120 sets
