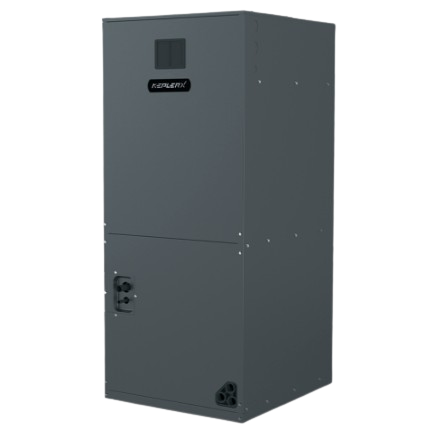

KeplerX 460V 3Phase R32 Air Handler
KeplerX 460V 3Phase R32 Air Handler is backordered and will ship as soon as it is back in stock.
KeplerX 460V 3Phase R32 Air Handler
Model: K15HVC60W4H
Capacity: 5.0 Tons
Certification: AHRI & ETL Listed
The KeplerX K15HVC60W4H is a 5 Ton Indoor Air Handler designed for use with the 460V/3Phase KeplerX R32 Condensing Unit. This cooling-only system combines a high-efficiency ECM fan motor, hydrophilic aluminum fin coil, and inner-grooved copper tubing to deliver consistent performance and long-lasting reliability for commercial and light industrial HVAC applications.
⚙️ Performance Specifications
| Specification | K15HVC60W4H |
|---|---|
| Cooling Capacity (BTU/h) | 55,000 |
| Power Supply | 277V / 1Ph / 60Hz |
| Indoor External Static Pressure | 145 Pa |
| Throttle Type | Orifice |
This high-efficiency indoor unit provides reliable air distribution with steady cooling output for matched KeplerX outdoor systems.
🌬️ Indoor Coil
| Specification | K15HVC60W4H |
|---|---|
| Number of Row | 5 (row) × 2 (piece) |
| Tube Pitch (a × b) | 0.83" × 0.53" |
| Fin Spacing | 1/17 in |
| Fin Material | Hydrophilic Aluminum Fin |
| Tube Outside Diameter | Ø7 mm |
| Tube Type | Inner Grooved |
| Coil Dimensions (L×H×W) | 19.84" × 21.5" × 2.63" |
| Number of Circuits | 12 |
The hydrophilic aluminum fin design promotes efficient heat exchange and condensate drainage, ensuring stable cooling performance and reduced maintenance.
⚡ Indoor Fan Motor
| Specification | K15HVC60W4H |
|---|---|
| Brand | Broad-Ocean / GMCC |
| Type | ECM |
| Input | 473 W |
| Output | 560 W |
| Full Load Amps (FLA) | 3.3 A |
| Speed | 895 / 920 / 965 / 1010 / 1065 RPM |
The ECM motor ensures efficient, quiet operation and optimized airflow control, reducing power consumption while maintaining high static pressure capability.
💨 Blower & Airflow
| Specification | K15HVC60W4H |
|---|---|
| Blower Diameter × Width | 11" × 11" |
| Indoor Air Flow | 1600 CFM |
| Indoor Sound Pressure Level | 46–57 dB(A) |
Engineered with precision-balanced blowers and multi-speed control for quiet, efficient air delivery.
📏 Dimensions & Weights
| Specification | K15HVC60W4H |
|---|---|
| Unit Dimensions (W×D×H) | 22" × 24-1/2" × 53-1/8" (560×623×1350 mm) |
| Packing Dimensions (W×D×H) | 25-1/5" × 27-3/4" × 54-9/10" (640×705×1395 mm) |
| Net / Gross Weight | 172 / 185 lbs (78 / 84 kg) |
Compact and service-friendly, this air handler is easy to install and maintain in tight mechanical spaces.
❄️ Refrigerant Piping
| Specification | K15HVC60W4H |
|---|---|
| Refrigerant Type | R32 |
| Liquid Line | 3/8" |
| Gas Line | 7/8" |
Compatible with KeplerX R32 condensing units for optimal system performance and low environmental impact.
🚛 Shipping & Logistics
| Container Type | Units per Container |
|---|---|
| STD 20GP / 40GP / 40HQ | 27 / 54 / 54 |
💡 Key Advantages
-
5.0 Ton cooling capacity for 460V/3Ph KeplerX R32 systems
-
ECM motor for high efficiency and quiet operation
-
Hydrophilic aluminum fin coil for enhanced heat transfer
-
Compact, durable cabinet for easy installation and service
-
Certified by AHRI & ETL for performance and safety
