KeplerX Cooling Only Top Discharge R407C Dry Unit Series

KeplerX Cooling Only Top Discharge R407C Dry Unit Series

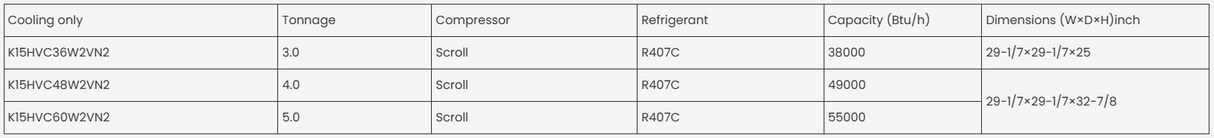

The KeplerX R407C Top Discharge Condensing Units are engineered for reliable, high-efficiency cooling performance. Available in 3-ton, 4-ton, and 5-ton models, these ETL-certified dry units are ideal for residential and light commercial applications.

⚡ Power Supply

• Voltage / Phase / Frequency: 208–230V / 1PH / 60Hz

❄️ Cooling Performance

• Capacity: 38,000 – 55,000 Btu/h

• Input Power: 3,248 – 4,701 W

• Max Input Consumption: 4,608 – 6,570 W

• Max Current: 23.75 – 33.53 A

🔧 Compressor

• Brand: INVOTECH

• Type: Scroll

• Models: YBH89T3-108 / YBH119T3-108 / YBH128T3-108

• Capacity: 32,716 – 46,309 Btu/h

• Rated Current (RLA): 20.91 – 27.60 A

• Locked Rotor Amps (LRA): 109 – 140 A

• Refrigerant Oil: POE, 1,250–1,450 ml

🌬️ Outdoor Fan Motor

• Brand: GREEN-INTELLIGENCE

• Type: AC Motor

• Input Power: 197 – 370 W

• Output Power: 110 – 230 W

• Speed: 850 – 1,050 rpm

• Capacitor: 6–12 μF

🌀 Outdoor Coil

• Fin Material: Hydrophilic Aluminum

• Tube Type: Inner Grooved (Φ7 mm)

• Configuration: 2-row, 6–10 circuit design

• Fin Spacing: 1/18 in

• Coil Dimensions:

  • 3 Ton: 83.8 × 23.15 × 1.05 in

  • 4 & 5 Ton: 83.8 × 31.48 × 1.05 in

💨 Air Flow & Sound

• Air Flow: 2,750 – 4,000 CFM

• Sound Pressure Level: 62 – 65 dB(A)

📏 Dimensions & Weight

• Unit (W×D×H):

  • 3 Ton: 29-1/7″×29-1/7″×25″

  • 4 & 5 Ton: 29-1/7″×29-1/7″×32-7/8″

• Packing Size: 30-1/2″×30-1/2″×26–34″

• Net Weight: 182–218 lbs

🧊 Refrigerant

• Type: R407C

• Charge Volume: 106–141 oz

🔩 Refrigerant Piping

• Liquid Line: Φ3/8″

• Gas Line: Φ3/4″ – Φ7/8″

• Max Pipe Length: 148 ft

• Max Elevation Difference: 66 ft

🌡️ Operating Temperature

• Cooling Range: 61°F – 118°F

• Heating: N/A

🚢 Shipping (per STD 20/40/40HQ)

• 3 Ton: 63 / 135 / 180

• 4 Ton: 42 / 90 / 135

• 5 Ton: 42 / 90 / 135
