Stiebel Eltron SHC 2.5 Mini-Tank Electric Water Heaters
Stiebel Eltron SHC 2.5 Mini-Tank Electric Water Heaters is backordered and will ship as soon as it is back in stock.
⭐SHC saves space
An SHC mini-tank frees up precious space while providing plenty of hot water for hand washing or kitchen applications. Why store 30 or more gallons of hot water when 6, 4, or even 2.5 gallons are sufficient?
SHC mini-tanks are suitable for use as a standalone hot water source for a sink(s), as a booster for a long pipe run from a remote hot water source, or in a recirculation loop.
⭐ Key Benefits
- Plugs into standard 120 Volt outlet
- 6-year warranty on tank against leakage
- T & P valve included
- Wall-mounted with included bracket
- Brass plumbing connections
- Glass-lined tank
- Stainless steel dip tube
- Fast recovery
- Lowest stand-by losses in the industry
- 2.5, 4, & 6-gallon models
⭐Installation is quick

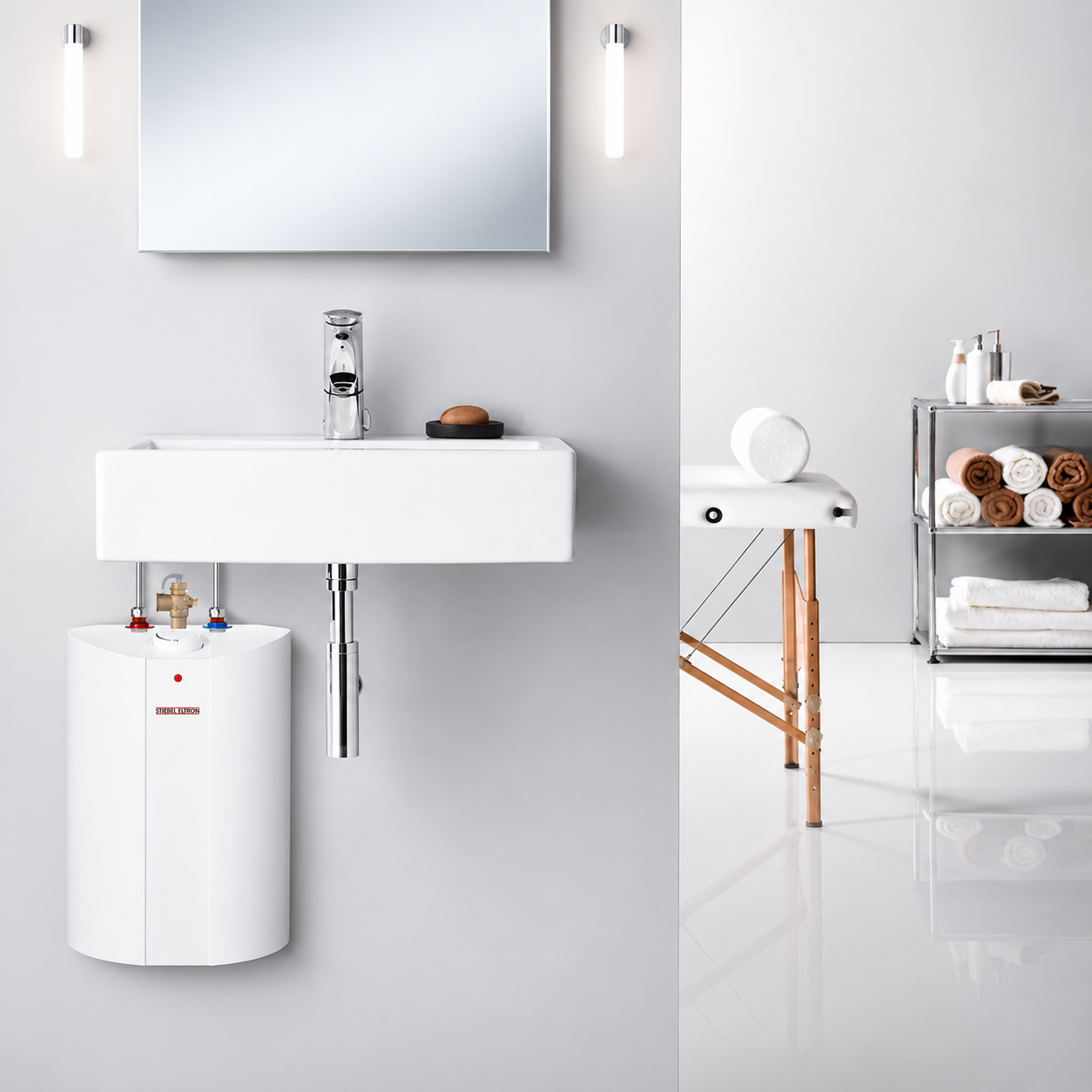

With its flat back and included bracket an SHC easily mounts right under or near the sink. Once filled with water it simply plugs into a 120 V outlet. With only an 11 amp current draw, no special wiring is required. Lightweight and compact, the SHC saves space, quickly provides hot water right where it is needed.
| Specification | SHC 2.5 | SHC 4 | SHC 6 |
|---|---|---|---|
| Item Number | 233219 | 234046 | 235089 |
| Phase | Single Phase, 60/50 Hz | ||
| Voltage | 120 V | ||
| Wattage | 1300 W | ||
| Amperage | 11.3 A | ||
| Electrical Connection | Plugs into 120 V receptacle with supplied cord (43" long) | ||
| Water Connections | Brass ½" NPT | ||
| Nominal Water Volume | 2.65 gal (10 L) | 4.0 gal (15 L) | 6.0 gal (22.7 L) |
| Weight Empty | 15.9 lb (7.2 kg) | 19.8 lb (9.0 kg) | 26.5 lb (12.0 kg) |
| Weight Full | 38.6 lb (17.5 kg) | 52.9 lb (24.0 kg) | 76.3 lb (34.6 kg) |
| Height (includes P&T valve) | 18 11/16" (475 mm) | 19 3/4" (501 mm) | 20 1/2" (520 mm) |
| Width | 11" (280 mm) | 12 5/8" (320 mm) | 15 1/8" (385 mm) |
| Depth | 10 5/8" (270 mm) | 12 1/2" (318 mm) | 15" (380 mm) |
| Maximum Operating Pressure | 150 psi (10 bar) | ||
| Adjustable Temperature Range | 86°F – 140°F (30°C – 60°C) | ||
| Recovery Time | 18 minutes | 27 minutes | 45 minutes |
| Standby Energy Loss @ 131°F (55°C) | 0.37 kWh/day | 0.39 kWh/day | 0.43 kWh/day |
Warranty:
Technical Documents:
